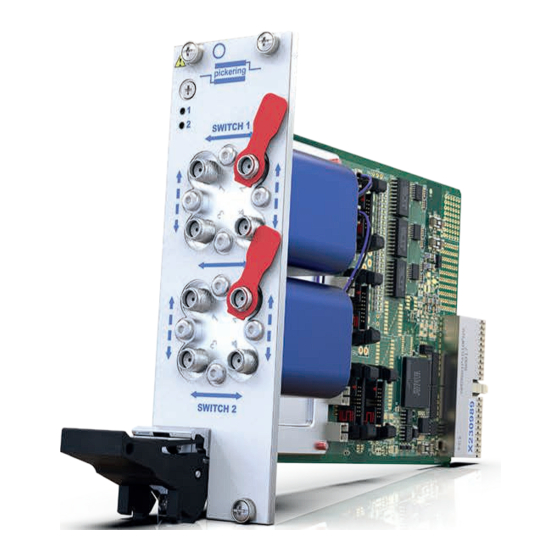

Pickering 4 782B Series User Manual

Pxi/pxie microwave transfer switch module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

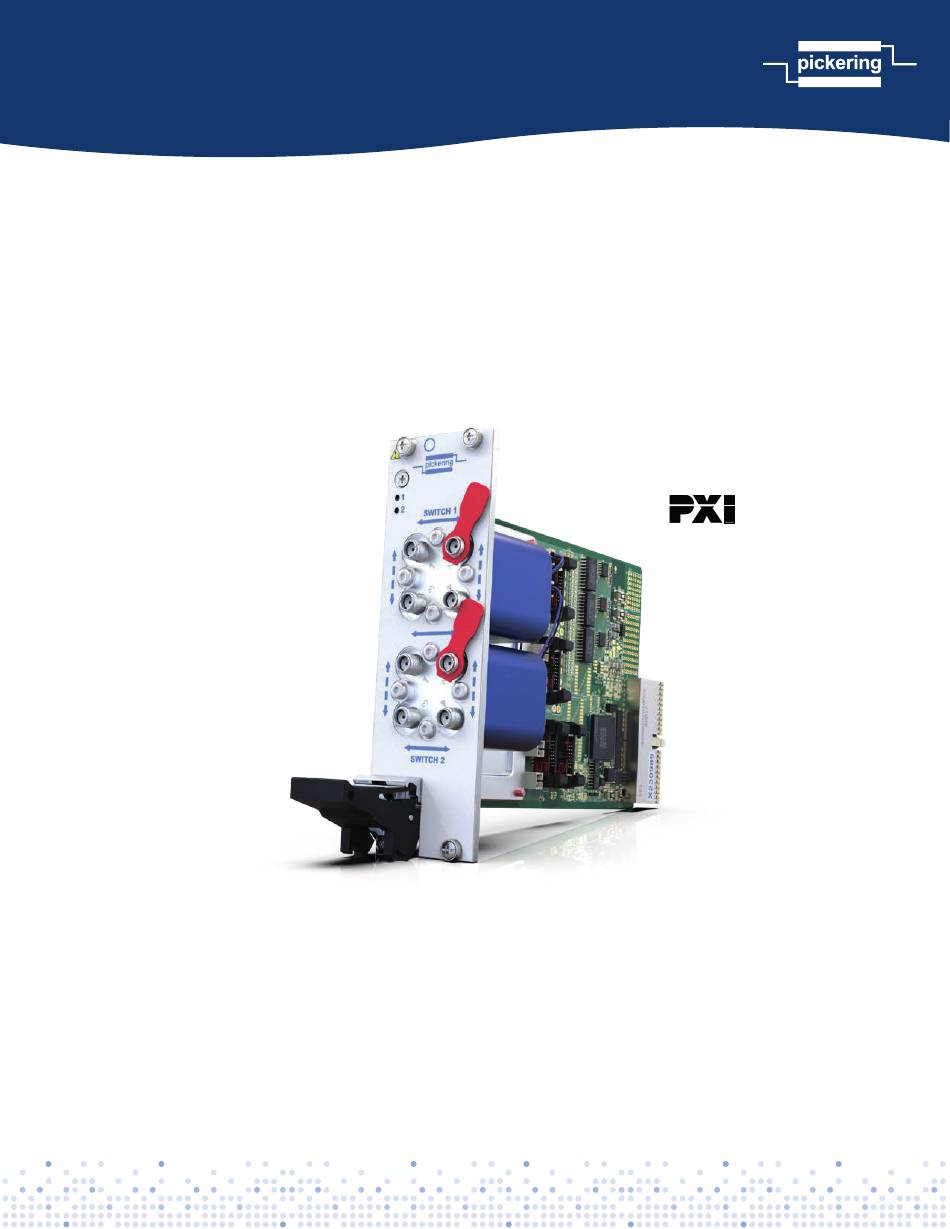

4x-782B User Manual
PXI/PXIe Microwave Transfer Switch Module
pickeringtest.com
Issue 3.0, September 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 782B Series and is the answer not in the manual?

Questions and answers

Related Manuals for Pickering 4 782B Series

Summary of Contents for Pickering 4 782B Series

  • Page 1 4x-782B User Manual PXI/PXIe Microwave Transfer Switch Module pickeringtest.com Issue 3.0, September 2023...
  • Page 2 © Copyright (2023) Pickering Interfaces. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

  • Page 4: Product Safety

    Product Safety Safety Symbols The following safety symbols may be used on the product and throughout the product documentation. Meaning/Description Symbol PROTECTIVE EARTH (GROUND) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth (ground) electrode.

  • Page 5: Table Of Contents

    Pre Operation Checks ..............................3.1 Hardware Installation ..............................3.2 Software Installation ..............................3.2 Testing Operation ................................3.3 Section 4 Programming Guide .................................4.1 Programming Options for Pickering PXI/PXIe Modules ..................4.1 Module Architecture ..............................4.2 Programming the Module ............................4.3 Using Pickering Drivers in LabVIEW ........................4.5 Section 5 Connector Information ..............................5.1 Section 6 Trouble Shooting ................................6.1...

  • Page 6: Warnings And Cautions

    Unused slots in the PXI/PXIe/LXI chassis are populated with blanking plates to prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering in a variety of slot widths. If the product is not used in this manner for example by using an extender card then additional care must be taken to avoid contact with exposed signals.
  • Page 7 Position B: 1 to 3, 2 to 4 The 4x-782B gives you the highest RF and microwave Microwave Transfer Switch switching performance available within a Pickering switching (Part No. 4x-782B) in Single Format system. Although designed for microwave applications, they have many uses in the RF spectrum where extremely low insertion loss and ultra high isolation are critical.
  • Page 8 40/42-782B pickering Remote Remotely Mounted Microwave Transfer Switch Versions Version 2 off Interface Cables 1.5m Length...
  • Page 9 Specifications 4x-782B Section 1 - Technical Specification Specifications - 18 GHz & 26.5 GHz Versions Connectors: Insertion Loss: <0.2 dB to 3 GHz <0.3 dB to 8 GHz <0.4 dB to 12.4 GHz <0.5 dB to 18 GHz <0.7 dB to 26.5 GHz (26.5 GHz versions only) Isolation: >80 dB to 3 GHz Typical Insertion Loss - 26.5 GHz Versions...
  • Page 10 Specifications 4x-782B Section 1 - Technical Specification Specifications - 40 GHz Versions Connectors: SMA 2.9 Insertion Loss: <0.8 dB to 40 GHz Isolation: >50 dB to 40 GHz VSWR: <1.9:1 to 40 GHz RF Average Carry Power at 25°C: 80 W to 6 GHz 60 W to 12.4 GHz 50 W to 18 GHz Typical Insertion Loss - 40 GHz Versions...
  • Page 11 Specifications 4x-782B Section 1 - Technical Specification Specifications - 50 GHz Versions Connectors: SMA 2.4 Insertion Loss: <0.3 dB to 6 GHz <0.4 dB to 12.4 GHz <0.5 dB to 18 GHz <0.7 dB to 26.5 GHz <0.8 dB to 40 GHz <1.1 dB to 50 GHz Isolation: >70 dB to 6 GHz...
  • Page 12 Specifications 4x-782B Section 1 - Technical Specification General Specification Mechanical Characteristics Front panel mounted switches: Configuration: Microwave Transfer Switch, 1 or 2 independent banks • 40-782B single & dual panel mounted versions mounted on the module’s - Dual slot 3U PXI (CompactPCI card) front panel or remotely •...
  • Page 13 Ordering Information 4x-782B Section 1 - Technical Specification Product Order Codes - Failsafe Versions - Panel Mount 18 GHz (SMA) 26.5 GHz (SMA) 40 GHz (SMA 2.9) 50 GHz (SMA 2.4) PXI Microwave Transfer Switch 40-782B-521 40-782B-531 40-782B-541 40-782B-551 Single Failsafe PXIe Microwave Transfer Switch 42-782B-521...
  • Page 14 Side View of the PXI Dual Microwave Transfer Switch Product Customization Pickering modules are designed and manufactured on our own flexible manufacturing lines, giving complete product control and enabling simple customization to meet very specific requirements. Customization can include: • Alternative relay types •...
  • Page 15 PXI/PXIe Microwave Transfer Switch Modules 4x-782B Section 1 - Technical Specification The 4x-782B is part of a range of switching modules suitable for RF and microwave applications. Pickering’s Range of PXI & PXIe Microwave Switching Modules Switch Type Banks Frequency Range Model No.

  • Page 16: Functional Description

    Section 2 - Technical Description Functional Description A functional block diagram is provided in Figure 2.1. The module is powered by +5V (PXI), +3.3V and +12V supplies via PCI Bus connectors mounted on the mother board. The interface to the user test equipment is via the front panel mounted SMA, SMA-2.9 or SMA-2.4 connectors.

  • Page 17: Installation

    Modular products require installation in a suitable PXI/PXIe/LXI chassis. The module is designed for indoor use only. Pre-operation Checks (Unpacking) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.

  • Page 18: Hardware Installation

    If you are not a LabVIEW user you should choose the “full” version, and once that has been installed run the LabVIEW Runtime Engine installer via the shortcut on the Programs>>Pickering menu. In the absence of LabVIEW the Runtime Engine is required to support the Pickering Test Panels application.

  • Page 19: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI/PXIe or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card. Panels can be opened simultaneously for all the installed cards.
  • Page 20 Section 4 - Programming Programming options for Pickering Interfaces PXI/PXIe Modules For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: pickeringtest.com/support/software-drivers-and-downloads...

  • Page 21: Module Architecture

    Section 4 - Programming Module Architecture The 40/42-782B module is a single or dual microwave transfer switch with the number of switches and maximum frequency handling dependent upon the product order code. They are available in either failsafe or latching versions. The contacts of failsafe relays return to the default state when the system power is removed whereas latching relay contacts retain their last set state when the power is removed.

  • Page 22: Programming The Module

    Section 4 - Programming Programming the Module Here are some simple examples of using the drivers with the 40/42-782B dual changeover relay module. Using PILPXI To operate a relay the user could use the simple OpBit command or the WriteSub commands OpBit DWORD sub_unit = 1;...
  • Page 23 Section 4 - Programming Using pi40iv The IVI driver treats each switch as a unit and labels the channels using com/no or com/nc labelling tags. pi40iv_Connect(vi, “com1”, “no1”); // Operates Switch 1 (Connects 1-3 and 2-4) pi40iv_Disconnect(vi, “com1”, “no1”); // Releases Switch 1 (Connects 1-2 and 3-4) // This is required by IVI, “com1”...

  • Page 24: Using Pickering Drivers In Labview

    Section 4 - Programming Using Pickering Drivers In LabVIEW Most Pickering drivers include a LabVIEW wrapper to permit full operation of the Pickering product from the LabVIEW environment. These wrappers are normally installed to the current LabVIEW folder system during installation of the Pickering driver.
  • Page 25 Section 5 - Connectors pickering Switch 1 SWITCH 1 Default Position: 1 to 2, 3 to 4 Energized Position: 1 to 3, 2 to 4 Applicable Part Numbers Connector Module Part No. Frequency Type 40/42-782B-521 (Failsafe) 18GHz 40/42-782B-521-LA (Latching) 18GHz 40/42-782B-531 (Failsafe) 26.5GHz...
  • Page 26 Section 5 - Connectors Switch 1 pickering Switch 1 Switch 2 SWITCH 1 Default Position: 1 to 2, 3 to 4 Default Position: 1 to 2, 3 to 4 Energized Position: 1 to 3, 2 to 4 Energized Position: 1 to 3, 2 to 4...
  • Page 27 Section 5 - Connectors pickering pickering pickering Applicable Part Numbers Connector Module Part No. Frequency Type 40/42-782B-521-E (Failsafe) 18GHz 40/42-782B-521-E-LA (Latching) 18GHz 40/42-782B-531-E (Failsafe) 26.5GHz 40/42-782B-531-E-LA (Latching) 26.5GHz 40/42-782B-541-E (Failsafe) 40GHz SMA-2.9 40/42-782B-541-E-LA (Latching) 40GHz SMA-2.9 40/42-782B-551-E (Failsafe) 50GHz SMA-2.4...
  • Page 28 Section 5 - Connectors pickering pickering pickering Applicable Part Numbers Connector Module Part No. Frequency Type 40/42-782B-522-E (Failsafe) 18GHz 40/42-782B-522-E-LA (Latching) 18GHz 40/42-782B-532-E (Failsafe) 26.5GHz 40/42-782B-532-E-LA (Latching) 26.5GHz 40/42-782B-542-E (Failsafe) 40GHz SMA-2.9 40/42-782B-542-E-LA (Latching) 40GHz SMA-2.9 40/42-782B-552-E (Failsafe) 50GHz SMA-2.4...

  • Page 29: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the support@pickeringtest.com...

  • Page 30: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
