40-183A User Manual
PXI 30A Solid State SPST Switch
pickeringtest.com
Issue 1.1 November 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-183A and is the answer not in the manual?

Questions and answers

Summary of Contents for Pickering 40-183A

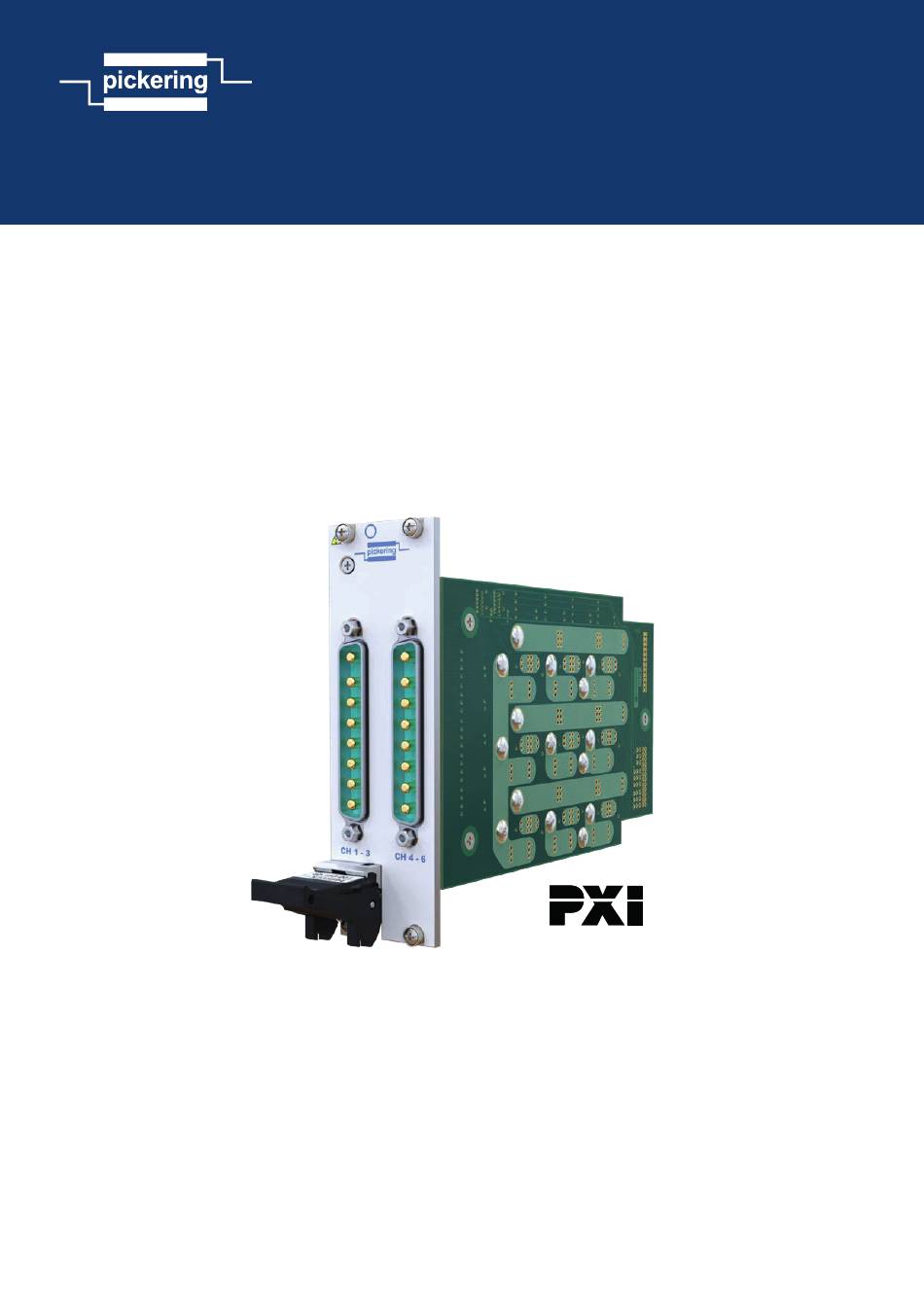

  • Page 1 40-183A User Manual PXI 30A Solid State SPST Switch pickeringtest.com Issue 1.1 November 2021...
  • Page 2 © COPYRIGHT (2021) PICKERING INTERFACES. ALL RIGHTS RESERVED. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any means without the written permission of Pickering Interfaces. Technical details contained within this publication are subject to change without notice.
  • Page 3 Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.
  • Page 4: Product Safety

    If this product is heavy reference should be made to the safety instructions for provisions of lifting and moving. STATIC SENSITIVE To indicate that static sensitive devices are present and handling precautions should be followed. REED RELAY MODULE 40-110/115/120/125 30A SOLID STATE SPST SWITCH 40-183A Page (IV) Page (IV)
  • Page 5: Table Of Contents

    Pre Operation Checks ............3.1 Hardware Installation ............3.2 Software Installation .............3.2 Testing Operation ..............3.3 Section 4 Programming Guide ..............4.1 Programming Options For Pickering PXI Modules ....4.1 Module Architecture ..............4.2 Programming The Module ............4.3 Section 5 Connector Information ..............5.1 Section 6 Trouble Shooting .................6.1 Section 7 Maintenance Information ............7.1...
  • Page 6 THIS PAGE INTENTIONALLY BLANK 30A SOLID STATE SPST SWITCH 40-183A Page (VI)
  • Page 7: Warnings And Cautions

    Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale. This module must not be used for the switching of Mains Circuits. For the switching of voltages up to the module’s full specification, Secondary Circuit power supplies and the Device Under Test must...
  • Page 8 • For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the front of the unit. 30A SOLID STATE SPST SWITCH 40-183A Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579...
  • Page 9: Technical Specification

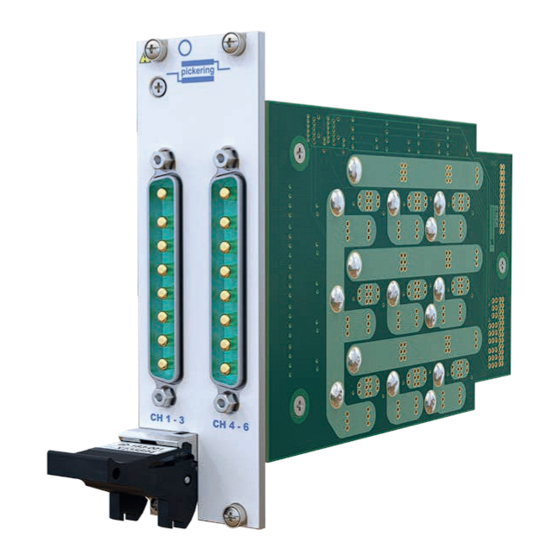

    Supported by PXI or LXI Chassis y Supported by eBIRST ™ y 3 Year Warranty The 40-183A has 6 off high current SPST switches in two PXI slots. Each SPST switch uses a fully isolated solid state relay which offers fast operation under hot switching conditions and high inrush current with no operational life degradation.
  • Page 10 30 A Solid State SPST Switch, 40-183A Mechanical Characteristics Relay Type Double slot 3U PXI (CompactPCI card). The 40-183A is fitted with solid state MOSFET switches. 3D models for all versions in a variety of popular file Switching Specification formats are available on request.
  • Page 11 30 A Solid State SPST Switch, 40-183A Support Products Product Order Codes eBIRST Switching System Test Tool 6-Channel 30 A Solid State SPST Switch 40-183A-011 This product is supported by the eBIRST test tools which Product Customization simplify the identification of failed relays, the required Pickering modules are designed and manufactured on our eBIRST tools are below.
  • Page 12 We provide a full range of supporting cable and connector solutions for all our switching products—20 connector families with 1200+ products. We offer everything from simple mating connectors to complex cables assemblies and terminal blocks. All assemblies are manufactured by Pickering and are guaranteed to mechanically and electrically mate to our modules. Connectors & Backshells...
  • Page 13 30 A Solid State SPST Switch, 40-183A Programming Pickering provide kernel, IVI and VISA (NI & Keysight) drivers which are compatible with all Microsoft supported versions of Windows and popular older versions. For a list of all supporting operating systems, please see: pickeringtest.com/os...
  • Page 14 SECTION 1 - TECHNICAL SPECIFICATION pickering THIS PAGE INTENTIONALLY BLANK 30A SOLID STATE SPST SWITCH 40-183A Page 1.6...
  • Page 15: Functional Description

    DRIVERS U19 & U20 +3.3V PCI BRIDGE CONFIGURATION Channel 1 Channel 2 Channel 3 Figure 2.1 - 30A Solid State SPST Switch Channel 4 40-183A-011: Functional Block Diagram Channel 5 Channel 6 30A SOLID STATE SPST SWITCH 40-183A Page 2.1...
  • Page 16 SECTION 2 - TECHNICAL DESCRIPTION pickering THIS PAGE INTENTIONALLY BLANK 30A SOLID STATE SPST SWITCH 40-183A Page 2.2...
  • Page 17: Installation

    Modular products require installation in a suitable PXI/LXI chassis. The module is designed for indoor use only. PREOPERATION CHECKS (UNPACKING) 1. Check the module for transport damage and report any damage immediately to Pickering Interfaces. Do not attempt to install the product if any damage is evident.
  • Page 18: Hardware Installation

    For a system comprising more than one chassis, turn ON the last chassis in the system followed by the penultimate, etc, and finally turn ON the external controller or chassis containing the system controller. 9. For Pickering Interfaces modular LXI installation there is no requirement to use any particular power up sequence.
  • Page 19: Testing Operation

    Figure 3.2 - General Soft Front Panel Icon A selector panel will appear, listing all installed Pickering PCI, PXI or LXI switch cards and resistor cards. Click on the card you wish to control, and a graphical control panel is presented allowing operation of the card.
  • Page 20 SECTION 3 - INSTALLATION pickering THIS PAGE INTENTIONALLY BLANK 30A SOLID STATE SPST SWITCH 40-183A Page 3.4...
  • Page 21: Programming Guide

    SECTION 4 - PROGRAMMING GUIDE PROGRAMMING OPTIONS FOR PICKERING INTERFACES PXI MODULES For information on the installation and use of drivers and the programming of Pickering’s products in various software environments, please refer to the Software User Manual. This is available as a download from: https://www.pickeringtest.com/support/software-drivers-and-downloads...
  • Page 22: Module Architecture

    MODULE ARCHITECTURE The 40-183A-011 module is an array of 6 uncommitted SPST relays. In their default state, all signal paths are open circuit. Energising a particular relay creates a signal path between the C and A terminals. The relay module’s...
  • Page 23: Programming The Module

    SECTION 4 - PROGRAMMING GUIDE pickering PROGRAMMING THE MODULE Here are examples of using the drivers with the 40-183A Using PILPXI To operate a relay the user could use the simple OpBit command or the WriteSub commands OpBit DWORD sub_unit = 1;...
  • Page 24 SECTION 4 - PROGRAMMING GUIDE pickering THIS PAGE INTENTIONALLY BLANK 30A SOLID STATE SPST SWITCH 40-183A Page 4.4...
  • Page 25 SECTION 5 - CONNECTOR INFORMATION pickering SECTION 5 - CONNECTOR INFORMATION pickering CH1-3 CH4-6 Figure 5.1 - 6 x Solid State SPST Switch 40-183A-011: Pinouts Viewed From Front Panel, Connectors are 8-pin Power D-type Plugs. 30A SOLID STATE SPST SWITCH 40-183A Page 5.1...
  • Page 26 SECTION 5 - CONNECTOR INFORMATION pickering THIS PAGE INTENTIONALLY BLANK 30A SOLID STATE SPST SWITCH 40-183A Page 5.2...
  • Page 27: Trouble Shooting

    PCI configuration, highlighting any potential configuration problems. Specific details of all installed Pickering switch cards are included. All the installed Pickering switch cards should be listed in the “Pilpxi information” section - if one or more cards is missing it may be possible to determine the reason by referring to the PCI configuration dump contained in the report, but interpretation of this information is far from straightforward, and the best course is to contact Pickering support: support@pickeringtest.com, if possible...
  • Page 28 SECTION 6 - TROUBLE SHOOTING pickering THIS PAGE INTENTIONALLY BLANK 30A SOLID STATE SPST SWITCH 40-183A Page 6.2...
  • Page 29: Maintenance Information

    For PXI modules which are supported in one of Pickering Interfaces’ Modular LXI Chassis (such as the 60-102B and 60-103B) no module software update is required. If the module was introduced after the LXI chassis was manufactured the module may not be recognized, in this case the chassis firmware may need upgrading.
  • Page 30 A2 to C2 Inner U7 & U8 A3 to C3 U1 & U2 40-183A-011 A4 to C4 U13 & U14 A5 to C5 Outer U7 & U8 A6 to C6 U1 & U2 30A SOLID STATE SPST SWITCH 40-183A Page 7.2...
  • Page 31 SECTION 7 - MAINTENANCE INFORMATION pickering Figure 7.1 - 40-183A Component Layout - Daughter Board 30A SOLID STATE SPST SWITCH 40-183A Page 7.3...
  • Page 32 SECTION 7 - MAINTENANCE INFORMATION pickering THIS PAGE INTENTIONALLY BLANK 30A SOLID STATE SPST SWITCH 40-183A Page 7.4...
