Magnetic Microphone Docking Plate
The micnode2 page station uses a magnetic docking plate to hold the hand-held microphone. Just place the back of the
microphone up against the plate and let it go!

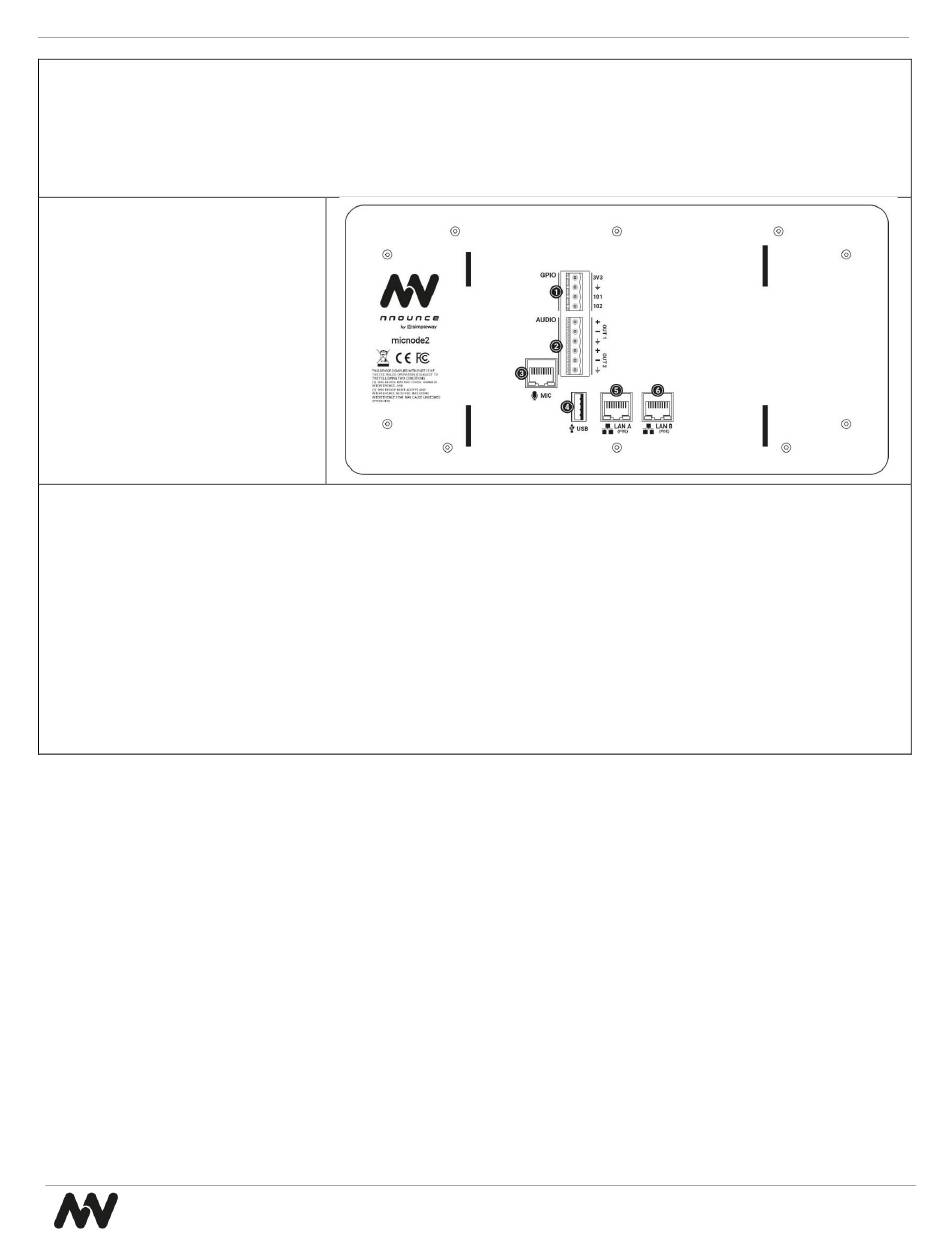

B. Rear panel
Protected GPIO
1.
Balanced audio output
2.
Rear Aux microphone
3.
station input
USB
4.
LAN A, PoE
5.
LAN B, PoE
6.
IMPORTANT: USB port serves only
for recovery purposes.
Power
The LAN cables connect the paging station to the network. This enables audio and data exchange as well as
receiving power from the LAN network via IEEE 802.3af compliant power sourcing equipment (PSE), also
known as Power-over-Ethernet (PoE).
Inputs and outputs
On the rear panel side of the micnode2 paging station, it is possible to connect different devices or accessories
by way of the line level output, e.g. a secondary microphone or an MP3 audio source can be added.
