Simpleway NNOUNCE micnode mini Hardware User's Manual

Compact microphone station
Hide thumbs

Advertisement

Quick Links

Download this manual

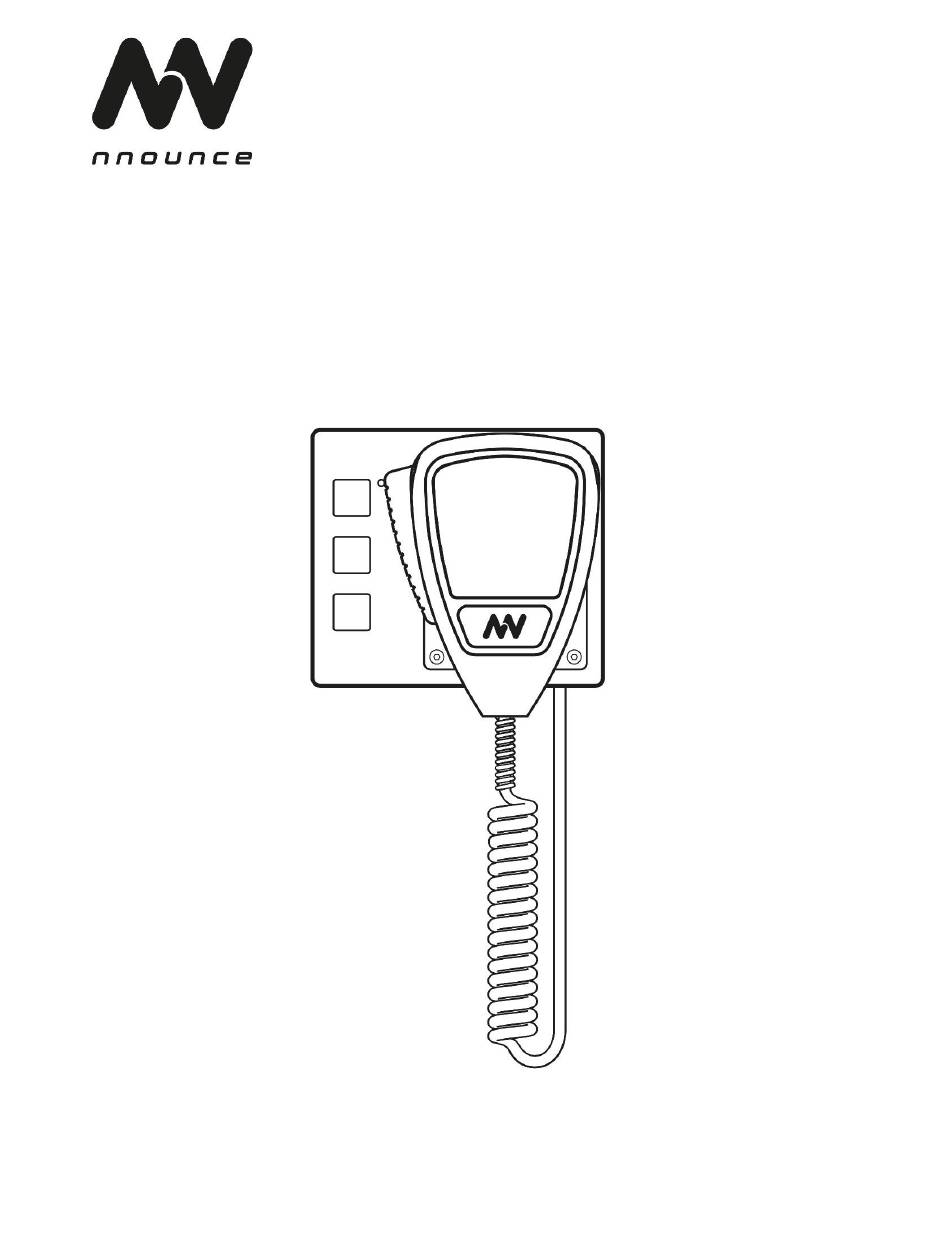

micnode mini – Compact Microphone Station
H
U
G
ARDWARE
SER
UIDE
©nnounce powered by Simpleway
Keep this manual
for future reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the NNOUNCE micnode mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simpleway NNOUNCE micnode mini

Summary of Contents for Simpleway NNOUNCE micnode mini

  • Page 1 – Compact Microphone Station ARDWARE UIDE ©nnounce powered by Simpleway Keep this manual for future reference...
  • Page 2 Do not block any ventilation opening. Install in accordance with the manufacturer's instructions • Desk stand Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. nnounce by Simpleway...
  • Page 3 A. Front panel 1. Zones buttons – 3x 2. Status LED 3. Handheld push-to-talk microphone 4. Button for call activation Note: The Talk/Start button is directly on the microphone. 5. Magnetic docking plate for microphone 6. Microphone cable nnounce by Simpleway...
  • Page 4 The LAN cable connects the microphone station to the network. This enables audio and data exchange as well as receiving power from the LAN network via IEEE 802.3af compliant power sourcing equipment (PSE), also known as Power-over-Ethernet (PoE). nnounce by Simpleway...

  • Page 5: Preliminary Operations

    3. Secure the microphone cable with the clamp for cable fixing with the two screws. 4. Push the cable through the cutout in the chase. Use the magnetic docking plate on the front panel to position the microphone. nnounce by Simpleway...

  • Page 6: Set-Up And Operations

    3. Use a computer with an Internet browser and search for your micnodemini device by typing into the computer URL https://micnode-mini- and the last 6 digits of the MAC address of your device, which you can find on the product sticker of your device. • Example: https://micnode-mini-000000 or https://micnode-mini-000000.local nnounce by Simpleway...

  • Page 7: Interface Settings

    5. Enter credentials into the nnounce configuration user interface. IMPORTANT: Default credentials are admin/simpleway. Change default password upon the first login. Now you are able to access the configuration settings of the device and continue with interface configuration. Interface Settings After login into the nnounce configuration UI, establish a connection between your new micnode mini station and your network.
  • Page 8 Other fields are optional. • Static routes for remote networks that need to be reached via the LAN adapter. • DNS server and Search domains are assigned by the DHCP server. Click on Save changes button to confirm your configuration. nnounce by Simpleway...
  • Page 9 To add your new device to the Q-SYS audio network, it should consist of: • Q-SYS Core and further Q-SYS peripherals, • Windows-based computer for Q-SYS designer network setup, not required for runtime operation, • Gigabit Ethernet Switch with PoE ports. nnounce by Simpleway...
  • Page 10 IMPORTANT: Configuration from the Q-SYS designer is auto populated to the nnounce configuration UI and thus your micnode mini device. 1. nnounce micnode mini plugin for Q-SYS designer can be obtained: a. Q-SYS designer Asset manager, b. nnounce web page in the Download center - https://www.nnounce.com/download-center.
  • Page 11 Default design is applied when no other design is created. • Show Debug – set level of debug mode. • Unit Id – number your device, it is important to assign a unique number, we recommend ascending numbering of your microphone stations. nnounce by Simpleway...
  • Page 12 NOTE: Connection Mode will be selected based on Q-SYS version. Web-Socket with encryption is supported since Q- SYS version 9.8. Zone Buttons Configuration Configure the zone selection buttons by assigning an available zone to the button. IMPORTANT: Buttons are numbered from top to bottom on the device. nnounce by Simpleway...

  • Page 13: Stream Configuration

    Stream Configuration Create an AES67 stream in the Q-SYS designer. Select first the component and then configure it in the micnode mini plugin. 3. Add the transmitter stream component to your Q-SYS design: 4. Set up stream properties: nnounce by Simpleway...
  • Page 14 The Advanced mode lets you set up manually your micnode mini device’s protocols, IP addresses, ports etc. for your streams. 1. Open the Streams Configuration section of your micnode2 plugin. IMPORTANT: No values are auto filled in. nnounce by Simpleway...
  • Page 15 The nnounce configuration UI takes over the streams configuration to Audio Streams section shows the streams as configured in the Q-SYS designer. • TX stream – transmits audio to other devices, output. Example of Audio streams configuration in nnounce configuration UI: nnounce by Simpleway...
  • Page 16 Let go the PTT button, the call is done. Stopped by higher priority Red LED, first 4times blinking and the busy zone Your call was interrupted by an other announcement with higher priority paged in the same zone. nnounce by Simpleway...

  • Page 17: Technical Specifications

    111 mm (W) x 42 mm (D) x 107 mm (H) Dimensions US 2–gang box compatible 400 g without Microphone Mounting kit, Microphone, Desk stand (optional) Accessories CONTACT Simpleway North America Simpleway Europe a.s. Headquarters: Address: Address: 1621 Central Avenue Na Okraji 335/42...
