Network Overview - Simpleway nnounce Micnode2 Hardware User's Manual

•
Q-Sys Core + Q-Sys peripherals
•
Windows-based computer for Q-Sys designer network setup, not required for runtime operation,
•
Gigabit Ethernet Switch with PoE ports.

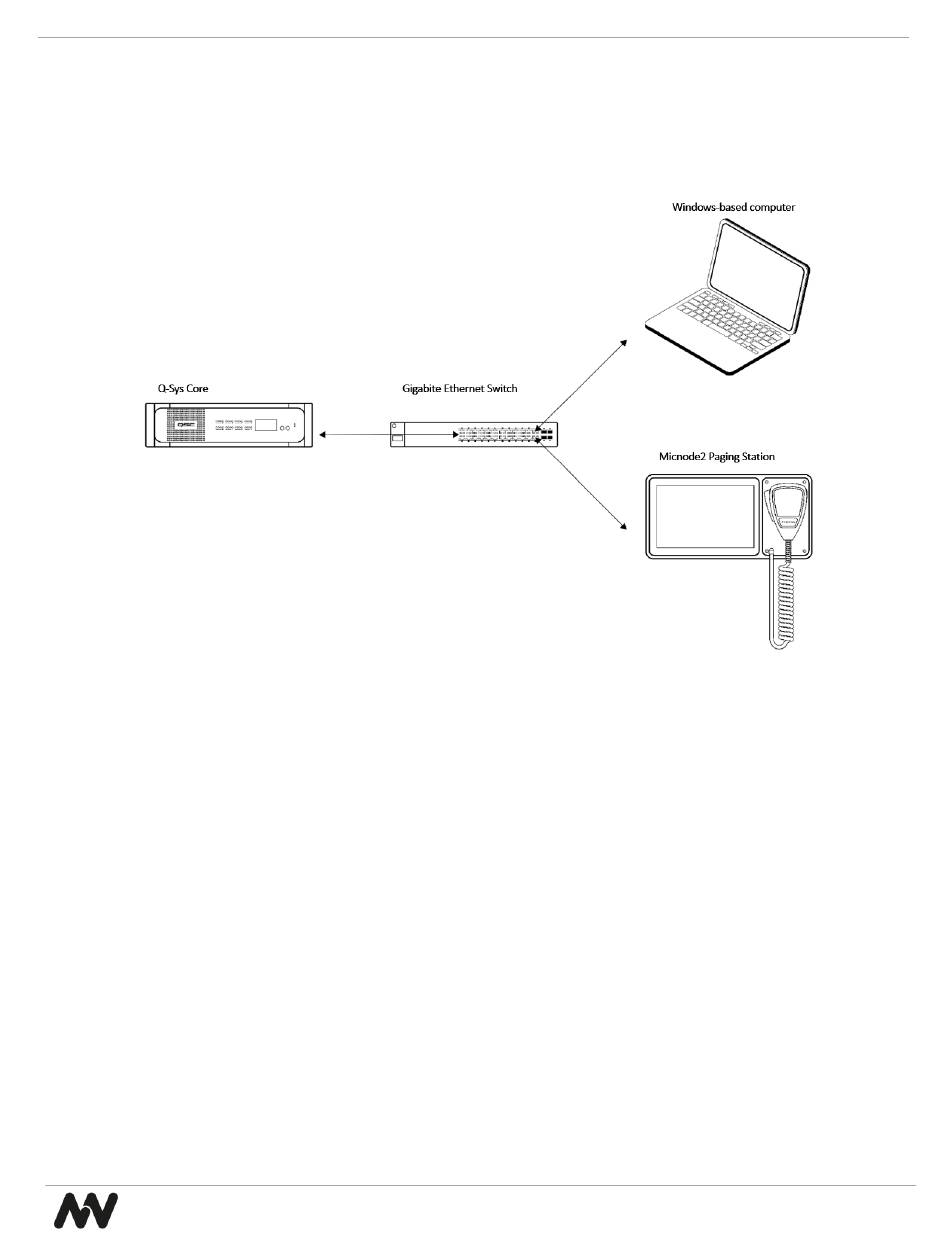

Network overview:

NOTE: Q-Sys Designer version 9.9.0 pictures used in this manual are for illustration purposes only.
User Interfaces
The micnode2 device can be operated with Q-Sys by the user in two ways:
A. Using the built-in paging dashboard,
B. Using an external application webpage (e.g. Q-Sys UCI).
The user interface mode can be configured in the Q-Sys plugin or the administrative interface of the microphone station.
Q-Sys Plugin
To configure the micnode2 paging station, you will need to install the plugin for Q-Sys designer so that you can then set up
the device's properties.
1. Nnounce micnode2 plugin for Q-Sys designer can be obtained:
a. Plugin Q-Sys marketplace
b. Nnounce web download
2. The downloaded file with the plugin needs to be placed on your computer in the folder:
C:\Users\username\Documents\QSC\Q-Sys Designer\Plugins
3. Open your Q-Sys designer.
4. Find the micnode2 plugin in the right panel below and drag and drop it into your design.
