IMPORTANT: To be able to fully configure networks streams network inputs and/or network outputs need to be included in
the DSP design and the DSP design needs to be saved & deployed.

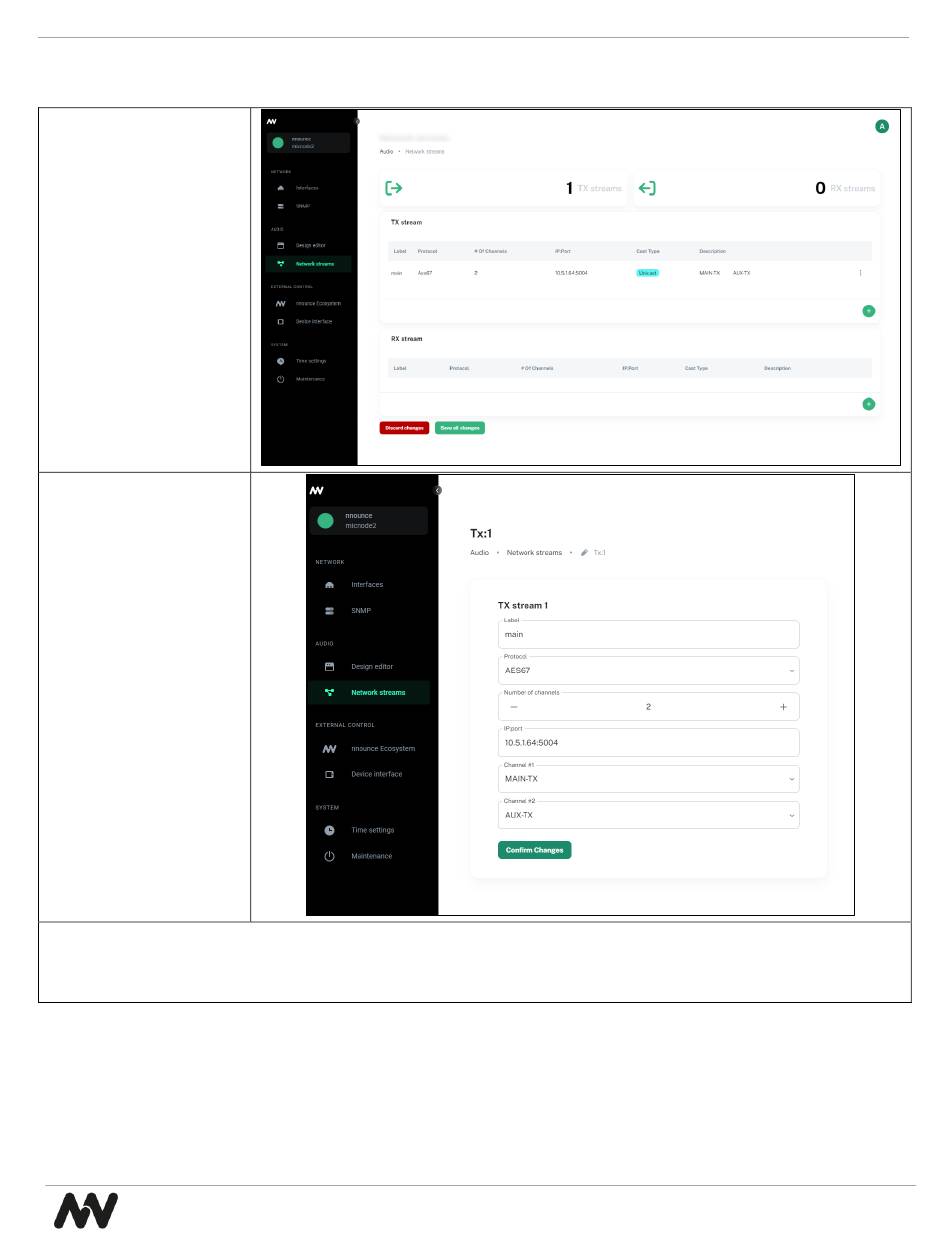

Navigate in the left-hand
A.
Menu to the Network
stream section.
Click on the plus icon for
TX stream.
B. Insert the following
information about the
stream:
• Protocol – select AES67
• Number of channels with
the plus/minus
• IP port of receiver (e.g.
Q-Sys core)
• Individual channels can
be assigned to "Net Tx"
from DSP design.
Click on Confirm Changes
button.
C. Confirm with Save all changes.
Q-SYS ECOSYSTEM INTEGRATION
The micnode2 paging station is connected to the network via a standard ethernet cable. This network consists
of:
