INTRODUCTION
Micnode2 Paging Station is a microphone station with a built-in 8-inch touch screen and customizable
user interface for advanced applications. It is delivered with a handheld microphone. The device is wall-
mounted or can optionally be placed on a desk using the stand accessory. It is built on top of the nnounce
secure and scalable audio platform.
Micnode2 Paging station is an easily integrable network device that can communicate over the network
using all contemporary audio standards such as AES67 or RTP. It connects to the nnounce platform and Q-
Sys audio system over LAN networks.
The device provides paging services such as push-to-talk (PTT) and prerecorded messages for being played
in configured zones. Configuration of the Q-Sys audio system is possible using the Q-Sys designer.
This manual is to be used for providing a product overview of the hardware components and their
functions in the first part, and in the second part installation and configuration instructions.
FEATURES

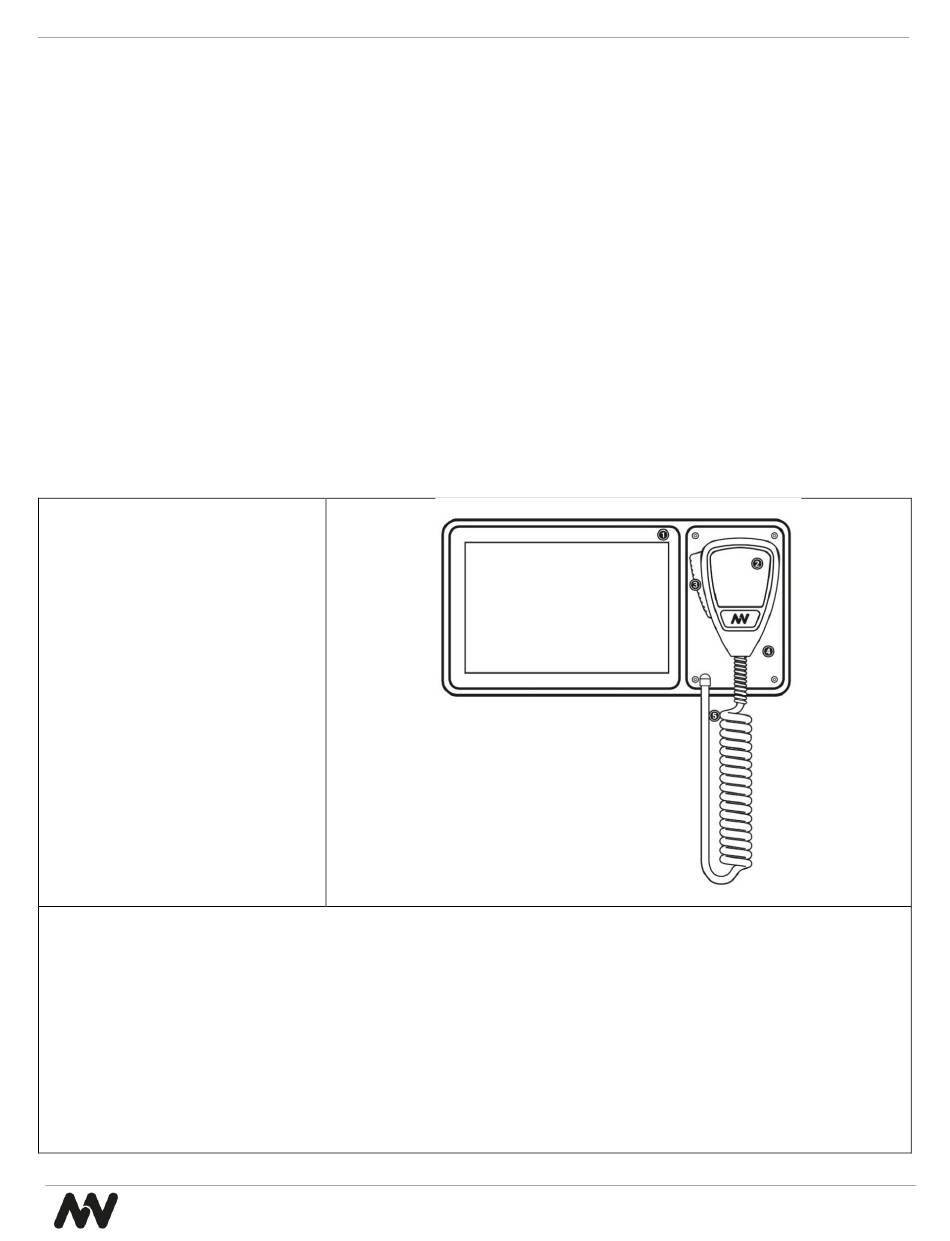

A. Front panel
1. Touch panel - 8-inch
2. Handheld push-to-talk
microphone
3. PTT button for live call
activation
4. Magnetic docking plate for
microphone
5. Microphone cable
Touch screen
The 8-inch touch display shows the user interface operating the paging station. For more information, see the
chapter on User interface setup. Use your fingers to touch the screen.
CAUTION: Don't use any sharp objects on the screen. Clean the screen with static-free cleaning cloths only.
Microphone
The handheld push-to-talk microphone is available with the handheld paging station models. This microphone
is attached to the paging station by a magnetic plate. The Talk/Start button is directly on the microphone.
