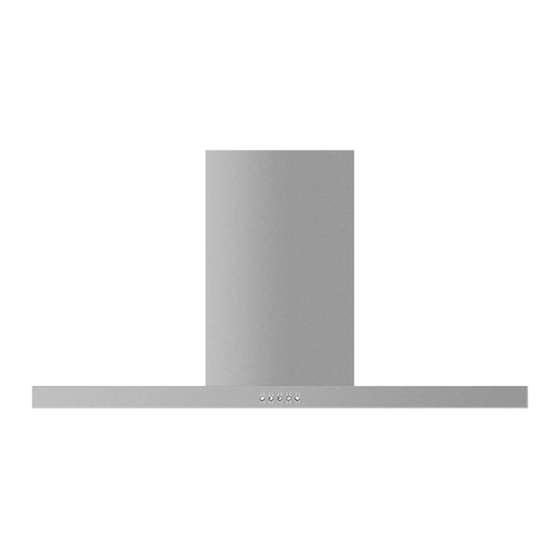

- Page 1 WALL RANGEHOOD, BOX CHIMNEY HC60BLX1 & H 90BLX1 GUIDE INSTALLATION GUIDE NZ AU...
-
Page 3: Table Of Contents
CONTENTS Safety and warnings Installation instructions Operating instructions Cleaning and maintenance Parts and accessories Manufacturer’s Warranty Customer Care IMPORTANT! Registration SAVE THESE INSTRUCTIONS Register your product with us so we can The models shown in this user guide may provide you with the best service possible. not be available in all markets and are subject to change at any time. -
Page 5: Safety And Warnings
The rangehood is heavy. Please ensure adequate care is taken when installing the rangehood to prevent personal injury. The rangehood must be installed onto a solid wall, stud, beam or truss. Weight of the HC60BLX1 is 12 kg and weight of HC90BLX1 is 15 kg. - Page 6 SAFETY AND WARNINGS Exhaus t air must not be dischar ged into an existing flue that is used for exhausting ● fumes from appliances burning gas or other fuels. Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases.
- Page 7 Contents of packaging Outside chimney (1) Cooker Hood (1) Inside chimney (1) Outside chimney Hood mounting Inside chimney Hook (1) bracket (1) bracket (1) bracket (1) Pan head Screw Countersunk Screw Wall plug (9) (ST4*30mm) (2) (ST4*40mm) (7) Cable tie (1) Screw (ST4×...
- Page 8 Optional Recirculation Accessories (when ducting externally not possible) Installation bracket T-shaped plastic outlet Screw ST3*12mm Screw ST4*8mm Recirculation Carbon filters Carbon filter Not Included – available separately See arts and Accessories section for ordering details...
- Page 9 Product dimensions Ø Power cord HC60BLX1 HC90BLX1 PRODUCT DIMENSIONS Overall height of product min. 540-max. 1020 min. 540-max. 1020 Depth of chimney Overall depth of product Diameter of ducting outlet Distance from centre of ducting outlet to side of chimney...
- Page 10 Height of rangehood INSTALLATION DIMENSIONS Installation height Ducted min.540 - max.1020 Recirculation min.640 - max.1020 Height top of cooktop to base of product Electric cooktop min.600 - max.750 Gas cooktop min.650 - max.750 Rangehood installation height above the cooktop is the user’s preference. Lower installation heights will improve the efficiency of capturing cooking odours, grease, and smoke.
- Page 11 Venting options Attention should be given to ensure that any applicable regulations concerning the discharge of exhaust air are fulfilled. The rangehood can be installed to operate with the exhaust air ducted externally from the kitchen, or installed to operate with the exhaust air recirculating within the kitchen. Ducted For ducted installation it is recommended that 150 mm diameter, rigid or semi-rigid ducting is used.
- Page 12 WARNING! This product is heavy and requires two persons for installation. ● Installation work and electrical wiring must be done by qualified person(s) ● Failure to install the screws or fixing device in accordance with these instructions ● IMPORTANT! Wear gloves to protect against sharp edges. Installation Ensure there is a power socket accessible behind the chimney.
- Page 13 Upper chimney brack et attachment point Upper rangehood attachment point Lower rangehood attachment point Pic 2 HC60BLX1 HC90BL1X1 PRODUCT DIMENSIONS Lower rangehood attachment point width Lower rangehood attachment point height Upper rangehood attachment point width Upper rangehood attachment point height 283.5...
- Page 14 (2*wall plugs + 2*ST4*40mm screws) hole for hook (2*wall plugs + 2*ST4*30mm screws) safety hole (2*wall plugs + 2*ST4*30mm screws) Pic 3 HC60BLX1 HC90BL1X1 PRODUCT DIMENSIONS Lower rangehood attachment point width Lower rangehood attachment point height Upper rangehood attachment point width Upper rangehood attachment point height 283.5...
- Page 15 Pic 4...
- Page 16 INSTALLATION (VENT OUTSIDE) MOUNTING OF THE V-FLAP If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body.The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations.
- Page 17 Put the cooker hood on the hood bracket or on the two screws. Tighten the two screws if needed. See Adjust the position and fix the cooker hood body with the safety screws (2pcs ST4*30mm). See 10.Note: The 6mm holes for these two screws are positioned on the back of the cooker hood.
- Page 18 adjusted pipe Pic 12 Pic 13 Pic 14 Pic 15 Pic 16...
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS Start Using Your Cooker Hood Push button Push the “0 ” button, and the m otor will stop. Push the “1” button, and the motor will run at low speed. Push the “2” button, and the motor will run at mid speed. Push the “3”... -
Page 20: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING! Unplug or disconnect the appliance from the power supply before servicing or cleaning. IMPORTANT! Never use abrasive or oil based cleaners. ● Wear gloves to protect against sharp edges. ● Maintenance The rangehood should be cleaned regularly using a mild, liquid detergent and a clean soft cloth to avoid a build-up of grease occurring. - Page 21 CLEANING AND MAINTENANCE Carbon filters – for use in recirculation mode Active carbon filters are disposable items designed to remove grease and odours from cooking vapours before the air is channelled back into the kitchen. The active carbon filters must be replaced periodically to work properly, at least every three months, depending on the frequency with which the rangehood is used.
-
Page 22: Parts And Accessories
PARTS AND ACCESSORIES ITEM REFERENCE NUMBER H0530061789 LED lights H0530061790 Aluminium filter H0530060509 Recirculation carbon filter(×2) H0530062211 T-shape Recirculation Outlet kit Chimney Extension 900mm... -
Page 23: Manufacturer's Warranty
MANUFACTURER’S WARRANTY You automatically receive a 2 year Manufacturer’s Warranty with the purchase of this rangehood covering parts and labour for servicing within the country of purchase. Fisher & Paykel undertakes to: Repair or, at its option, replace without cost to the owner either for material or labour any part of the product, the serial number of which appears on the product, which is found to be defective within TWO YEARS of the date of purchase. - Page 24 MANUFACTURER’S WARRANTY For Australian Customers This Manufacturer’s Warranty is an extra benefit and does not affect your legal rights. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
-
Page 25: Customer Care
CUSTOMER CARE Before you call for service or assistance... Check the things you can do yourself. Refer to the installation instructions and your user guide and check that: 1 Your product is correctly installed. 2 You are familiar with its normal operation. If after checking these points you still need assistance or parts, please refer to your nearest Authorised Service Centre, Customer Care, or contact us through our website www.fisherpaykel.com. - Page 26 CUSTOMER CARE Complete and keep for safe reference: Model Serial No. Purchase Date Purchaser Dealer Suburb Town Country...
- Page 27 © Fisher & Paykel Appliances 2015. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your Dealer to ensure this booklet correctly describes the product currently available.
