bouncepad Wing Freestanding Assembly Instructions

Wing - Freestanding
Assembly Instructions

Tools Required:

All tools provided
Sheet Code: BP-IM-072_REV1
Release Date: 24/05/2021
Copyright 2016 Spotspot Ltd. (T/A
Bouncepad) all rights reserved.
Confidential, no part of this publication
may be reproduced or transmitted in any
form without the written permission of the
copyright holder.

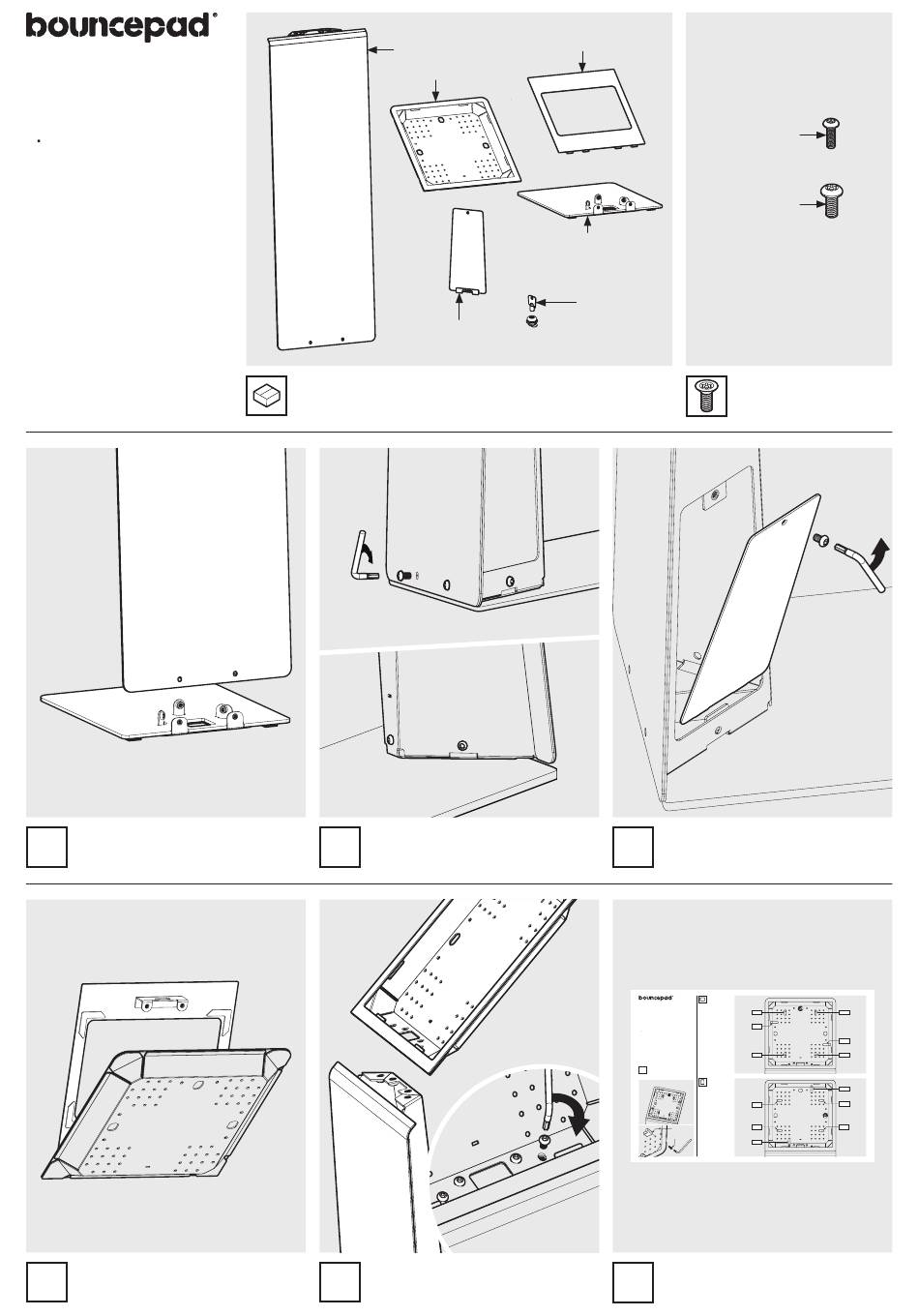

Locate the Mounting Arm onto the
1
Freestanding Base.
Remove the Faceplate from the Case
4
Back. Store this aside.
Mounting Arm
Case Back
Mounting Arm
Access Panel

In the Box

Secure the Mounting Arm to the
2
Mount Bracket, with 5x M6x10mm
screws.
Locate and secure the Case Back to
5
the Mounting Arm, with 4x M6x10mm
screws. Ensure good Case alignment.
Faceplate
Freestanding
Base
*fixings to attach the stand to the
Bouncepad
Lock
*Fitted into Case by Bouncepad.
**Lock available as optional extra
(at additional charge).
Remove the Mounting Arm Access
3
Panel. Safely store this aside for use
later.
Follow the shown Follow the shown
guide if installing your guide if installing your
device in Landscape. device in Landscape.

Wing - Tablet Setup

Assembly Instructions

Device:

iPad Pro 12.9" (Gen3,4,5)
Tools Required:
All tools provided
Sheet Code: BP-IM-074_REV0
Release Date: 15/06/2021
Copyright 2016 Spotspot Ltd. (T/A
Bouncepad) all rights reserved.
Confidential, no part of this publication
may be reproduced or transmitted in any
form without the written permission of the
copyright holder.
Follow the tablet specific assembly guide
shown for locating your tablet setup kit.
!
Take care to ensure correct thread
engagement between the fixings & tablet
supports.
Follow the shown Follow the shown
guide if installing your guide if installing your
*Your configured product may not be representative of the shown illustration.
device in Portrait. device in Portrait.
**The Bouncepad lock is an optional extra (at additional charge).
Tablet support
M4x8mm
Buttonhead
screw
Complete the separate tablet setup
6
document - specific to your tablet,
device orientation & locking method.
8x M4x8mm
Buttonhead
screw
10x M6x10mm
Buttonhead
screw
ground are not provided.
Fixings
List
TDL16 TDL16
TDL17
TDL17
TDL16 TDL16
TDL17
TDL16 TDL16
TDL16 TDL16
TDL17
