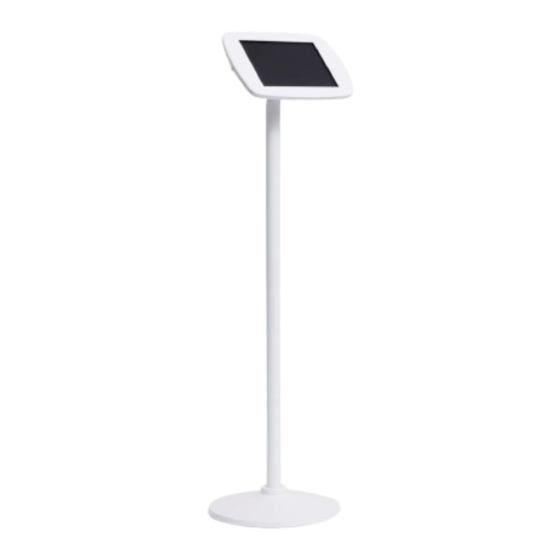

bouncepad Floorstanding Assembly Instructions

Floorstanding
Assembly Instructions
Tools Required:
Socket Driver
10mm Spanner
*or adjustable spanner
Sheet Code: BP-IM-047_REV2
Release Date: 28/10/2019
Copyright 2016 Spotspot Ltd. (T/A
Bouncepad) all rights reserved.
Confidential, no part of this publication
may be reproduced or transmitted in any
form without the written permission of the
copyright holder.
Tighten screw(s) using hand tools, using electric
tools may damage your Bouncepad.

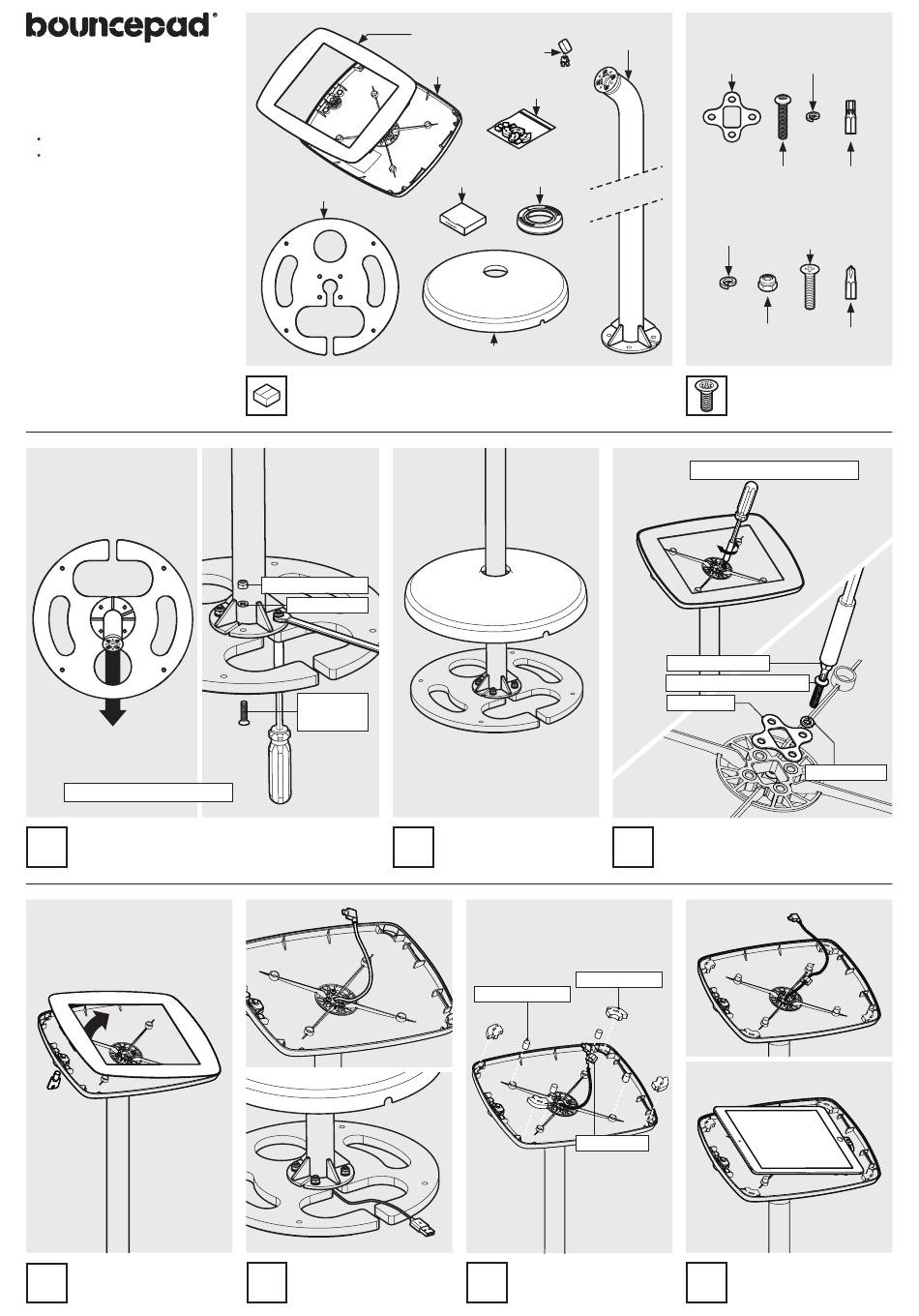

Orientate, locate and secure the Floorstanding
1
Pole to the Floorstanding Base as shown. Ensure
that all fixings are installed correctly.
Unlock & remove the
4
Faceplate from the
Bouncepad Case.
Faceplate
Case
Floorstanding Base
In the Box
M6 Nylon Locking nut
M6 Split Washer
M6x25mm
Countersunk
screw
2
Feed the tablet power
5
cable through the Case &
Floorstanding Pole.
Floorstanding
Pair of Keys
Tablet Set-up Kit
Floorstanding
Fixings Kit Rubber Collar
Floorstanding Cover
Locate the Floorstanding
Cover over the
Floorstanding Pole.
4x Corner Pieces
4x Tablet Supports
1x Cable Clip
Install the Tablet Setup
6
Kit. Each kit is specific
per device & case.
Pole
1x Case 4x M4 Split
Washer
4x M4x20mm
Buttonhead
screw
4x M6x25mm
4x M6 Split
Countersunk
Washer
4x M6
Locking Nut
Fixings List
* Due to the modular nature of our product range
you may receive additional fixings in the fixings kit
Tighten screw(s) using hand tools, using electric
tools may damage your Bouncepad.
T20 Pin Torx Driver Bit
M4x20mm Button head screw
Case Washer
Locate and secure the Case onto the
3
Mounting Arm as shown. Tighten by
hand.
Install the tablet into the
7
Case & connect to power.
Washer
1x T20 Pin
Torx Driver Bit
screw
1x PZ3 Pozi
Driver Bit
M4 Split Washer
