CONNECTIONS

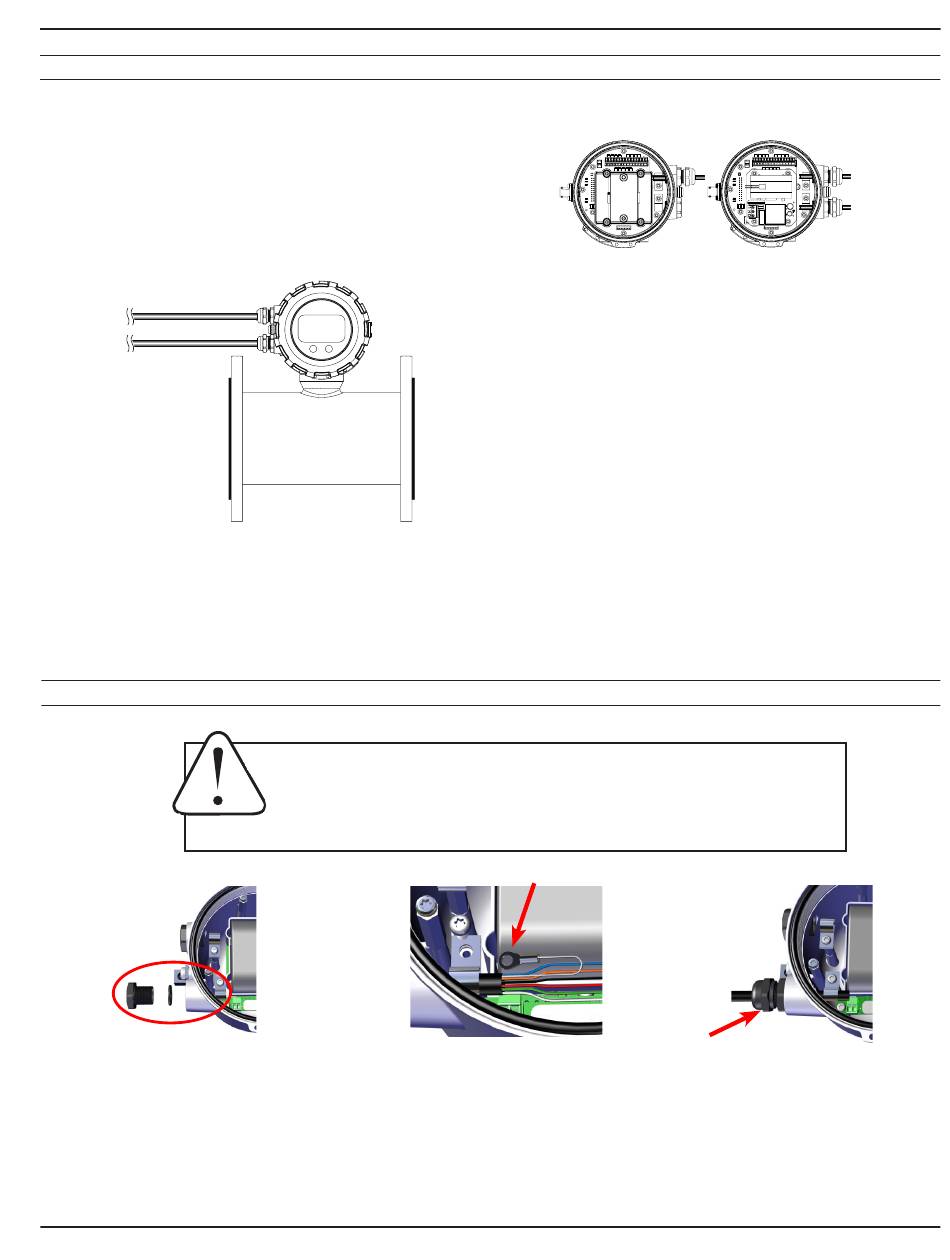

General Cable Information

In the AG3000p meter, there are a maximum of two Power/
Output cables that can be installed. These cables contain
the wires for any available options (scaled pulse, 4-20mA,
Modbus , and Digital) as well as power (DC or AC). (See
®
Cable Wiring Diagrams and Cable Wiring Table.) It is up to
the user to decide how to best organize the wiring for the
application.
Power/Output Cable 1
Power/Output Cable 2

Cable Gland Opening and Sealing

Remove plug & o-ring. Insert
cable gland/strain relief. Feed
cable through cable gland.
Seametrics • 253.872.0284
Integrated
Meter
NOTICE: Improper sealing of glands or cables will invalidate any warranty.
If plugs or cable glands are removed, reinstall using Teflon pipe sealant, or tape, to ensure maximum
moisture protection.
AVIS: Une mauvaise étanchéité des presse-étoupes ou des câbles annulera toute garantie.
Si les bouchons ou les presse-étoupes sont retirés, réinstallez-les à l'aide d'un scellant pour tuyaux en
Téflon ou d'un ruban adhésif pour assurer une protection maximale contre l'humidité.
Clamp cable with strain relief
clips. Attach drain wire lug to
bracket post.
The AG3000p is available in either DC or AC versions.
DC version AC Version
If the meter is configured with AC power, one of the Power/
Output cable ports must be reserved for AC power only.
We do not recommend combining AC power signals with
any of the meter outputs in a single cable. If the meter is
configured for DC power, you may have one or two cables,
depending on configuration. (See Cable Wiring Diagrams.)
Page 11
AG3000p INSTRUCTIONS
CRITICAL!
Torque cable gland sealing
nut to 22 in-lbs.
