CONNECTIONS

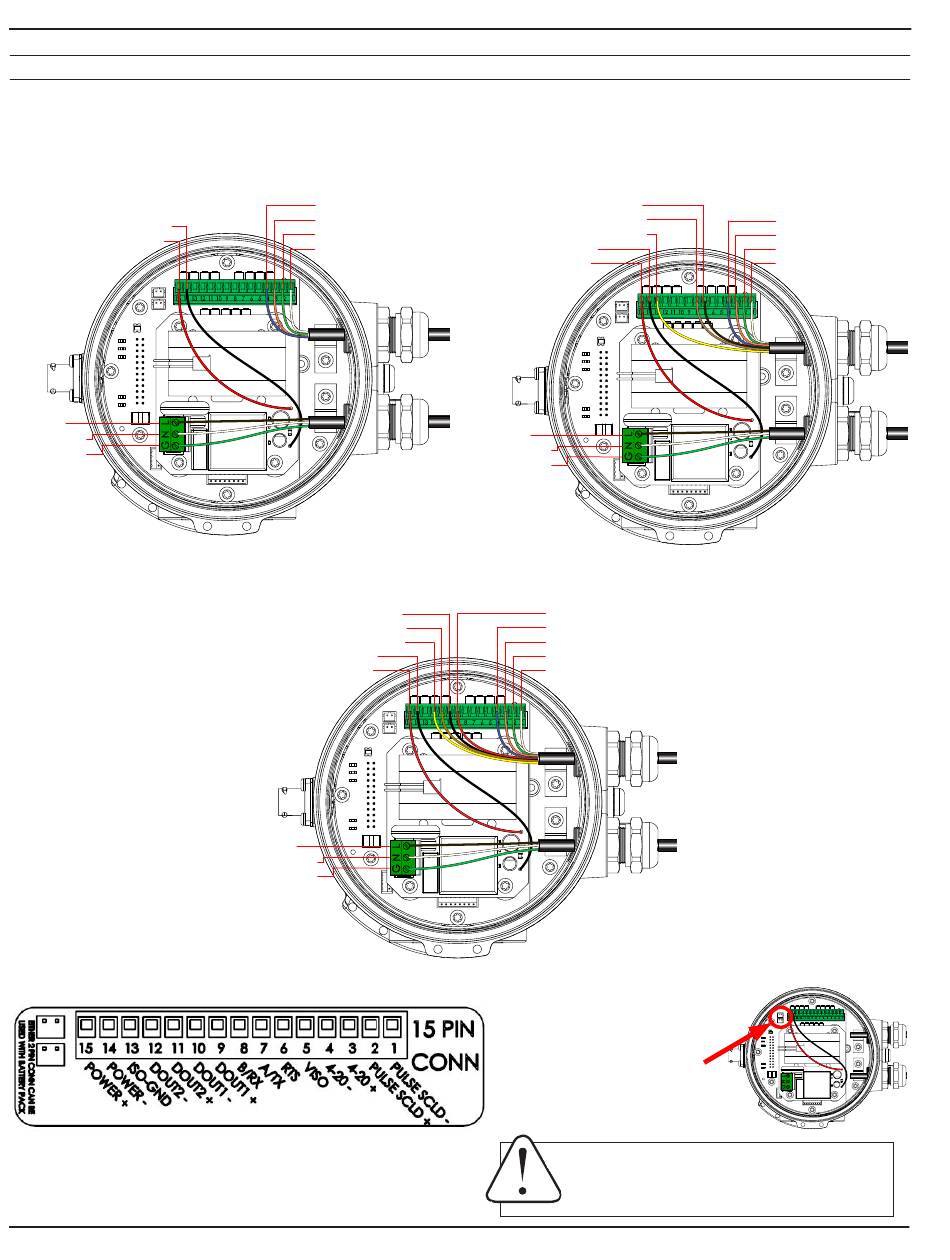

Wiring Diagrams (continued)
On the back of the meter, unscrew the black user access lid and remove it. Remove the 15 pin screw connector
from its bag. Install the wires through the cable gland and into the 15 pin screw connector in their respective
locations. Connect internal black and red wires to pins 14 and 15, respectively. Plug the 15 pin screw
connector into its socket. Install AC power cable through cable gland and connect to AC connector, as shown.
(C1 = power/output cable, AC = AC power cable)
Black (Internal): pn14
Red (Internal): pn15
Black (Line)
White (Neutral)
Green (Ground)
AC Power with Pulse and 4-20mA (A1X/A2X)
Seametrics • 253.872.0284
Blue (C1) 4-20mA-: pn4
Orange (C1) 4-20mA+: pn3
Green (C1) Pulse+: pn2
White (C1) Pulse-: pn1
Black (C1) DOUT1-: pn10
Brown (C1) DOUT2+: pn11
Yellow (C1) DOUT2-: pn12
Black (Internal): pn14
Red (Internal): pn15
Black (Line)
White (Neutral)
Green (Ground)
AC Power with Pulse, 4-20mA, and Digital Out (A1G/A2G)
Black (C1) Modbus A/TX: pn7
Brown (C1) Modbus B/RX: pn8
Yellow (C1) Modbus Gnd: pn13
Black (Internal): pn14
Red (Internal): pn15
C1
AC
Black (Line)
White (Neutral)
Green (Ground)
AC Power with Pulse, 4-20mA, and Modbus
Red (C1) DOUT1+: pn9
Blue (C1) 4-20mA-: pn4
Orange (C1) 4-20mA+: pn3
Green (C1) Pulse+: pn2
White (C1) Pulse-: pn1
Plug the backup battery
cable into either of the
two connectors to the left
of the 15 pin connector.
NOTICE: BACKUP BATTERIES ARE NOT INTENDED AS A PRIMARY
POWER SOURCE OF A MAINS (DC or AC) CONFIGURED METER.
AVIS: LES PILES DE SECOURS NE SONT PAS CONÇUES COMME SOURCE
D'ALIMENTATION PRINCIPALE D'UN COMPTEUR CONFIGURÉ SUR
SECTEUR (CC ou CA).
