Seametrics AG90 Quick Start Manual

Seametrics AG90 Quick Start Manual

Propeller replacement
Hide thumbs Also See for AG90:

Advertisement

Quick Links

Check Components

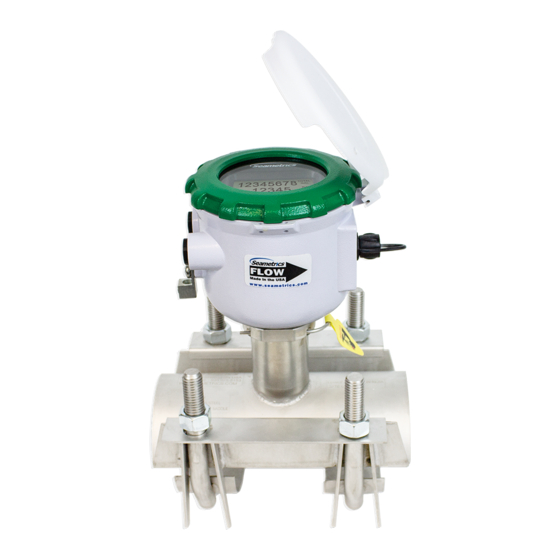

Meter with Indicator
and hinged cover
Gasket

Recommended Tools

Recommended:
• 3/32" or 2.5mm (small) flat head screw driver
• Crescent Wrench
• 5/32" Hex Key

Warnings

Refer to instruction manual for further details.
• Confirm that U-clip retainer is installed and never remove the
U-clip retainer when pipe is under pressure—may result in
serious injury.
• Saddle bolts must be tightened evenly. Do not over tighten.
• Install security seals during installation if regulations require.
• Improper sealing of cables or cable glands will void warranty.
253.872.0284
AG90 Propeller Replacement
Saddle Assembly
(Packaged Separately)
Cable Gland
Page 1 of 4
Display Security Seal
Security Tab
Optional:
• Channel locks
• 6" Strap Wrench
• Ensure proper grounding when required.
• Programming pipe ID, pipe insertion hole size and straight pipe
configuration is required for the meter to read.
• To prevent tampering or changes to the program, after initial
set-up, either enter a security pass-code, or remove the display
lid and place a security tab over one of the arrows before
installing the housing security seal.
Quick Start Guide
Security Clip & Seal
(Security Clip has small hole for seal wire)
Optional
Power/Output Cable
seametrics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG90 and is the answer not in the manual?

Questions and answers

Summary of Contents for Seametrics AG90

  • Page 1 AG90 Propeller Replacement Quick Start Guide Check Components Display Security Seal Security Clip & Seal Meter with Indicator Saddle Assembly and hinged cover (Packaged Separately) (Security Clip has small hole for seal wire) Optional Cable Gland Security Tab Gasket Power/Output Cable...
  • Page 2 Torque to 75 ft-lb in cross pattern. Seametrics • 19026 72nd Avenue South • Kent, Washington 98032 • USA LT-14494 r2.1-20190417 (P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • seametrics.com...
  • Page 3 Attach drain wire lug to Torque cable gland sealing cable through cable gland. bracket post. nut to 22 in-lbs. Seametrics • 19026 72nd Avenue South • Kent, Washington 98032 • USA LT-14494 r2.1-20190417 (P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • seametrics.com 4/17/2019...
  • Page 4 PRESS TO CHANGE details.) S AMP S AMP SETUP EXIT S AMP S AMP SETUP EXIT Seametrics • 19026 72nd Avenue South • Kent, Washington 98032 • USA LT-14494 r2.1-20190417 (P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • seametrics.com 4/17/2019...
