CONNECTIONS AND SETTINGS

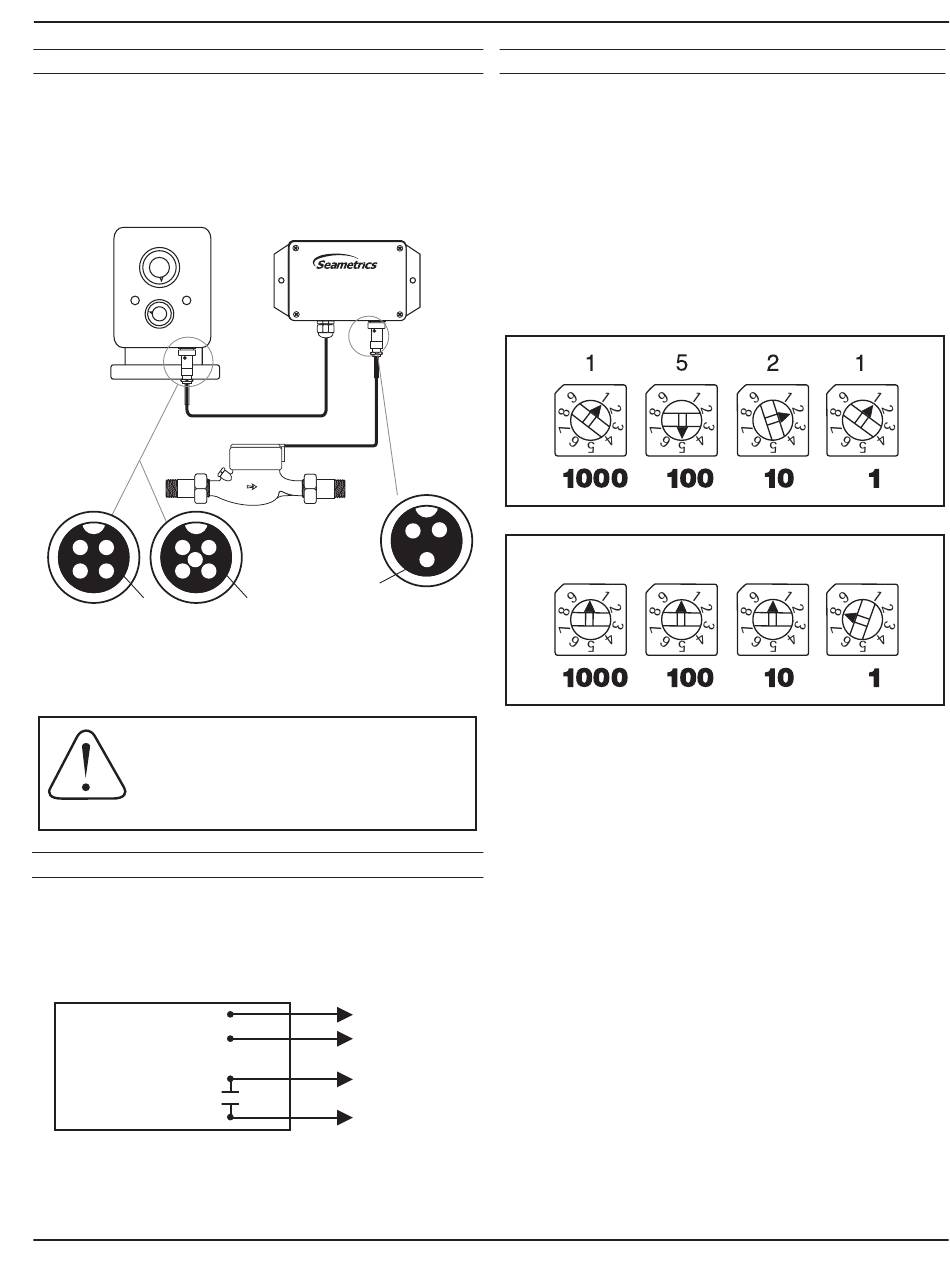

PD10W/LMI Pump

The 24" pigtail that extends from the PD10W connects to
an LMI metering pump and is connected as shown.
The input connector on the control mates with any three-
pin Seametrics connector. (Meters or flow sensors to be
used with a PD10W should be ordered with Seametrics
connectors.)
LMI Pump
LMI Connector
(supplied with
PD10W)
4 1 1 2
5
3 2 4 3
Sockets
-06 Option -106 Option
1. Auxiliary Power Source
2. Pulse Input
3. Ground
4. No Connection
*CAUTION:
If power is supplied to the flow sensor from
the PD10, ensure that the voltage supplied
to the sensor does not exceed the sensor's
allowable maximum input voltage.

PD10W/Non-LMI Pump

If a metering pump is used that requires a connection other
than the LMI connector supplied, cut the LMI connector
off. Connect the PD10W to the pump using the diagram
below in conjunction with the wiring diagram in the pump
manual.
+
POWER
PD10
+
OUTPUT
The input connector on the control mates with any three-
pin Seametrics connector. (Meters or flow sensors to be
used with a PD10W should be ordered with Seametrics
connectors.)
Seametrics • 253.872.0284
PD10W
PD10
To a d just d i v i d e r , d i s con n e c t fro m p o w e r
the n rem o v e c o v e r a n d set switc h e s
Meter
Sockets
Sockets
1. Remote On 1. Ground
2. Ground 2. Input Signal
3. Pulse Input 3. Sensor Power
4. Aux. Power Source +7–30 Vdc*
5. Not Used
Red
7–30 Vdc
Black
–
Ground
Green
Signal +
White
–
Common

Settings

The four numbered rotary switches marked "1000", "100",
"10", and "1" control the ratio of meter pulses to pump
strokes. Before setting the switches, disconnect power
to the unit by removing the connector from the pump
or unplugging the power adapter.
To set any four-digit number, rotate the dials to the
appropriate numbers. For example, to set 1521, set the
four switches to "1", "5", "2", and "1". Any unused switches
should be set to zero. For example, to set 8, position the
dials to "0", "0", "0", "8". See samples below.
Seametrics
Sensor
Connector
(order with
flow meter)
1
3
2
Page 5
0 0
(Set Leading Switches To Zero)
0 0
Setting Examples
PD10 INSTRUCTIONS
0 0
8
0 0
