OPERATION

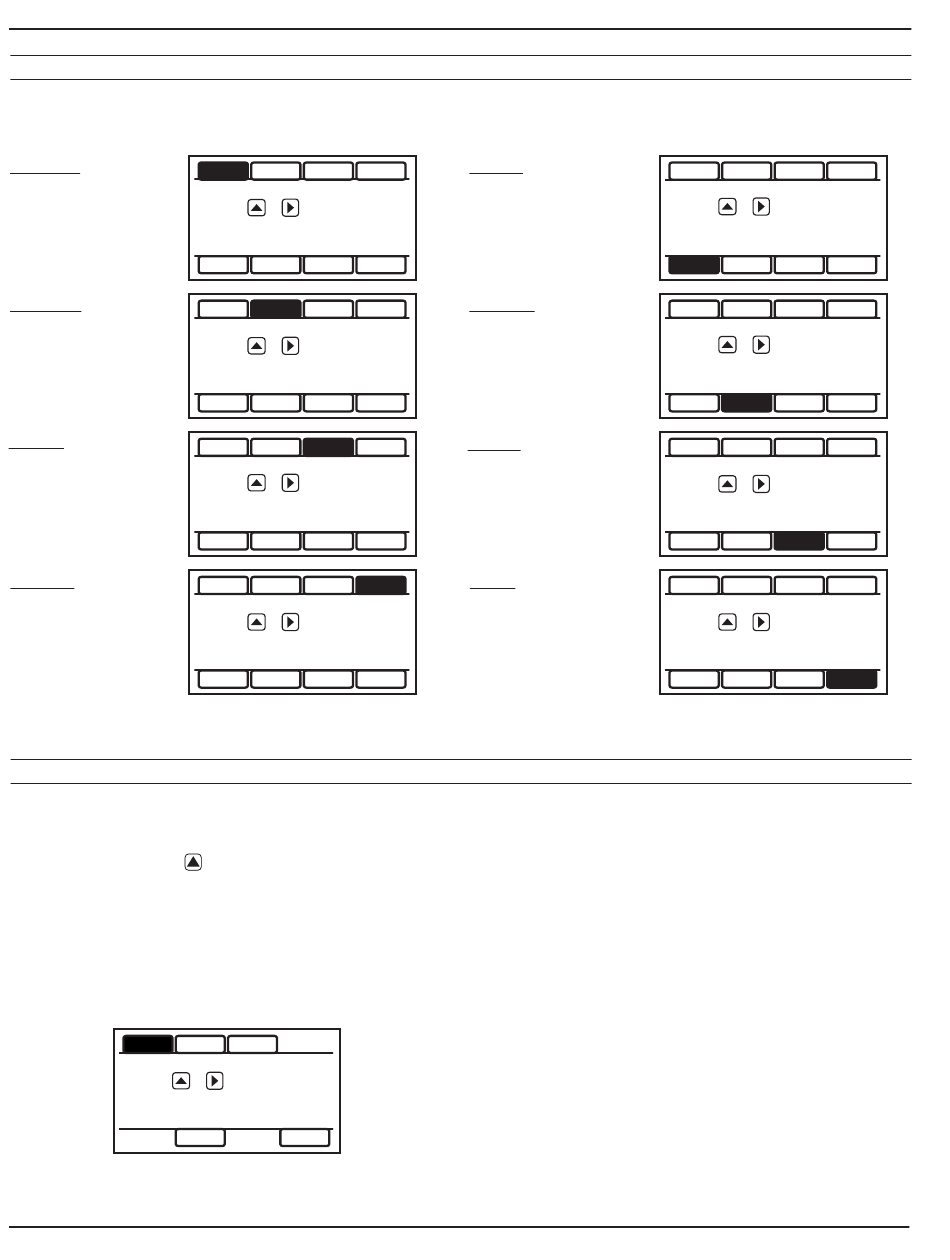

Standard Menu Options
Note: Available options will depend on specific meter configuration. Not all options are available on all meters.
Options not ordered with your meter will not appear on the meter menu.
T UNIT
View or change TOTAL
volume units
R UNIT
View or change flow
RATE units
SET P
View or change pulse
output scaling
DAMP
View or change # of
samples for rolling
average.
Special SUBMENU for Further Options
The EXIT tab in the MAIN MENU has a second function. If,
instead of using the hold and tap sequence to return to the
HOME screen, you tap
to a SUBMENU screen from which you can access several
more options.
Navigation in this SUBMENU is the same as for the MAIN
MENU. Whenever you wish, go to the EXIT tab in the
SUBMENU and perform the hold and tap sequence to
return to the MAIN MENU.
INFO COMM MBID
PRESS
ABOUT METER
S AMP HPOLL
Seametrics • 253.872.0284
T UNIT R UNIT SET P DAMP
TOTAL = G ALLONS
PRESS + TO SET TOTAL
UNIT S FOR DISPLAY
SET 4 SET 20 SET F EXIT
T UNIT R UNIT SET P DAMP
FLOW RATE = G ALLONS/MIN
PRESS + TO SET RATE
UNIT S FOR DISPLAY
SET 4 SET 20 SET F EXIT
T UNIT R UNIT SET P DAMP
00001.0 G ALLONS
PRESS + TO SET
G ALLONS TOTALIZED PER
PULSE SENT OUT PULSE1
SET 4 SET 20 SET F EXIT
T UNIT R UNIT SET P DAMP
DAMPING = 1
PRESS + TO SET
DAMPING VALUE
SET 4 SET 20 SET F EXIT
five times, you will be redirected
FL DIR
+ TO VIEW INFO
FOUT EXIT
Sub-Menu
SET 4
View or change flow
rate corresponding to
4mA.
SET 20
View or change flow
rate corresponding to
20mA.
SET F
View or change high
frequency output
scaling
EXIT
Return to HOME
SCREEN or enter
SUBMENU
INFO: Meter model number, serial number, and firmware
version.
COMM: Modbus baud rate and parity.
®
MBID: Modbus address
®
EXIT: Return to MAIN MENU.
Page 20
AG3000p INSTRUCTIONS
T UNIT R UNIT SET P DAMP
000 40.0 G ALLONS/MIN
PRESS + TO SET FLOW
RATE AT WHICH 4mA
(MIN) OUTPUT IS DESIRED
SET 4 SET 20 SET F EXIT
T UNIT R UNIT SET P DAMP
00200.0 G ALLONS/MIN
PRESS + TO SET FLOW
RATE AT WHICH 20mA
(MAX) OUTPUT IS DESIRED
SET 4 SET 20 SET F EXIT
T UNIT R UNIT SET P DAMP
FMAX = 1 KHz
PRESS + TO SET
MAX FOUT
SET 4 SET 20 SET F EXIT
T UNIT R UNIT SET P DAMP
PRESS + EXIT MENU
AND RETURN TO FLOW
DISPLAY
SET 4 SET 20 SET F EXIT
