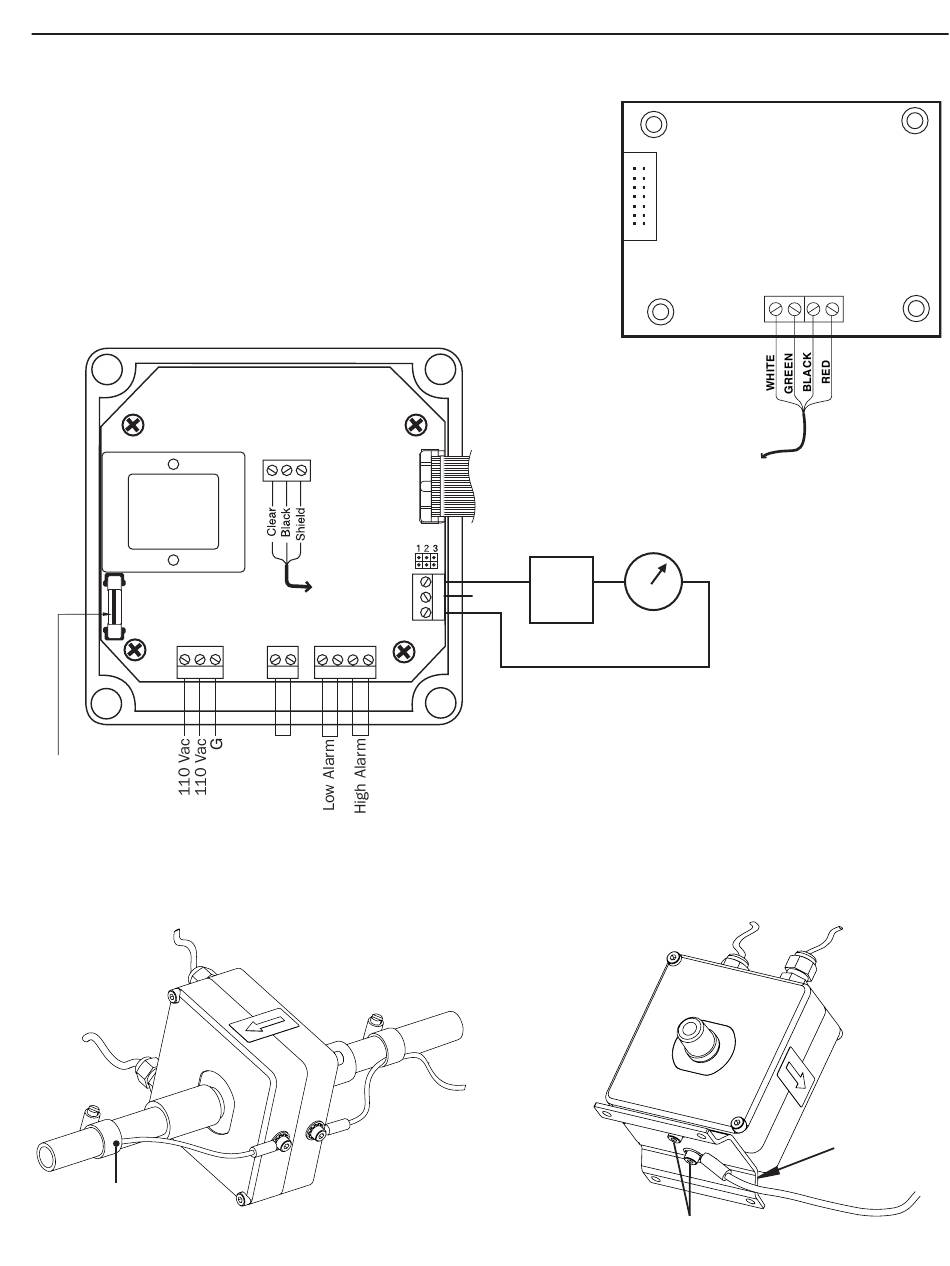

CONNECTIONS and GROUNDING
Fuse, .25 AMP,
5 X 20mm
IDEAL GROUNDING WITh METALLIC PIPING
Bare End Under Clamp
FLOW METER
To
Display
- +
Pulse
Output
Mounting Bracket Removed
Display
Cable
+
-
-
Power
Supply
(UNUSED)
4-20mA Output
(Consult Factory for Other Ranges)
Strain Reliefs
and Housing Front
are Not Shown
To Earth Ground
DISPLAY bOARD
To
Sensor
+
Analog Device
STANDARD GROUNDING
Connect Ground to
Either Screw
Mounting Bracket
To Earth Ground
