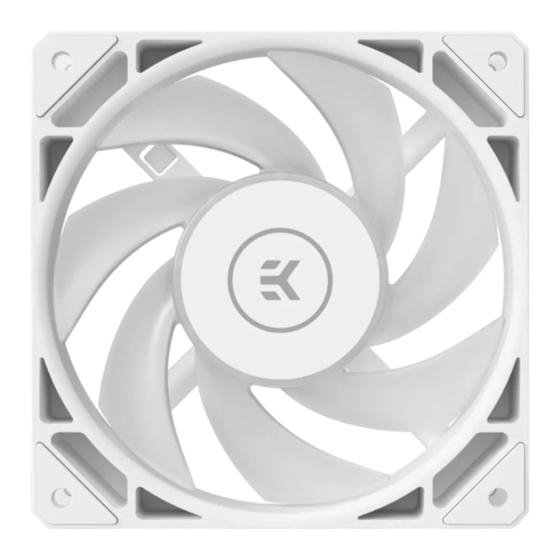

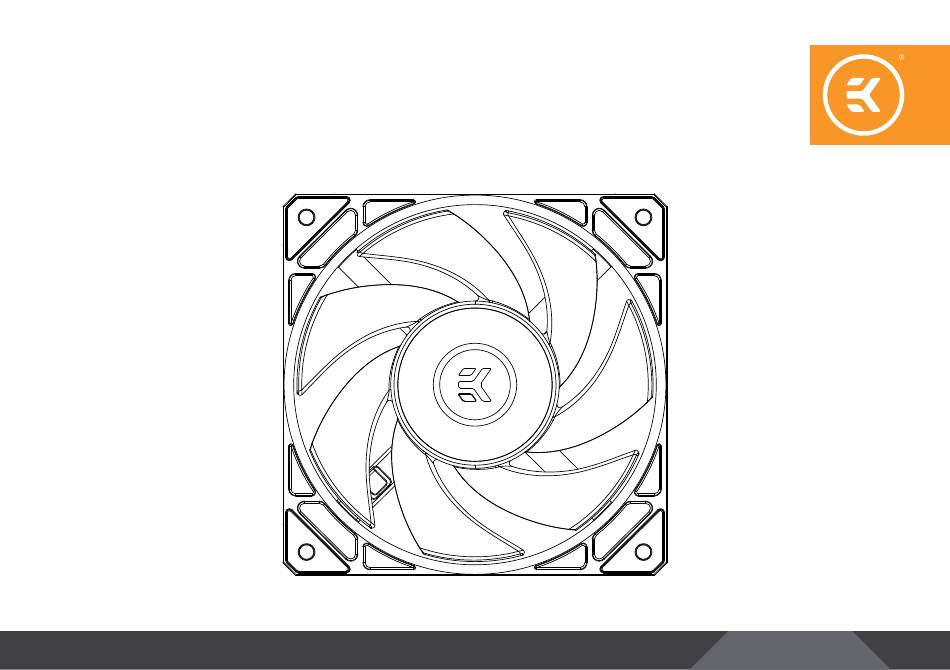

- Page 1 EK-Loop Fan FPT 120/140 FAN USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS TECHNICAL SPECIFICATIONS AND DIMENSIONS 120 mm FAN 140 mm FAN INSTALLING THE FAN DIRECTLY INSTALLING THE FAN ON THE RADIATOR EK-QUANTUM SURFACE RADIATOR CONNECTING THE FANS BASIC INFORMATION’S SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Extension cable (1 pc) FAN Self tapping screw (4 pcs) EK-Loop Fan FPT 120 / 140 FAN TECHNICAL SPECIFICATIONS AND DIMENSIONS 120 mm FAN 27 mm 119.8 mm - Max Air Flow: 77 CFM = 130.82 m³/h 105 mm 26 mm - Static Pressure: 2.7 mm H20 = 26.81 Pa - Noise Level: 36 dBA (max. -
Page 5: 140 Mm Fan
EK provides the four (4) self-tapping screws with each Fan. Use the Phillips head screwdriver to tighten the screws (in a clockwise direction). Don’t use excessive force while tightening the screws. EK recommends using the EK-Loop Torque Screwdriver - 0.6Nm: FPT FAN https://www.ekwb.com/shop/ek-loop-torque-screwdriver-0-6nm SELF-TAPPING SCREW STEP 1 - 5 -... -
Page 6: Installing The Fan On The Radiator
INSTALLING THE FAN ON THE RADIATOR EK-QUANTUM SURFACE RADIATOR M4 x 30 PHILLIPS In the case of using the EK-Quantum Surface radiators, selecting HEAD SCREW the M4 x 30 Screws (enclosed with the radiator) is recommended to secure the fans. EK-LOOP FAN The number of enclosed screws depends on the radiator model. - Page 7 STEP 1 Connect the female connector from the extension cable to the MALE CONNECTOR male connector from the fan. FEMALE CONNECTOR Make sure to turn the Female connector correctly. STEP 1 - 7 -...
- Page 8 STEP 1 *In case of using multiple fan-s, connect fan-s in series with the “daisy-chain”. Make sure to turn the female connector correctly. MALE CONNECTOR FEMALE CONNECTOR STEP 1 STEP 2 After connecting the extension cable with the fan, connect the 4-pin fan connector from the extension cable directly to the CPU FAN CONNECTOR fan header on the motherboard.
- Page 9 STEP 3 Plug the 3-pin D-RGB connector from the extension cable into the D-RGB header on the motherboard. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard. D-RGB HEADER If you put LED Diode to the 12V RGB HEADER you can damage the LEDs.
-
Page 10: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
