This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water
Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our
web site at
www.ekwb.com
for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

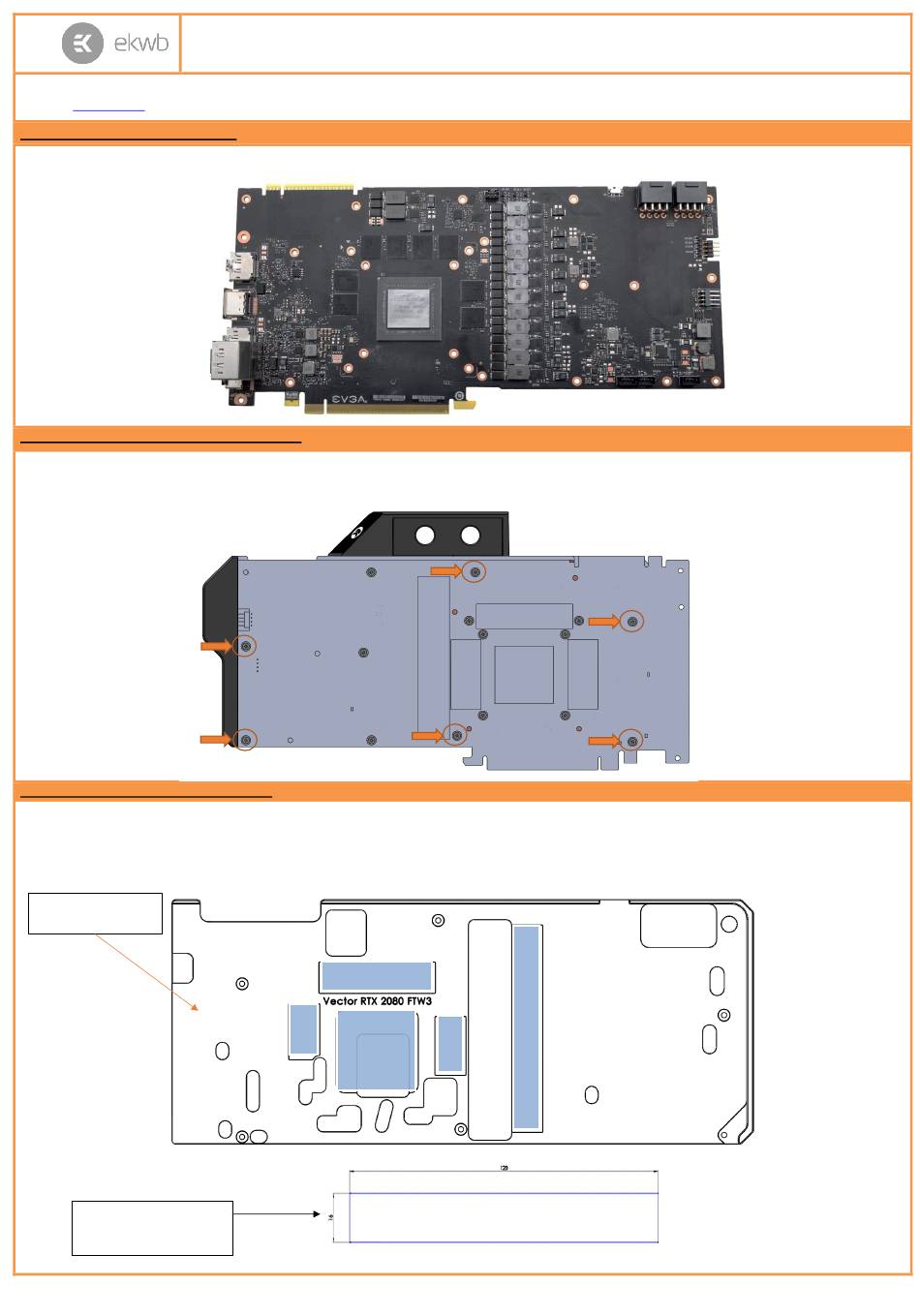

STEP 1: GENERAL INFORMATION. Sample picture of FTW3 RTX 2080 graphics card.
STEP 2: PREPARING YOUR GRAPHICS CARD
First install EK-Vector FTW3 RTX 2080 series water block according to its installation manual. If you have it already installed, please check
the picture below to see which mounting screws are to be left in their position and which are to be removed. Please remove the six (6) M2.5x4
AX1 screws and their PVC washers as well (marked with arrow)
STEP 3: APPLYING THE THERMAL PADS
EK-Vector FTW3 RTX 2080 features passive cooling of the printed circuit board and its components therefore it is mandatory to install the
enclosed thermal pad. Please install enclosed 1,5mm thick thermal pad (Thermal Pad F – 1,5mm (120x16)) as shown on the picture below. You
may need to trim the excess thermal pad.
PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION!
EK-VECTOR FTW3 RTX
2080 BACKPLATE
1.Thermal Pad F-1.5mm
(EAN: 3830046996749)
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-Vector FTW3 RTX 2080
1
1
1
Backplate:
.
1
1
Advertisement
Table of Contents
Related Manuals for ekwb EK-Vector FTW3 RTX 2080
Summary of Contents for ekwb EK-Vector FTW3 RTX 2080
- Page 1 STEP 2: PREPARING YOUR GRAPHICS CARD First install EK-Vector FTW3 RTX 2080 series water block according to its installation manual. If you have it already installed, please check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please remove the six (6) M2.5x4...
- Page 2 Nevertheless do not exaggerate with screwing force as there is no need for it. By all means users must also consider that this product is intended to be used only with EK-Vector FTW3 RTX 2080 series water blocks. No other 3 party heat sinks or coolers are officially supported! EK does not offer any assistance or support in the latter application.
