This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water
Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our
web site at
www.ekwb.com
for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

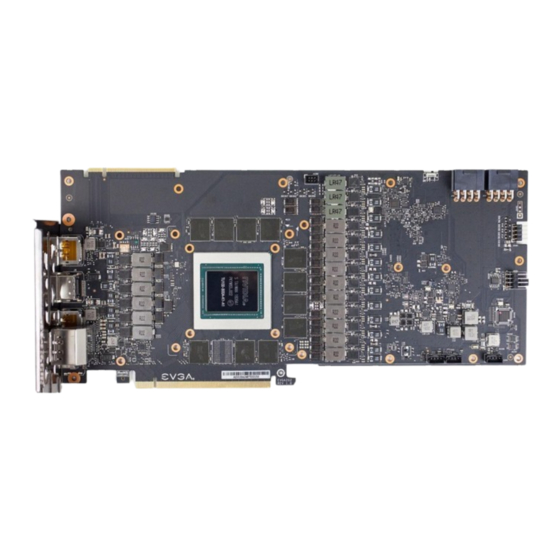

STEP 1: GENERAL INFORMATION. Sample picture of FTW3 RTX 2080 Ti graphics card.
STEP 2: PREPARING YOUR GRAPHICS CARD
First install EK-Vector FTW3 RTX 2080 Ti series water block according to its installation manual. If you have it already installed, please
check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please remove the six (6)
M2.5x4 AX1 screws and their PVC washers as well (marked with arrow
STEP 3: APPLYING THE THERMAL PADS
EK-Vector FTW3 RTX 2080 Ti
enclosed thermal pad. Please install (Thermal Pad F – 1,0mm (120x16)) and (Thermal Pad F – 1.5mm (120x16)) as shown on the picture below.
You may need to trim the excess thermal pad.
PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION!
1. Thermal Pad F 1.0mm (EAN: 3830046996732)
2. Thermal Pad F 1.5mm (EAN: 3830046996749)
EK-VECTOR FTW3 RTX
2080Ti BACKPLATE
All disclosures, notices and warranty conditions are being written on the back of the box.
Installation and mounting manual for EK-Vector FTW3 RTX 2080 Ti
features passive cooling of the printed circuit board and its components therefore it is mandatory to install the
2
Backplate:
).
2
2
1
2
2
