Card information

The MCU card is shown on Figure 1. It contains TM4C123GH6PZ microcontroller which is loaded with on-chip modules and is a great choice for both beginners and
professionals. After testing and building the final program, this card can also be taken out of the board socket and used in your final device.
3
2
page 2

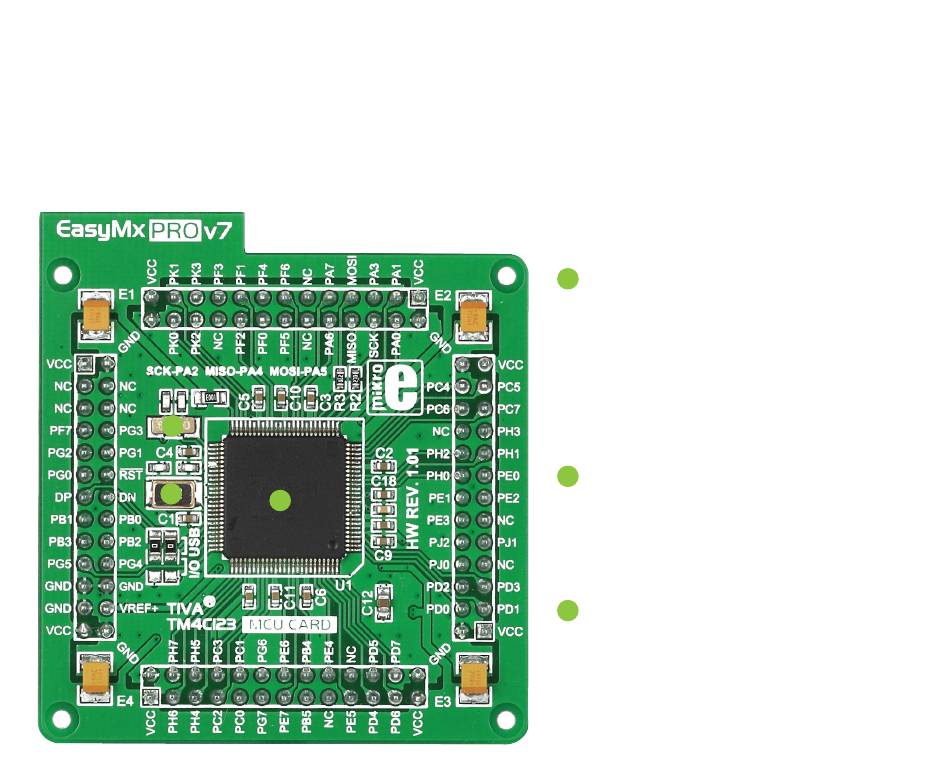

Figure 1: Standard MCU card
with TM4C123GH6PZ
1
1
TM4C123GH6PZ belongs to the ARM
operates at 80MHz, has 256 KB of Flash memory, 32 KB of
single-cycle System SRAM, USB 2.0 (OTG, Host, Device), Up
to 69 General purpose I/O pins, 6x16/32-bit timers, 2x12-
bit A/D (22 channels), a 12-bit D/A , 8xUARTs, internal Real
time clock (RTC), 4xI2C, 4xSPI and 2xCAN controllers. It has
Serial wire debug (SWD) and JTAG interfaces for programming
and debugging.
2
8MHz crystal oscillator. We carefully chose the most
convenient crystal value that provides clock frequency which
can be used directly, or with the PLL multipliers to create
higher MCU clock value.
3
32.768-kHz external crystal oscillator which provides
external clock for the internal hibernation module.
Cortex -M4 family. It
® ™
