mikroElektronika GSM2 click Quick Start Manual

GSM2 click

1. Introduction

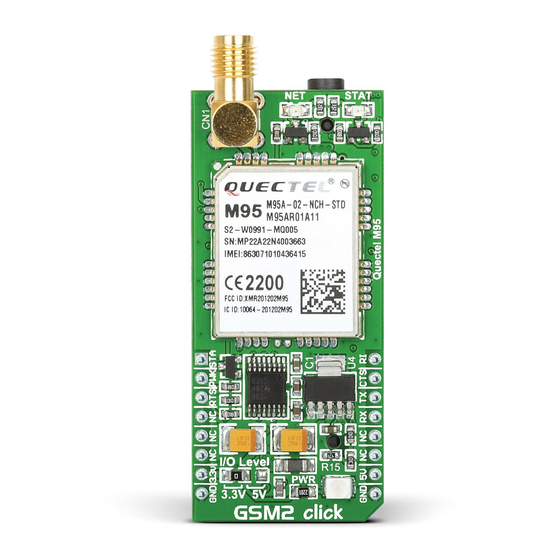

GSM2 Click™ is an accessory board in
mikroBUS
form factor. It's a compact and
™
easy solution for adding GSM module to
your design. It features Quectel M95 GSM
module, audio connector, SIM card socket
as well as SMA antenna connector. GSM2
Click™ communicates with target board
microcontroller via mikroBUS UART (Tx,
™
Rx), PWM, INT, AN, RST and CS lines. The
board is designed to use 3.3V and 5V I/O
voltage levels. LED diode (GREEN) indicates
the presence of power supply.

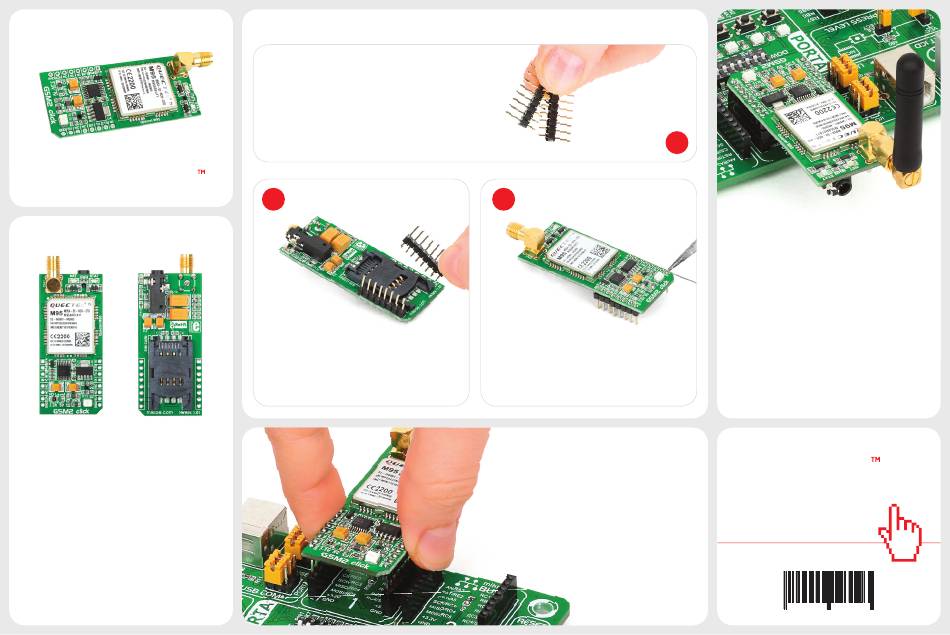

2. Soldering the headers

Before using your click board™, make sure
to solder 1x8 male headers to both left
and right side of the board. Two 1x8 male
headers are included with the board in
the package.
2
Turn the board upside down so that
bottom side is facing you upwards. Place
shorter parts of the header pins in both
soldering pad locations.
1
3
Turn the board upward again. Make sure
to align the headers so that they are
perpendicular to the board, then solder the
pins carefully.

3. Plugging the board in

Once you have soldered the headers your
board is ready to be placed into desired
mikroBUS™ socket. Make sure to align the
cut in the lower-right part of the board
with the markings on the silkscreen at the
mikroBUS™ socket. If all of the pins are
aligned correctly, push the board all
the way into the socket.

4. Essential features

GSM2 Click with it's Quectel M95 IC is ideal
™
Quectel M95
for mobile devices. The
quad-band GSM/GPRS engine that works at
frequencies of GSM850MHz, GSM900MHz,
DCS1800MHz or PCS1900MHz with 85.6
kbps GPRS data transfer. It supports
internet service protocols, such as TCP/IP,
UDP, FTP and PPP.
