Summary of Contents for Ergomotion Duetto

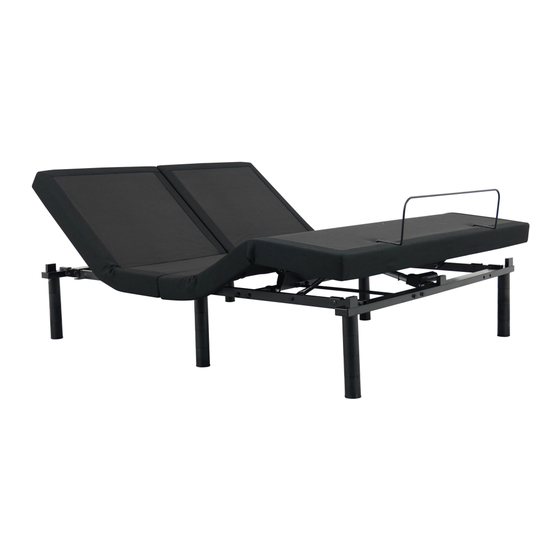

- Page 1 Duetto ADJUSTABLE BASE | OWNER'S MANUAL...
-
Page 2: Table Of Contents
Content Safety Precautions and Usage Statements Parts List Base Overview Electronic Overview Installation Guide Remote Control Remote Control Pairing Headboard Brackets Battery Backup Strap Troubleshooting Warranty Contact 1-888-550-3746 info@ergomotion.com ergomotion.com... -
Page 3: Safety Precautions And Usage Statements
Attention: Important Safety Disclaimers IN-HOME USE AND HOSPITAL STANDARDS Read all instructions before using your adjustable Ergomotion adjustable bed bases are designed solely for in- base. Save these instructions. home use. This base was not designed as a hospital bed and is not designed to meet hospital standards. - Page 4 When operating a “paired” split base setup there may be a time latency up to 1.5 seconds between each bases articulation. TOLERANCE All Ergomotion adjustable foundations, depending on make and WEAR AND TEAR model, are designed and manufactured to perform and function Wear and tear is damage that naturally and inevitably occurs as within designated quality control parameters.
- Page 5 Safety precautions and usage statements across the bed base. The adjustable base is not designed to FCC Compliance: support or lift this amount in the head or foot sections alone. Exceeding this weight restriction could damage the bed and/or NOTE: This equipment has been tested and found to comply with cause injury and will void the warranty.
-
Page 6: Parts List
Parts List Before discarding the packing materials, ensure all the parts are accounted for. All electronics and components are located in bags under the base or attached to the frame with twist ties or orange zip ties. A)A) (x6) Misc. Parts (Not Included) Wireless Remote Controls (2) and AAA Batteries (6) 12-inch Stackable Legs (6) Mattress Retainer Bar... -
Page 7: Base Overview
Base Overview Head Motor #1 Head Motor #2 (Side A) (Side B) USB A+C USB A+C Underbed Underbed Lighting Lighting Control Box Foot Motor - 7 -... -
Page 8: Electronic Overview
Electronic Overview Not to scale. For illustration purposes only. Read all instructions before beginning installation. Underbed Lighting Remote Control (X2) A + C Ports Battery Backup Strap Power Control Cord Input Cable Power Supply Head Motor 1 Head Motor 2 Foot Motor - 8 -... -
Page 9: Installation Guide
Installation Guide Always use two people when setting up the base. Place the bed base box in a desired location Uncoil the power cord and connect to the power with the bottom of the box facing up. Remove supply. Place power supply on the ground and the binding straps and packing materials, extend from the base. -
Page 10: Remote Control
Remote Control The remote controls arrive paired to the adjustable base. Three (3) AAA batteries are required to operate the remote. REMOTE FUNCTIONS A. Zero-G Preset Postition - adjusts your legs to ® a higher level than your heart helping to relieve Side A Side B pressure off the lower back and promote... -
Page 11: Remote Control Pairing
Remote control pairing The original remote that comes in the box is already paired to the adjustable base. No further action is required. In the event that the remote is not paired with the base, follow the steps below. Unplug the Power Cord from your power outlet. Remove the cover on the back of one remote Wait 1 minute, then plug it back in to your power and hold the PAIR button. - Page 12 Headboard bracket installation guide (optional) Headboard Brackets are an optional accessory and are not included. To purchase headboard bracket components, call customer service. Headboard Bracket (2) T-Bracket (2) Long Bolts (8) Short Bolts (6) M) Wingnuts (2) N) Washers (2) O) Hex Key (1) A.
-
Page 13: Battery Backup Strap
Battery backup strap (optional) For emergency use only, in case of a power outage. Batteries are not to be used for normal operation of the bed. Connect the Battery Backup Strap to the input Disconnect the Power Supply from the input power cord. -
Page 14: Troubleshooting
Troubleshooting If one or more functions on the bed base have stopped operating: • Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding obstructing the movement of the base. •... - Page 15 The purchaser shall pay This warranty requires notice to be given 1/5 of the current MSRP of the replacement part, or to Ergomotion of any claim for repairs or the entire adjustable base if deemed irreparable at replacement parts.
- Page 16 This warranty is only valid in The United States, Canada and Puerto Rico. For all other jurisdictions, this Limited Product Warranty is valid only in the jurisdictions where the Products are sold by an Ergomotion authorized - 16 -...
- Page 17 US Customer Service ©2024 Ergomotion Inc V001_1/2024 Phone US 1-888-550-3746 US 1-805-979-9399 Email info@ergomotion.com www.ergomotion.com - 17 -...
