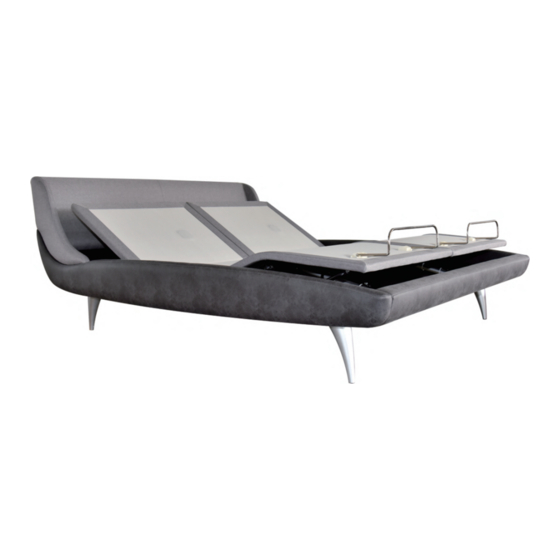

OWNER’S MANUAL 403H Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual.
IN-HOME USE AND HOSPITAL STANDARDS: manufacturer. Close supervision is required when the bed base is used Ergomotion adjustable bed bases are designed solely for in-home use. by or near children, convalescents, disabled persons or pets. Improper This base was not designed as a hospital bed and is not designed to connection of the equipment can result in the risk of electrical shock, meet hospital standards.
Page 4
It is important to All Ergomotion adjustable foundations, depending on make and model, are designed and manufactured to perform and function within designated quality control parameters. Bases are subject to meticulous and rigorous inspections during action (up or down) of the base with the remote control.
Page 5
Safety Precautions and Usage Statements for various configurations of the mattress support platform shall be ± 3°, WEAR AND TEAR: which translates to a tolerance of up to 1 ½”. Wear and tear is damage that naturally and inevitably occurs as a result of normal use or aging.
Page 6
Safety Precautions and Usage Statements IMPORTANT DO’S AND DON’TS • Plug your adjustable base into a power surge protector. FCC Compliance: • Evenly distribute weight when sleeping in a split setup. Uneven distribution of weight can cause the base to raise unevenly. This device complies with part 15 of the FCC Rules.
Parts List Before discarding the packing materials, ensure all the parts are accounted for. All electronics and components that need to be installed are A)A) located in boxes under the base or attached to the frame. Wireless Remote Control Mattress Retainer Bar Power Cord Power Supply Power-Down Box...
Base and Remote Overview Head Motor Sensor Lifts head portion Lifts foot portion of the base. of the base. Lowers head portion of the Lowers foot WiFi Control base. portion of the base. Control Box Power Down FLAT position Memory preset position ZERO G Foot Motor...
Quick Reference Guide Not to scale. For illustration purposes only. Read all instructions before beginning installation. CONTROL BOX OVERVIEW ELECTRONICS OVERVIEW Foot Motor Head Motor Power Cord Head Motor Foot Motor Power Multifunction Input Cord Port Port LED Light Port Connection Control Box Input...
Installation Guide Always use two people when setting up the base. STEP 1 STEP 4 Place the bed base box in a desired location with the top of Uncoil input Power Cord (connected to the box facing up. Control Box’s power port) and plug into Power Supply.
Page 11
Installation Guide STEP 7 STEP 9 Plug the power cord into a power source. Slide the left side of the mattress retainer bar into the bracket. Pull the retainer bar to the opposite bracket and secure the A surge protector is recommended. right side.
Remote Control Remote Control arrives paired to the adjustable base. Three (3) AAA batteries are required to operate the remote. BUTTON OVERVIEW Foot Position Head Position Adjustments Adjustments Use to raise and Use to raise and lower the foot lower the head section of your section of your adjustable base.
Page 13
Locate the Power Down Box and press the button TWICE. A light the adjustable base movements, please repeat the process on the Battery Back Up Box will again or call Ergomotion customer service: U.S. 1-888-550-3746 illuminate. POWER DOWN Button *ALTERNATE REMOTE PAIRING PROCESS!
Syncing Two Bases (Optional) A Sync Cord is included with the base. Not available on Queen, Full or Full-Long size bases. The Sync Cord connects the two control boxes to a single remote for the synchronization of two bases. STEP 1 Unplug bases from power source.
Power Down Box Store the battery box in a convenient location for emergency use. Two (2) 9 Volt batteries are required to operate the power down feature and are NOT included. OVERVIEW For emergency use only, in case of a power outage. In the event that the base is stuck in an articulated position during a power outage, the Power Down Box will return the base to a FLAT position.
Headboard and Shroud Installation Guide Install parts list All spare parts that may be used are placed in the carton, with a backrest carton, and a side-carton, and two foot-cartons. Backrest cartons: A) Long surround fixing piece x2 B) Three-sided connector x2 C)...
Page 17
Headboard and Shroud Installation Guide STEP 3 STEP 6 3.The four iron frames are buckled to form 6.Raise the backrest and insert the male a single unit, and four corners are locked snaps on both sides of the backrest into with screws (M8X70) (F).
Headboard and Shroud Installation Guide STEP 9 9.Fasten the two ends of the foot plate to the two side plates. STEP 10 10.Lock the rubber gasket on square tube of metal frame of shroud, then make base frame flat on the rubber gasket. STEP 11 11.
Sleep Assist WiFi Setup Guide Getting Started - Download Application Pair Bed with “Sleep Assist” App STEP 1 STEP 1 User register via Email 1. Please download the “Sleep Assist” 1.Open the Sleep Assist app and create a new App from Apple App Store or Google account by selecting Join Now at the bottom Play Store.
Page 20
Sleep Assist WiFi Setup Guide STEP 3 Pair Bed STEP 4 Connect New Bed 3.Open the WiFi settings interface on your 4.Open the Sleep Assist app and select the MY BED button. phone. Select the WiFi with the name Select Bed Setup option > Then select Connect new bed. “KS-xxxxxxxxxxxx”.
Page 21
Sleep Assist WiFi Setup Guide STEP 5 Select Home WiFi STEP 6 Pairing Process 5.Now select the endpoint and the WiFi name 6.Once the ID number is displayed, select the that the bed will connect to. Input the WiFi PAIR button and then select Confirm password, then select CONNECT button.
Page 22
Sleep Assist WiFi Setup Guide STEP 7 Select side of bed (Only for Standard) STEP 8 Input the serial number 7.Select your side of bed, select Confirm button. 8. Enter the rst eleven digits of the serial number (found on back of remote or owner's manual), then select Confirm button.
Page 23
Sleep Assist WiFi Setup Guide Authorize(Only for Standard) STEP 1 STEP 2 1.Select the MY BED and AUTHORIZE BED option on the app, and then input 2.Wait for a moment, the authorized the email which you want to authorize. Select Send button. account will show this window.
Page 24
Sleep Assist WiFi Setup Guide Add My Care account STEP 3 STEP 1 3.Wait for a moment, your account will show 1.Select the PROFILE and MY CARE option this window. Select Ok button. Now you have on the app. successfully authorized.
Page 25
Sleep Assist WiFi Setup Guide STEP 2 STEP 3 2.Select “+” button and input the email which 3. Wait for a moment, the account you you want to add to "My Care". Select Confirm selected will show in this window. Select button .
Page 26
Sleep Assist WiFi Setup Guide Sleep report STEP 4 STEP 1 4.Wait for a moment, your account will show 1.Select HOME and you will see the sleep this window. Select Ok button. Now you report. have successfully added the care account.
Sleep Assist WiFi Setup Guide STEP 2 2.Select the left button of the sleep report screen and you will see the real-time sleep report. Synchronized Setup If using 2 beds as a synchronized setup (using a sync cord), you will need to unplug the sync cord rst, then setup the single base individually.
Remove and replace full batteries in the remote control and re-pair the remote to the base (see page 11). If issue is not resolved by following the instructions above, locate serial number on warranty card or back of remote and call Ergomotion Customer Service: 37061386359...
