Motion Essentials VI
Owner's Manual

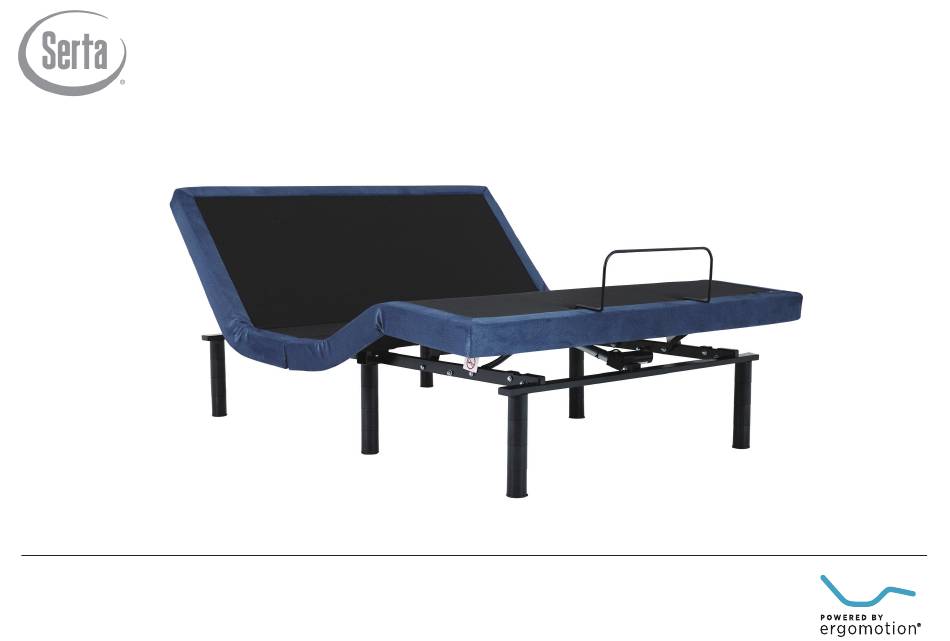

Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Serta Motion Essentials VI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergomotion Serta Motion Essentials VI

Summary of Contents for Ergomotion Serta Motion Essentials VI

  • Page 1 Motion Essentials VI Owner's Manual Actual product appearance and functionality may vary from photographs, illustrations and descriptions included in this manual.

  • Page 2: Table Of Contents

    table of contents Safety Precautions and Usage Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2 Parts List .

  • Page 3: Safety Precautions And Usage Statements

    safety precautions and usage statements Attention: Important Safety Disclaimers Read all instructions before using your adjustable base SAVE THESE INSTRUCTIONS. To reduce the risk of shock, burns, fire or injury: Always unplug the base from the electrical outlet before servicing any part of the base.
  • Page 4 safety precautions and usage statements information on activation and deactivation of this feature can be found on page If persistent marks remain visible after cleaning, seek professional advice. SAVE THESE INSTRUCTIONS. Power Ratings: INPUT: AC 100–240V 50/60 HZ 1.5A OUTPUT: DC 29V 1.8A WATTS: 52.2W Product Ratings:...

  • Page 5: Parts List

    parts list Before discarding the packing materials, ensure all the parts are accounted for. All electronics and components that need to be installed are located in boxes under the base or attached to the frame. Wireless Remote Control (1) AAA Batteries (3) Mattress Retainer Bar (1)* Legs &...

  • Page 6: Base And Remote Overview

    base and remote overview Actual product design may vary. Head Motor USB Ports Head Up/Down Foot Up/Down Zero-G® Preset Flat Preset Position Control Box Foot Motor...

  • Page 7: Quick Reference Guide

    quick reference guide Not to scale. For illustration purposes only. Read all instructions before beginning installation. CONTROL BOX OVERVIEW ELECTRONICS OVERVIEW Head Motor Foot Motor Power Cord Wireless Remote Input Power Cord Multifunction Control Connection port Battery Backup Power Supply Strap Input Power Cord...

  • Page 8: Installation Guide

    8-9. It is recommended to leave the battery backup strap attached to the power supply for use when needed. 2 9V alkaline batteries (not included) will be required for its use. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...
  • Page 9 Do not drag across the floor. Do not rest Test all functions on remote. frame on its side, excessive pressure may damage the legs. STEP 8 Plug the Power Cord into a power source. A surge protector is strongly recommended. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...

  • Page 10: Connecting Strap

    STEP 3 Re-tighten legs. Do not over tighten. Use the remaining strap and repeat on other end of the base. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...

  • Page 11: Syncing Two Bases

    STEP 3 Plug bases back into the power source. The light under the bed will begin to flash, indicating that it is in pairing mode. Control Box 2 Sync Cord Control Box 1 For customer support, visit www.ergomotion.com or call: 1-888-550-3746...

  • Page 12: Remote Control Pairing

    STEP 3 Test all remote functions. If the remote buttons do not impact the adjustable base movements, please repeat the process again or call Ergomotion customer service: 1-888-550-3746 For customer support, visit www.ergomotion.com or call: 1-888-550-3746...

  • Page 13: Headboard Brackets (Not Included)

    T-Bracket to accommodate the headboard. b. To install the T-Bracket, slide the T-Bracket through the end of the headboard bracket. Align the flat side of the T-Bracket plate to the mounting holes on the headboard. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...

  • Page 14: Emergency Battery Backup Strap

    Note: Detach the Battery Backup Strap after the emergency is over, as the system will continue to draw power from the batteries even if not in use. STEP 4 Use the remote control to lower the base to a flat position. For customer support, visit www.ergomotion.com or call: 1-888-550-3746...

  • Page 15: Troubleshooting

    troubleshooting If one or more functions on the bed base have stopped operating: ADJUSTABLE BASE • Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding obstructing the movement of the base.

  • Page 16: Español

    USO EN HOGAR Y ESTANDARES HOSPITALARIOS Las bases para camas Ergomotion son diseñadas para uso puramente hogareño. Esta base no fue diseñada como una cama hospitalaria y no está diseñada para cumplir con estándares hospitalarios. No SEGURIDAD utilice esta base con equipos de terapia de oxigeno TIPO TIENDA o cerca de gases explosivos.
  • Page 17 español estándares de calidad del fabricante. NOTA: Este equipo ha sido probado y cumple con los límites para un dispositivo digital de Clase B, de conformidad con la parte 15 de las Reglas de la FCC. Estos límites están diseñados para proporcionar ESE OLOR A “PRODUCTO NUEVO”...
  • Page 18 español Foot Up/Down = Eleva y baja los pies de la base. deje que el marco descanse de lado ya que excesiva presión puede dañar las patas. Zero-G® Preset = Pos. Zero-G® PASO 8: Conecte la base a una fuente de poder. Un protector de sobrecargas es altamente Flat Preset Position = Pos.
  • Page 19 Alinee la lengüeta con el orificio en el marco (b) y use un perno corto y una tuerca para asegurar el soporte. Asegúrese de que el perno esté apretado. Servicio al Cliente Ergomotion: US 1-888-550-3746 PASO 2: Coloque el espaciador y Soporte-T.

  • Page 20: Français

    Veuillez consulter votre médecin avant d’utiliser la fonction de massage. NORMES D’UTILISATION À LA MAISON ET À L’HÔPITAL Les bases de lit réglable Ergomotion sont conçues uniquement pour une utilisation à domicile. • Gardez le lit dans une position à plat lorsqu'il n'est pas utilisé.
  • Page 21 français fonctionnement. Ceci est normal. Au cours de l’opération, le bras de levage des roues entre en contourner ou de dépasser cette valeur nominale raccourcira la durée de vie du produit et peut contact avec le support de plate-forme de la base. Ce contact peut entraîner un contact métal sur annuler la garantie.
  • Page 22 L’installation Élémentaire Est Complète. Foot motor Port = Moteur du pied de connexion Pour contacter l’assistance clientèle, visitez ergomotion.com ou appelez le : 1-888-550-3746 Head Motor Port = Moteur de la tête de connexion Pour déposer la boîte de commande, relâchez le clip métallique et débranchez les cordons.
  • Page 23 Alignez la languette avec le trou dans le cadre (b) et utilisez un boulon et un écrou courts pour Pour service consommateurs, allez au site web www.ergomotion.com ou appelez le numéro vert fixer le support. Assurez-vous que le boulon est serré.
  • Page 24 notes...
  • Page 25 notes...
  • Page 26 Nationwide Customer Service ©2023 Ergomotion Inc V002_06/2023 Phone 1.888.550.3746 1.805.979.9399 Email info@ergomotion.com www.ergomotion.com Serial Number:...
