- Page 1 Wind Up 85 kg TÜV Lighting Stand...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 30.10.2023, ID: 262255 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features................................9 Operation..............................10 Technical specifications........................15 EU Declaration of Conformity......................16 Protecting the environment......................18 Wind Up 85 kg TÜV Lighting Stand... - Page 4 Wind Up 85 kg TÜV Lighting Stand...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This light stand is intended to be used for the stable mounting and height-adjustable posi‐ tioning of spotlights. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 8 Safety instructions CAUTION! Risk of injury due to tipping of stand on an unsuitable ground! When the stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid ground. CAUTION! Risk of injury due to tipping of the stand from excessive loading! In case of excessive loading, the stand might tip over, causing injury and property damage.
-
Page 9: Features

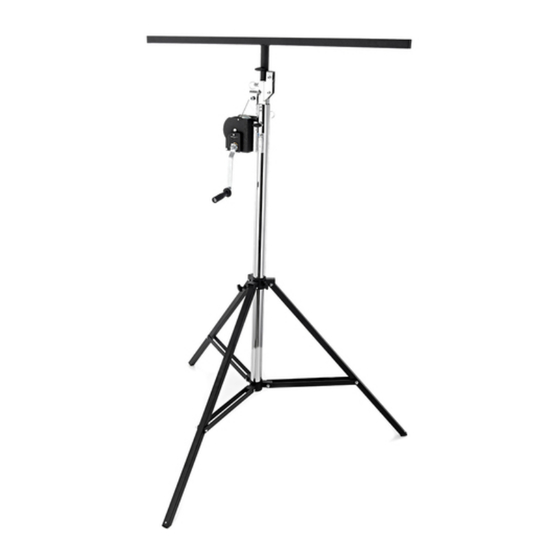

Features Features Special characteristics: Crank stand with three feet Two telescopes, extendable by means of a crank 3/8" mount (suitable for holding speakers with a 35 mm flange) Maximum load capacity: 85 kg Maximum height: 4 m Crossbar included Optional truss adapter: item no. 337351 Optional transport case: item no. -
Page 10: Operation
Operation Operation Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Operation CAUTION! Risk of injury due to tipping of the stand from excessive loading! In case of excessive loading, the stand might tip over, causing injury and property damage. Never exceed the specified maximum load for the stand. CAUTION! Risk of injury due to tipping of the stand from excessive or one-sided loading of the truss beam.
- Page 12 Operation Setup & ö Loosen safety screw [1] on the carriage. Pull safety bolt [11] out of main tube [4] and unfold stand feet [2] until safety bolt [11] engages in the desired position in main tube [4]. Fix the position with safety screw [1] on the carriage. Wind Up 85 kg TÜV Lighting Stand...
- Page 13 Operation In case of uneven ground, loosen safety screw [3] of the adjustable foot, pull out the cor‐ responding safety bolt and align the foot so that the stand is horizontal and stable on the ground. Fix the position with safety screw [3]. Flange the truss beam onto the mount for the truss beam at the top end of stand [10] and tighten the safety screw of the mount.
- Page 14 Operation Disassembly Loosen safety screw [7] on the tube clamp of main tube [4]. Pull safety bolt [12] out of square tube [8] and crank the square tube all the way down with crank [9]. Fix the position of the square tube with safety screw [7]. Loosen safety screw [5] on the tube clamp of square tube [8].
-
Page 15: Technical Specifications
Technical specifications Technical specifications Height, min. 2.05 m Height, max. 4.00 m Mount type 3/8" mount; flange, Æ 35 mm Stand footprint, max. 1.50 m Load, max. (with centric load) 85 kg Transport dimension 1.75 m Weight 25 kg Crossbar dimensions: 1300 mm ×... -
Page 16: Eu Declaration Of Conformity
EU Declaration of Conformity EU Declaration of Conformity Name and address of Thomann GmbH manufacturer / EU-AR Hans-Thomann-Straße 1 96138 Burgebrach Germany THIS DECLARATION OF CONFORMITY IS ISSUED UNDER THE SOLE RESPONSIBILITY OF: Name and address of Thomann GmbH manufacturer Hans-Thomann-Straße 1... - Page 17 EU Declaration of Conformity SIGNED FOR AND ON BEHALF OF: Burgebrach, 07 April 2021 Place and date of issue Wind Up 85 kg TÜV Lighting Stand...
-
Page 18: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
