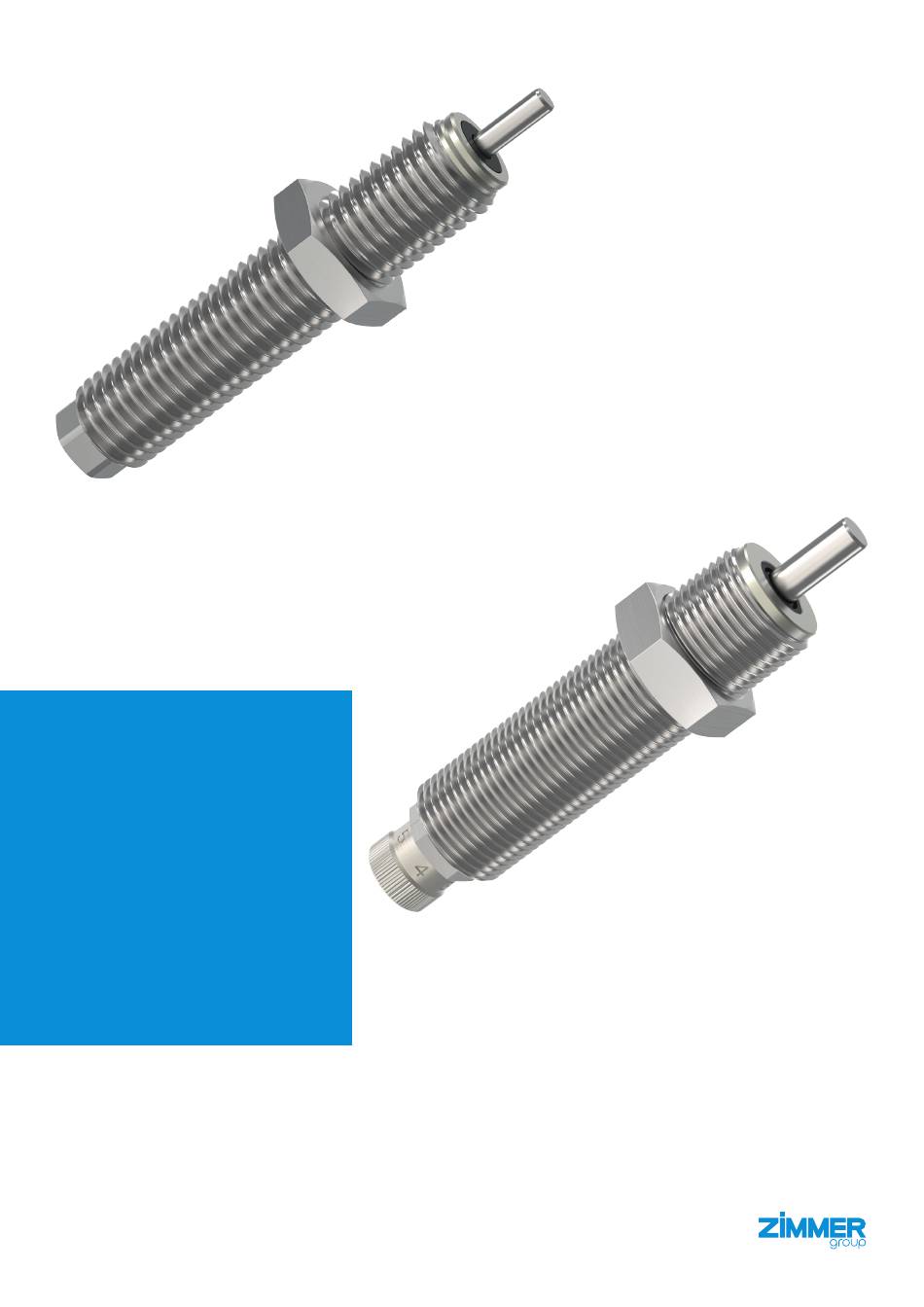

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Industrial shock absorber, hydraulic PowerStop DDOC00335 THE KNOW-HOW FACTORY www.zimmer-group.com...
-
Page 3: Table Of Contents
10.2.6 Installing the side load adapter (PBV) ................................26 10.2.7 Setting the side load adapter ....................................27 11 Commissioning ..................................29 11.1 Operating temperature during commissioning, operation .............................29 12 Service life ....................................30 13 Maintenance ....................................31 Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... - Page 4 INSTALLATION AND OPERATING INSTRUCTIONS:PowerStop 14 Decommissioning/disposal ..............................31 15 Declaration of Incorporation ..............................32 Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
-
Page 5: Supporting Documents
Ö The warning symbols are assigned according to the type of danger. INFORMATION This category contains useful tips for handling the product efficiently. Failure to observe these tips will not result in damage to the product. This information does not include any information relevant to health or workplace safety. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 6: Safety Notices
• Use of the product under extreme conditions, such as aggressive fluids or abrasive dusts • Additional drilled holes or threads Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. ► Note the corresponding protection variants if the product is to be used under extreme conditions. ► For more information, refer to the "Protection variants" section. -
Page 7: Proper Use
► The piston rod of the product may only be subjected to pressure. ► Never subject the piston rod to tension. Ö Zimmer GmbH shall accept no liability for any damage caused by improper use. The operator bears sole responsibility. -
Page 8: Personnel Qualification
Persons who work with the product must be familiar with the valid safety regulations and laws as well as the standards, guidelines and laws listed in this document. Personnel who work with the product must have facility-issued authorization to commission, program, configure, operate, maintain and also decommission this product. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 9: Product Description
Material damage and malfunction in case of non-compliance ► Please note that the product reacts with an increased counterforce if the specified speed range is exceeded. Ö The product can be overloaded because of this. ► Please note that the product reacts with a reduced counterforce if the speed range falls short of the specified value. Ö The product cannot achieve the full energy absorption because of this. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 10: Protection Variants
The wiper protects the product against liquids and aerosols, such as cooling lubricants, oils, oil mist and hydraulic media. Bellows (B) The bellows offer maximum protection when used in a dirty environment. It protects the product against dirt and liquids. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 11: Head Variants
TPC material. The plastic head is suitable for soft opposing materials and for noise reduction. The distance between the housing and the bottom of the head corresponds to the maximum stroke of the respective product. Because of this, the product has an integrated fixed stop. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 12: Functional Description
Thus the stroke that results or that is necessary for the application can be lower than the maximum stroke of the product. ► For more information, refer to the "Setting the stroke and fixed stop" section. Force [N] Hard Medium Soft/Supersoft Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 13: Bypass Function
► Make sure that the energy absorption per hour does not exceed the maximum energy absorption. The energy absorption per hour at which the product is placed under load results from the energy absorption per stroke and the cycle time in continuous operation. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 14: Operation Modes
In cases with rotational loads, the distance of the product to the instant center plays an important role. In addition, in case of rotational movements, the position of the swiveling component to be damped can influence the impact angle in the impact point and in the end position. INFORMATION The product is approved for a maximum impact angle, which limits the maximum lateral forces acting upon it. ► Please note that a side load adapter must be installed if the maximum permitted impact angle is exceeded. ► For more information, refer to the "Installing the side load adapter (PBV)" section. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 15: Technical Data
► Please note that the manual adjustability of the function parameters must be taken into account for products from the Adjustable Energy series. INFORMATION The specified technical data apply to an ambient temperature of 20–25 °C. ► Please contact Customer Service for help designing the product for ambient temperatures of < 0 °C and > 40 °C. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 16: Accessories
INSTRUCTIONS:PowerStop 8 Accessories INFORMATION If any accessories not sold or authorized by Zimmer GmbH are used, the function of the product cannot be guaranteed. Zimmer GmbH accessories are specifically tailored to the individual products. ► For optional accessories and those included in the scope of delivery, refer to our website. -
Page 17: Installation
► Verify the permitted load capacity of the required screw connections in accordance with VDI 2230. ► When tightening the lock nut, adhere to the specified tightening torque with a maximum deviation of ± 10 %. ► Please note that the angular deviation between the product and the weight to be damped must not exceed the maximum impact angle. INFORMATION Further installation information: • The lock nut is included in the scope of delivery. • A clamp flange can be used as an alternative for installation. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 18: Installing The Product
► Install the product at the desired position on the housing using the thread. ► Position the product with the hexagon using a hexagon key. ► Secure the product using the lock nut. Hexagon key Lock nut Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 19: Setting Adjustable Energy
► Start with a load on the product that is as low as possible. ► Increase the load gradually until the actual operating point of the system is reached. ► Adjust the settings of the product iteratively. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 20: Setting The Stroke And Fixed Stop
External fixed stops for the version without bellows using accessories: • Stop sleeve • Sensor stop sleeve External fixed stops using the mounting piece: • Embedding in the mounting piece • Adjusting a stop screw Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... - Page 21 ► Please note that the product setting differs depending on the stroke limitation used. ► Set the external fixed stop to attain the most time-efficient shock absorption possible. Ö This reduces the stroke and thus the energy absorption of the product. Ö This prevents slow retraction times up to the maximum stroke. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
-
Page 22: Installing Accessories
► Before installing an accessory, make sure it is suitable for use with the selected variant. ► You can find information on our website. ► Please contact Customer Service if you have any questions. 10.2.1 Installing the lock nut (PVM) ► Screw the lock nut onto the external thread of the product. ► Tighten the lock nut. Lock nut Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 23: Installing The Clamp Flange (Pks, Pkp)
► Please note that the mounting screws are not part of the scope of delivery. You can use a clamp flange to connect the product to the mounting piece more easily. The clamp flange can be installed on the product orthogonally or parallel. A lock nut is not required. ► Screw the product into the clamp flange. ► Mount the clamp flange to the mounting piece using the mounting screws. Orthogonal installation (PKS) Parallel installation (PKP) Mounting screw Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 24: Installing The Pressure Chamber Seal (Pdd)
Ö This is done to set the end stop and the damping stroke. ► Counter the stop sleeve using the lock nut. ► Place the tool on the wrench flats. Lock nut Wrench flats Stop sleeve Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 25: Installing The Sensor Stop Sleeve (Psh)
Ö This is done to set the end stop and the damping stroke. ► Counter the stop sleeve using the lock nut. ► Place the tool on the wrench flats. Lock nut Wrench flats Sensor stop sleeve Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 26: Installing The Side Load Adapter (Pbv)
► Secure the assembly using the lock nut on the product or the side load adapter lock nut on the mounting piece. Hexagon key Side load adapter Lock nut Wrench flats Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 27: Setting The Side Load Adapter
The piston rod is subject to a load because the lateral forces are dissipated by the pin guide. If the maximum stroke is reached, the pin sits on the fixed stop of the product and thus fulfills the function of the integrated fixed stop. The pin protrudes from the pin guide in this process to ensure an impact angle of 15° in the end position. Use the following setting for rotational applications. Stroke = 0 Stroke = maximum value Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... - Page 28 Non-compliance may result in material damage. An incorrect setting of the side load adapter can lead to a collision with the component. ► Set the side load adapter so that the impact angle is between 0°–15° Stroke = 0 at maximum stroke. Stroke = maximum value Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
-
Page 29: Commissioning
► Please note that when setting the product, the operating temperature must be reached for later continuous operation. ► Please contact Customer Service if you have any questions. The product heats up during operation due to damping. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 30: Service Life
The products are continually tested in an internal endurance test, where the energy load per hour and the installation situation correspond to the worst-case conditions. The test takes place in a clean environment and at a room temperature of 20–25 °C. The following values were determined under laboratory conditions: Product series Operating cycles Mini Energy 5 million Standard Energy 10 million High Energy 15 million Adjustable Energy 15 million Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... -
Page 31: Maintenance
► Disconnect the product completely from the power supply. ► Dispose of the components properly according to the material groups. ► Comply with the locally applicable environmental and disposal regulations. Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com... - Page 32 Machinery and an EC Declaration of Conformity has been drawn up in accordance with Annex II 1 A. Michael Hemler Rheinau, Germany, 2021-08-20 Authorized representative for the (Place and date of issuance) Martin Zimmer compilation of relevant technical (Legally binding signature) documents Managing Partner Zimmer GmbH • Im Salmenkopf 5 • 77866 Rheinau, Germany • +49 7844 9138 0 • www.zimmer-group.com...
