Shimpo DT-5TG Instruction Manual

Aros COOOGOOOorStG 0.0 : http://www 1718veb. net
FEATURES:
© Multiple purpose digital tachometer measures
rotational, linear, and flow rate speeds. If desired,
this unit can also function as an elapse time
counter or ratiometer.

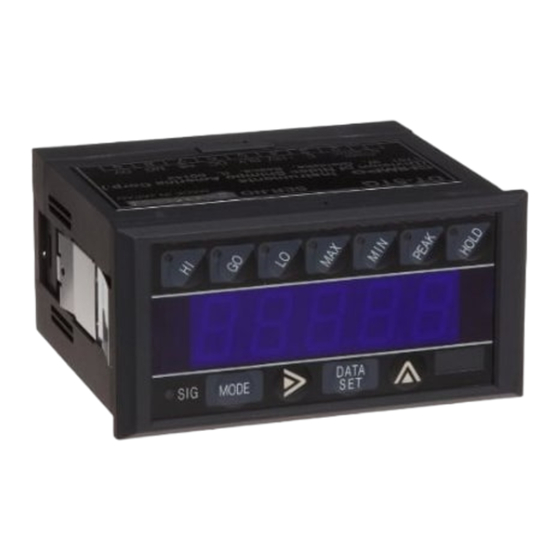

New Digital Tachometer
@An insertion of new cassette type adapter
increases functions. (CASSETTE TYPE
OPTIONAL UNIT)
(including DC POWER MODEL)
Instruction Manual
@ All functions are easily set via front panel keys.
@Easy mounting, no brackets or screws are
required.
e Any AC voltage between 85 and 264V will power
to DT-5TG.
{DC powered DT-5TG-DC:DC9 ~35 V)
* Thank you for your purchase of SHIMPO new Digital Tachometer/ Speedometer DT-5TG.
IMPORTANT:Read
rule for safe installation, operation and instruction manual carefully and SAVE
THIS
INSTRUCTION MANUAL.
(POWER)
Make sure AC voltage is between 85 and 264V. (DC powered DT-5TG-DC:DC9 ~35 V)
(INPUT SIGNAL WIRE)
(TERMINAL)
After inserting wires tighten terminals securely.
(ENVIRONMENT)
Do not use it in the place of vibration or shock.
Use it in the place of normal temperature and no dew.
Do not use it in the hazardous area.
