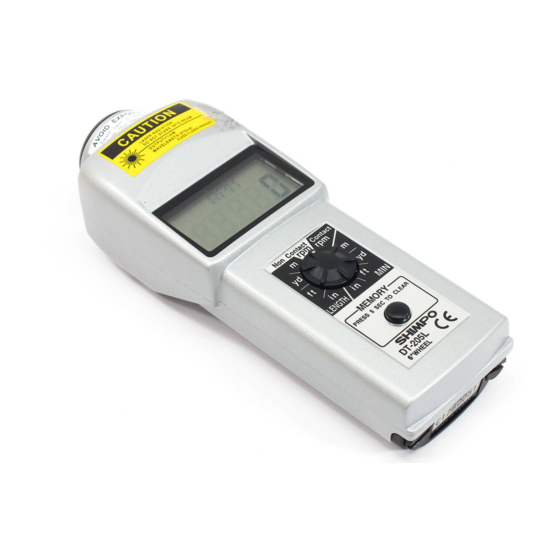

Model DT-205L
Handheld LCD Digital
Laser Tachometer
Congratulations on your purchase of a Shimpo DT-205L digital
laser tachometer! We trust you will enjoy many years of
professional results from your Shimpo tachometer.
Please read the entire instruction manual thoroughly before initial
set-up and operation; the information contained herein will aid
you in operating your Shimpo tachometer safely and with
excellent results.
If you have any questions regarding our product(s), call your
local Shimpo representative or contact Shimpo Instruments
directly for assistance.
Inspection/Standard Accessories
If upon delivery shipping damage is detected, do not operate
tachometer. Notify shipping carrier immediately for damage
claim instructions. Refer to nameplate and record serial number
for future reference.
Items included with the DT-205L are:
• Carrying case
• Cone adapter
• 200L adapter
• 6" master wheel
• Reflective tape
• NIST certificate
Instruction Manual
Features and Benefits
The Shimpo DT-205L is a battery-operated, microprocessor-
controlled, non-contact/contact tachometer that utilizes a laser
beam for movement detection. In the non-contact mode a laser
beam measures RPM when directed towards a shaft (or any other
rotating mechanism marked with a small piece of reflective tape).
The included 200L adapter allows for contact measurement via a
rubber tip cone attachment or the included 6" master linear wheel.
The DT-205L tachometer incorporates the latest microprocessor
and laser technology and offers:
• Multi-mode capability measures RPM, mPM, YPM, FPM,
IPM and total meters, yards, feet and inches
• Large memory capacity allows up to 13 measurements to
be stored in memory
• Single chip microprocessor ensures reliability and low
maintenance
• Safely measures RPM (non-contact mode) from up to 14
feet away
• Oversized 5-digit LCD display permits easy reading
• Long battery life (up to 40 hours of continuous use)
• Rugged die-cast aluminum housing provides exceptional
durability
• Extended measuring range (6 - 99,999 rpm) covers wide
range of applications
Important Safety Instructions
Do not point the laser beam into eyes as permanent
eye damage may occur! Shimpo Instruments does
not condone usage inconsistent with product's labeling
and warning.
When using the 6" master wheel, do not use the
extension shaft - the wheel may fly off the shaft and
cause damage.
Although the tachometer alone is able to achieve the
higher ranges listed in the Range and Accuracy table
on page 3, the master wheel has a maximum speed
limitation of 5,000 FPM (for safety reasons).
Advertisement
Related Manuals for Shimpo DT-205L
Summary of Contents for Shimpo DT-205L
-
Page 1: Important Safety Instructions
• Oversized 5-digit LCD display permits easy reading • Long battery life (up to 40 hours of continuous use) Congratulations on your purchase of a Shimpo DT-205L digital • Rugged die-cast aluminum housing provides exceptional laser tachometer! We trust you will enjoy many years of durability professional results from your Shimpo tachometer. -
Page 2: Display Panel
Display Panel Operating Procedures Non-Contact Measurement 2. Bring cone into contact with the shaft. Apply only enough 1. Place a small piece of reflective tape pressure to avoid slippage. (included) on the shaft or moving 3. Press and hold the power switch. During engagement the element (disc, pulley, etc.) whose display will reflect the proper RPM while the unit RPM speed is to be measured. -
Page 3: Battery Replacement
The following readings are stored in memory for 5 minutes after adapter and 6” master wheel, the following industrial units of release of the power switch: measurement are achieved: • Last reading MODEL DT-205L • Maximum reading R: REVOLUTIONS SINGLE RANGE ACCURACY RESOLUTION... -
Page 4: Troubleshooting
INDEMNIFICATION & LIMITATION OF DAMAGES: Buyer agrees to indemnify and hold Shimpo Instruments harmless from and against all claims and damages imposed upon or incurred arising, directly or indirectly, from Buyer’s failure to perform or satisfy any of the terms described herein. In no event shall Shimpo Instruments be liable for injuries of any nature involving the product, including incidental or consequential damages to person or property, any economic loss or loss of use.
