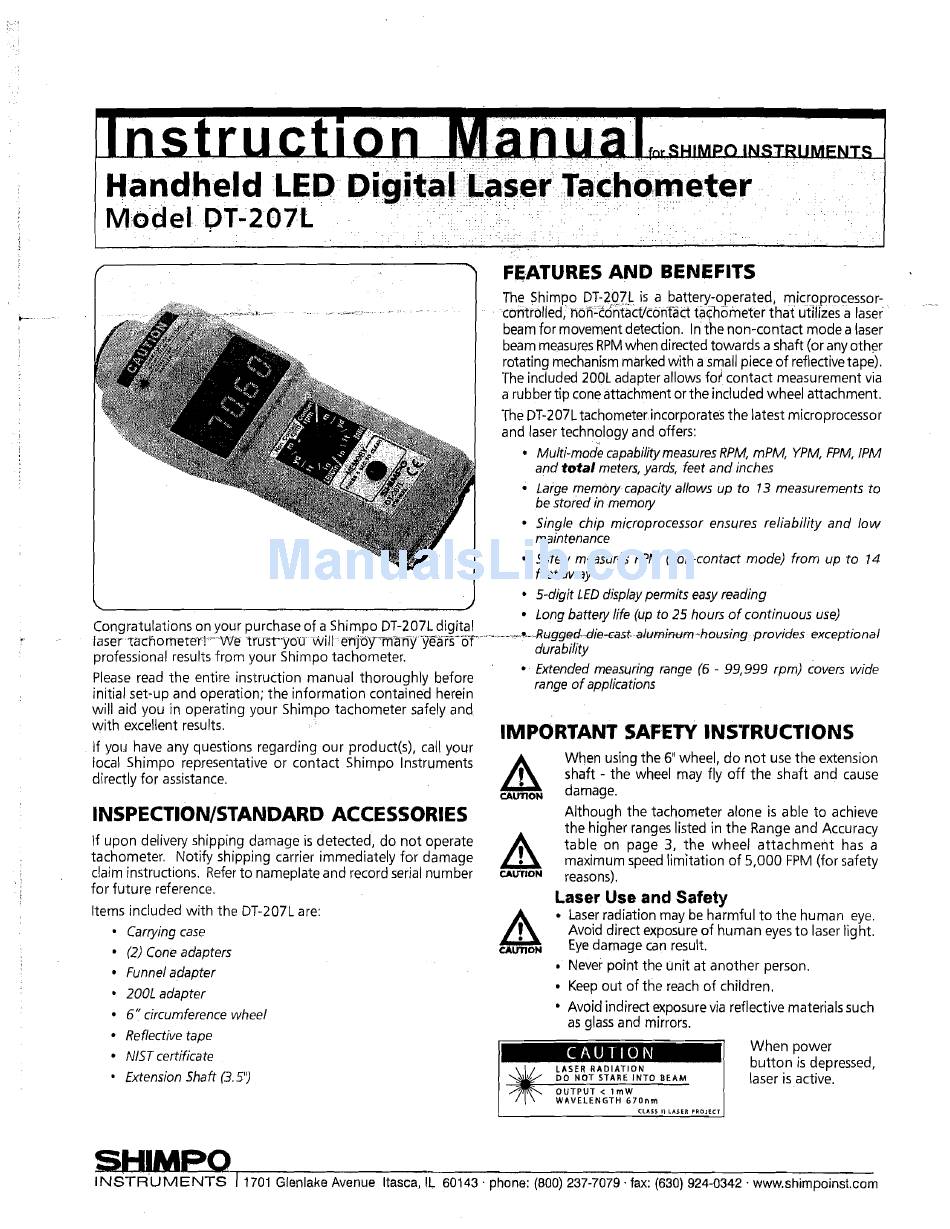

Shimpo DT-207L Instruction Manual

Handheld LED Digital Laser Tachometer
Model DT-207L
Congratulations on your purchase of a Shimpo DT-207LdigitaI
laser -rachomete-r!-We trust-you will enjoy-many yFaF5"df
professional results from your Shimpo tachometer.
Please read the entire instruction manual thoroughly before
initial set-up and operation; the information contained herein
will aid you in operating your Shimpo tachometer safely and
with excellent results.
If you have any questions regarding our product($, call your
local Shimpo representative or contact Shimpo Instruments
directly for assistance.
INSPECTIONISTANDARD ACCESSORIES
If upon delivery shipping damage is detected, do not operate
tachometer. Notify shipping carrier immediately for damage
claim instructions. Refer to nameplate and record serial number
for future reference.
Items included with the DT-207L are:
Carrying case
(2) Cone adapters
Funnel adapter
200L adapter
6" circumference wheel
Reflective tape
NlST certificate
Extension Shaft
(3.5'))
FEATURES AND BENEFITS

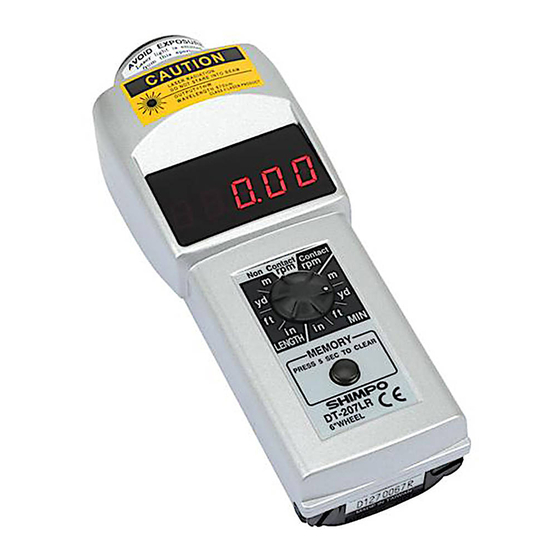

The Shimpo DT-207L is a battery-operated, microprocessor-
controlled, non~~ontacVconfact taCh6meter that utilizes a laser
beam for movement detection. In the non-contact mode a laser
beam measures RPM when directed towards a shaft (or any other
rotating mechanism marked with a small piece of reflective tape).
The included 200L adapter allows for contact measurement via
a rubber tip coneattachment or the included wheel attachment.
The DT-207L tachometer incorporates the latest microprocessor
and laser technology and offers:
Multi-mode capability measures RPM, mPM, YPM, FPM, IPM
and total meters, yards, feet and inches
Large memory capacity allows up to 73 measurements to
be stored in memory
Single chip microprocessor ensures reliability and low
maintenance
Safely measures RPM (non-contact mode) from up to
74
feet away
Edigit LED djsplay permits easy reading
Long battery life (up to 25 hours of continuous use)
-
.--
*-
=- Ruggeddie-cast alurnintrm-housing provides exceptional
durability
Extended measuring range
(6
-
99,999 rpm) covers wide
range of applications
IMPORTANT SAFEN INSTRUCTIONS
A
When using the 6" wheel, do not use the extension
shaft
-
the wheel may fly off the shaft and cause
c a u n 0 N
damage.
Although the tachometer alone is able to achieve
the higher ranges listed in the Range and Accuracy
table on page 3, the wheel attachment has a
maximum speed limitation of 5,000 FPM (for safety
UUTloN
reasons).
Laser
Use
and Safety
Laser radiation may be harmful to the human eye.
Avoid direct exposure of human eyes to laser light.
,,,
Eye damage can result.
Never point the unit at another person.
Keep out of the reach of children.
Avoid indirect exposure via reflective materials such
as glass and mirrors.
L A S E R RADIATION
D O NOT STARE INTO BEAM
WAVELENGTH 6 7 0 n m
CI.AS5 Il L A S E R
P R O l E C T
When power
button is depressed,
laser is active.
l NSTR UM ENTS
1
