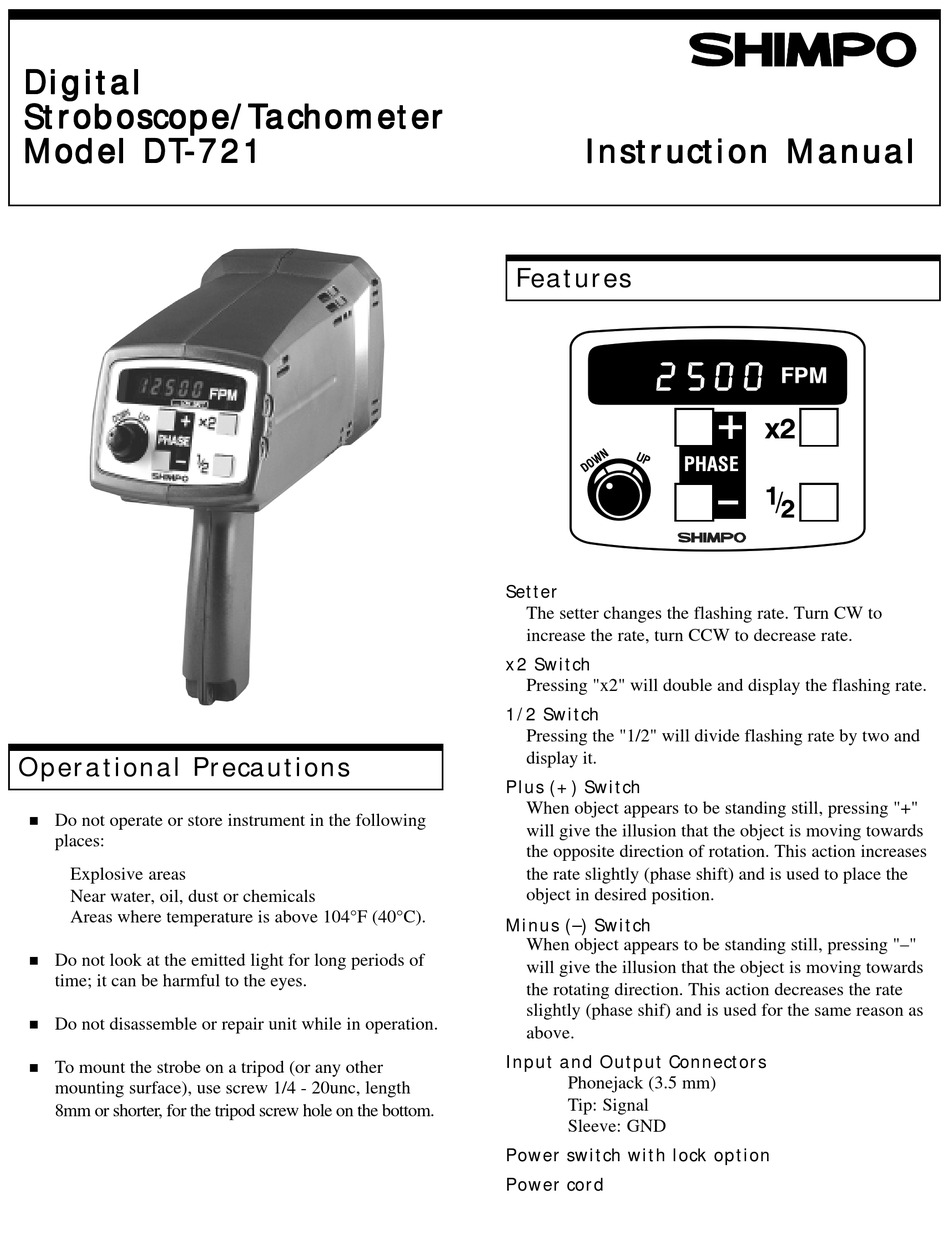

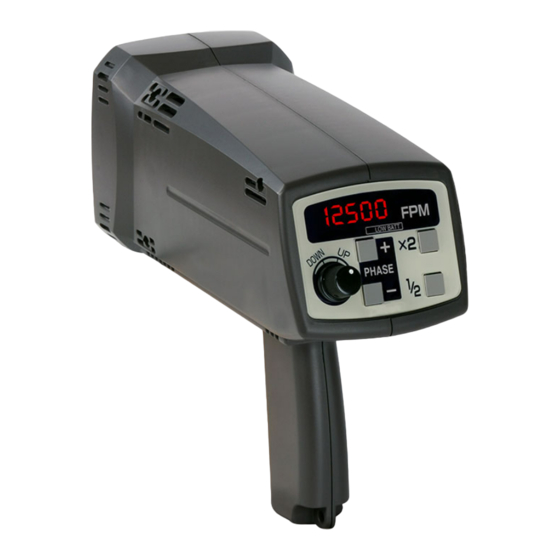

Shimpo DT-721 Instruction Manual

Digital Digital
Digital Digital Digital
Stroboscope/Tachometer Stroboscope/T Stroboscope/T
Stroboscope/T Stroboscope/T
Model DT Model DT -721 -721
Model DT Model DT-721 Model DT -721 -721
Operational Precautions
! Do not operate or store instrument in the following
places:
Explosive areas
Near water, oil, dust or chemicals
Areas where temperature is above 104°F (40°C).
! Do not look at the emitted light for long periods of
time; it can be harmful to the eyes.
! Do not disassemble or repair unit while in operation.
! To mount the strobe on a tripod (or any other
mounting surface), use screw 1/4 - 20unc, length
8mm or shorter, for the tripod screw hole on the bottom.
achometer achometer achometer
achometer
Instruction Manual Instruction Manual
Instruction Manual Instruction Manual Instruction Manual
Features
Setter
The setter changes the flashing rate. Turn CW to
increase the rate, turn CCW to decrease rate.
x2 Switch
Pressing "x2" will double and display the flashing rate.
1/2 Switch
Pressing the "1/2" will divide flashing rate by two and
display it.
Plus (+) Switch
When object appears to be standing still, pressing "+"
will give the illusion that the object is moving towards
the opposite direction of rotation. This action increases
the rate slightly (phase shift) and is used to place the
object in desired position.
Minus (–) Switch
When object appears to be standing still, pressing "–"
will give the illusion that the object is moving towards
the rotating direction. This action decreases the rate
slightly (phase shif) and is used for the same reason as
above.
Input and Output Connectors
Phonejack (3.5 mm)
Tip: Signal
Sleeve: GND
Power switch with lock option
Power cord
