Quick Start
True RMS Industrial
Multimeter
MODEL DM93–2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM93-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FLIR DM93-2

Summary of Contents for FLIR DM93-2

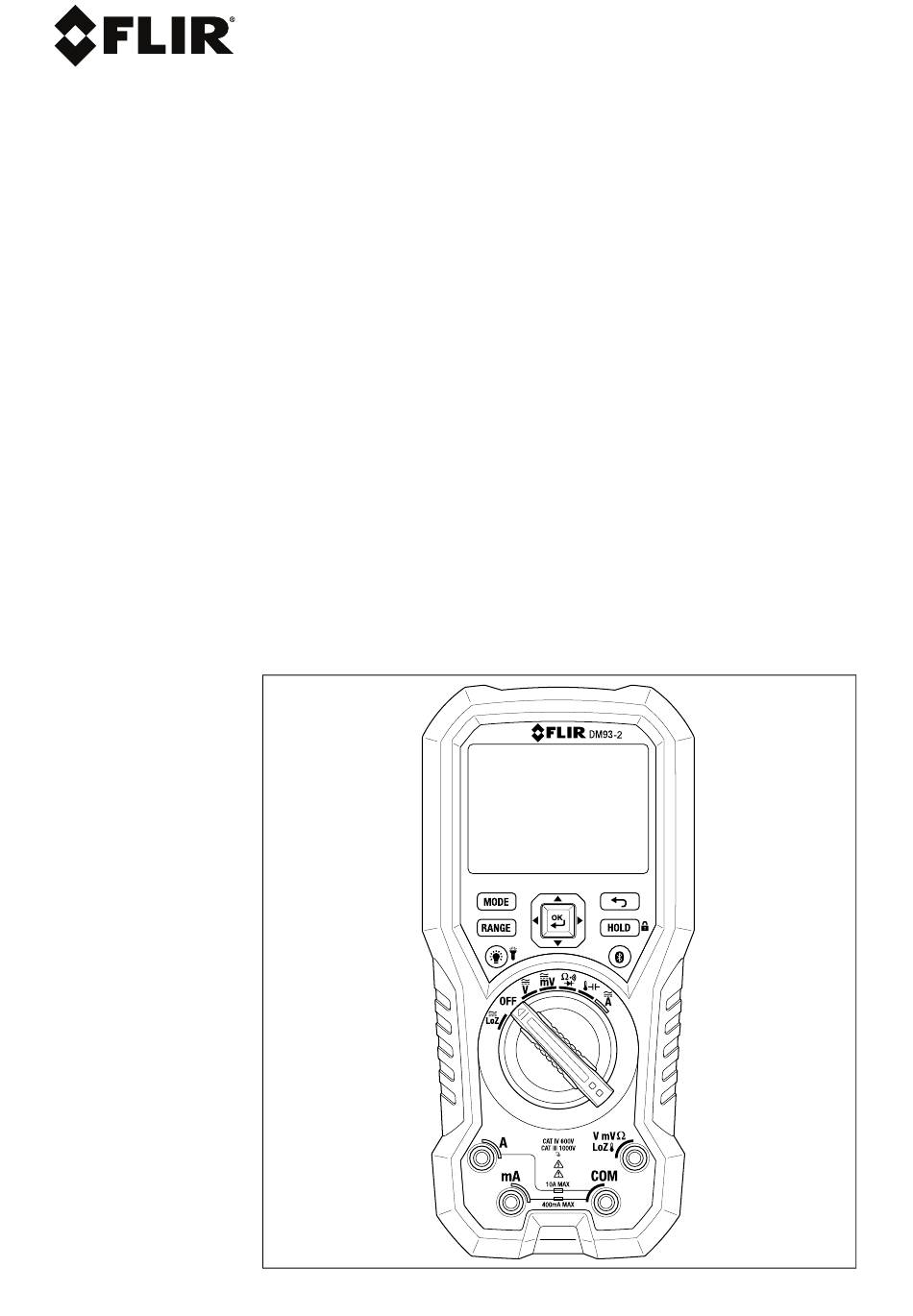

  • Page 1 Quick Start True RMS Industrial Multimeter MODEL DM93–2...

  • Page 2: Safety Statements

    Quick Start (en) Note: Please refer to the User Manual for complete safety and op- erational instructions: https://support.flir.com. Additional language translations are available at the link above. SAFETY STATEMENTS WARNING • Do not operate this device if you do not have the correct knowledge. Incor- rect operation can cause damage, shock, injury or death to persons.

  • Page 3: Product Description

    PRODUCT DESCRIPTION 1. Mode and function indicators 2. Primary display digits 3. Bar graph display 4. MODE button (short press to manually select modes) 5. RANGE button (short press to manually select ranges) 6. Backlight (short press) and Worklight (long press) button 7.

  • Page 4: Function Switch

    FUNCTION SWITCH Low impedance voltage measurements. Short press MODE to manually select AC or DC (or allow Auto-Select to make the selection). Meter is powered down. Measure Voltage. Short press MODE to manually select AC or DC (or allow Auto-Select to make the selection). Measure millivolts.

  • Page 5: Voltage Measurements

    Exit an extended icon function. Short press to enable/disable the display backlight. Long press to enable/disable the Worklights. Enable/disable Bluetooth communication. VOLTAGE MEASUREMENTS WARNING Use extra care when measuring voltages > 35 V DC and 25 V AC RMS. 1. Set the function switch to the V, mV, or LoZ position. 2.

  • Page 6: Diode Tests

    3. Short press MODE to select continuity manually. 4. Touch the tips of the probes across the circuit under test. 5. If the resistance is 30 ± 5 Ω, or lower, the meter will beep. DIODE TESTS WARNING Remove power to the device under test before taking diode measurements. 1.

  • Page 7: Current Measurements

    1. With the meter OFF, connect a Type K thermocouple to the me- ter’s input terminals (negative lead to the COM terminal and the positive lead to the terminal). 2. Set the function switch to the position . 3. Short press MODE to select the desired temperature units manually.

  • Page 8: Limited Lifetime Warranty

    Apple Store® or Google Play™ and follow the application on- screen prompts. See the User Manual for complete details. LIMITED LIFETIME WARRANTY This product is protected by FLIR’s Limited Lifetime Warranty. Visit www.flir.com/testwarranty to read the Limited Lifetime Warranty document.

  • Page 10: Quick Start

    Customer support http://support.flir.com Copyright © 2023, FLIR Systems, Inc. All rights reserved worldwide. Disclaimer Specifications subject to change without further notice. Models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions.
