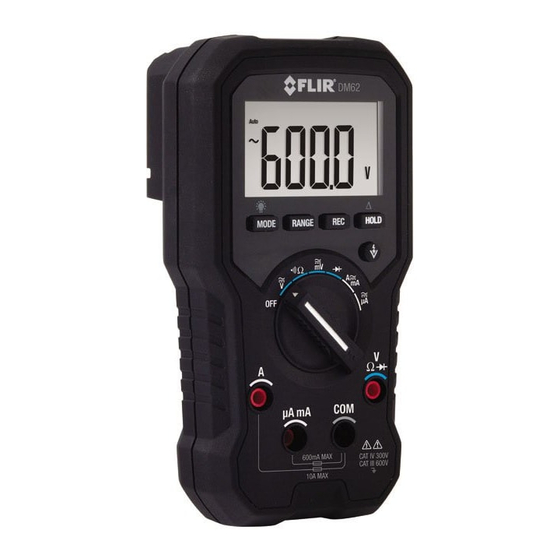

FLIR DM6 Series User Manual

True rms digital multimeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER MANUAL
True RMS Digital MultiMeter Series
Models DM62, DM64, and DM66

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FLIR DM6 Series

Summary of Contents for FLIR DM6 Series

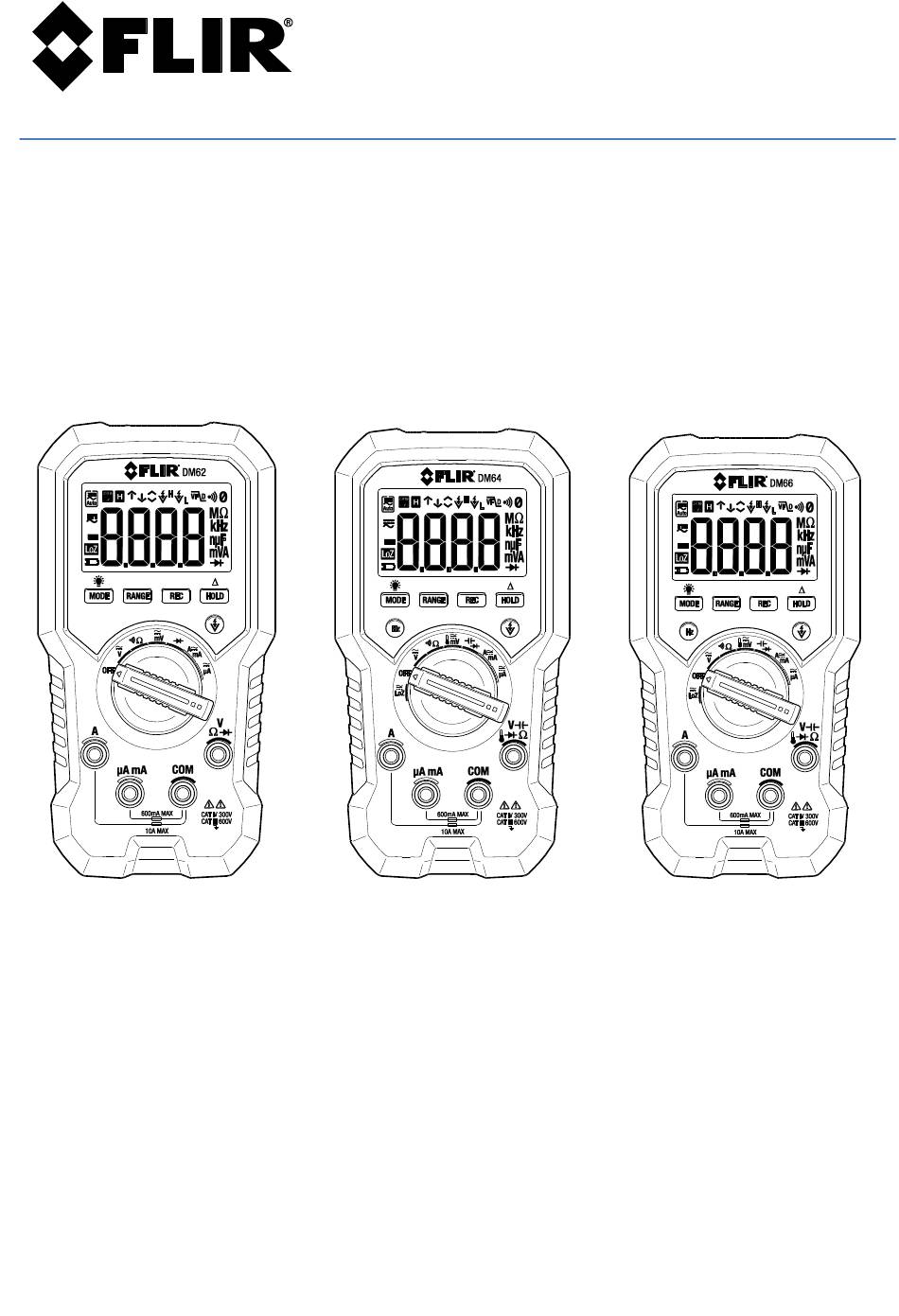

  • Page 1 USER MANUAL True RMS Digital MultiMeter Series Models DM62, DM64, and DM66...

  • Page 2: Table Of Contents

    6.2 Low Impedance (Lo Z) Auto-Voltage Measurements (DM64/66 only) 6.3 Line Frequency Measurements (DM64/DM66 only) 6.4 Resistance and Continuity Measurements 6.5 Capacitance (DM64/DM66) and Diode Measurements 6.6 AC/DC mV and Temperature (DM64/DM66) Measurements FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...
  • Page 3 6.8 NCV (Non-Contact Voltage) Detection MAINTENANCE 7.1 Cleaning and Storage 7.2 Battery and Fuse Replacement 7.3 Disposal of Electronic Waste SPECIFICATIONS 8.1 General specifications 8.2 Electrical Specifications TECHNICAL SUPPORT 10. THREE-YEAR LIMITED WARRANTY FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 4: Advisories

    1. Advisories 1.1 Copyright © 2018, FLIR Systems, Inc. All rights reserved worldwide. No parts of the software including source code may be reproduced, transmitted, transcribed or translated into any language or computer language in any form or by any means, electronic, magnetic, optical, manual or otherwise, without the prior written permission of FLIR Systems.

  • Page 5: Safety

    CAUTION Disconnect the test leads from the test points before changing functions. FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...
  • Page 6 CENELEC DIRECTIVES instruments conform CENELEC Low-voltage directive 2014/35/EC, Electromagnetic compatibility directive 2014/30/EU and RoHS directive 2011/65/EU. FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 7: Introduction

    3. Introduction Thank you for selecting the FLIR DM6x Digital Multimeter. This meter can measure up to 600V and 10A AC/DC. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Features ...

  • Page 8: Meter And Display Descriptions

    COM (negative -) input terminal Positive (+) input terminal for all inputs except Current Battery compartment lock and fuse access Test Lead holders Battery compartment and fuse access Tilt stand Fig. 4-1 Front and Back Views (DM66) FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 9: Rotary Function Selector

    Frequency button (DM64/DM66). Short press to view frequency for AC measurements Short press the Non-Contact Voltage (NCV) button to switch ON/OFF. Use RANGE to select high (H) 24~1000V or low (L) 100~1000V sensitivity FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 10: Display Description

    10. Diode test 11. Main display digits 12. Battery status 13. Lo Z (low impedance) mode* 14. Minus symbol 15. AC and DC symbols 16. Automatic ACV/DCV detection in Lo Z mode* *Models DM64/DM66 only FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 11: Basic Operation And Features

    5. Basic Operation and Features 5.1 Powering the Meter 1. Set the function switch to any position to switch on the meter. 2. If the battery status indicator appears low or if the meter does not power on, replace the two (2) ‘AAA’ batteries. See Section 12.2, Battery Replacement.

  • Page 12: Data Hold

    This mode uses a ‘Lo Z’ low ramp-up impedance (approx. 2.1kΩ for low voltages) to drain ghost voltages. Refer to Section 6.2 Low Impedance Auto-Voltage Measurements for complete details. FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 13: Measurements

    VFD (Variable Frequency Drives) signals for fundamental V & Hz readings. It also improves ACV and Hz reading stability when being used in noisy electrical environments. FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 14: Low Impedance (Lo Z) Auto-Voltage Measurements (Dm64/66 Only)

    Do not use this feature on circuits that could be damaged by such low input impedance. Instead, use the high input impedance voltage modes to minimize loading on such circuits (rotary switch set to the position). FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 15: Line Frequency Measurements (Dm64/Dm66 Only)

    First measure the signal voltage (or current) level and then activate the Hz function in that range to find the optimum trigger level. If the Hz reading becomes unstable, select a lower sensitivity to avoid electrical noise. If the reading shows zero, select a higher sensitivity. FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 16: Resistance And Continuity Measurements

    CAUTION Be sure to remove power from any circuit or device before measuring resistance and continuity. Measuring resistance and continuity on a live circuit will produce false results and may damage the instrument. FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 17: Capacitance (Dm64/Dm66) And Diode Measurements

    Figure 6-5 – Capacitance Testing CAUTION Discharge capacitors before making any measurements. Large value capacitors should be discharged through an appropriate resistance load. Large value capacitors will require ample time before a stable reading is displayed. FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...
  • Page 18 (Fig 6-6, right). The digital display shows OL if the diode is good. Any other readings indicate that the diode is resistive or shorted (defective). Figure 6-6 – Diode testing (forward bias on left; reverse bias on right) FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 19: Ac/Dc Mv And Temperature (Dm64/Dm66) Measurements

    Short press the Hz button to switch the Frequency measurement mode on/off in AC mV mode. Refer to Fig 6-8 for Temperature measurements. Figure 6-7 – AC/DC mV measurements FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...
  • Page 20 (optional) with banana plug to type-K socket to adapt other standard type-K mini plug temperature probes (see the drawing on the right of Fig 6-8, for adaptor illustration). Figure 6-8 – Temperature measurements (optional adaptor shown on right) FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 21: A, Ma, A Current Measurements With Frequency (Dm64/Dm66)

    AC current modes. Frequency is available only on the DM64/DM66 models. Figure 6-9 – Current measurements (µA on left, mA in the center, and A, on right) FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 22: Ncv (Non-Contact Voltage) Detection

    An antenna is located along the top-left end of the meter which detects the electric fields that surround energized, live conductors. It is ideal for tracing live wiring connections, locating wiring breakages and distinguishing between live and earth connections. FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 23: Maintenance

    As with most electronic products, this equipment must be disposed of in an environmentally friendly way, and in accordance with existing regulations for electronic waste. Please contact your FLIR Systems representative for more details. FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 24: Specifications

    V & Auto Voltage modes: 600V DC/AC rms mV, Ohm & others: 600V DC/AC rms Low Battery warning: Below approx. 2.5V Power Supply: 1.5V AAA Size battery x 2 Power Consumption (typical): 3.2mA FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 25: Electrical Specifications

    <5d non-zero residue may appear when backlight is on, which will not affect the specified measuring range and accuracy Signal peak absolute values, including DC bias, less than 130mV peak Signal peak absolute values, including DC bias, less than 1300mV peak FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...
  • Page 26 Final impedances vs display voltages typically are: 12k @100V 100k @300V 240k @600V DC Voltage RANGE Accuracy 60.00mV, 600.0mV, 6.000V 0.3% + 2d 60.00V 0.4% + 2d 600.0V 0.2% + 2d Input Impedance: 10M, 54pF nominal FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...
  • Page 27 Audible Indication: Beeper sound Visible Indication: LCD Backlight Capacitance (DM64/DM66) RANGE Accuracy 20.00nF, 200.0nF 1.5% + 8d 2000nF, 20.00F, 200.0F, 2000F 1.5% + 2d 10.00mF 4.5% + 10d Accuracies with film capacitor or better FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...
  • Page 28 Allow enough settling time for a significant change of ambient temperature. It can take up to an hour for changes > 5 (>9 Type-K thermocouple range & accuracy not included FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 29: Technical Support

    Detection Frequency: 50/60Hz Detection Antenna: Top-left of the meter 9. Technical Support Main Website http://www.flir.com/test Technical Support Website http://support.flir.com Technical support Email TMSupport@flir.com Service/Repair Support Email Repair@flir.com Support Telephone number +1 855-499-3662 option 3 (toll-free) FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...

  • Page 30: Three-Year Limited Warranty

    Any Product that is repaired or replaced under warranty is covered under this 3-Year Limited Warranty for one hundred eighty days (180) days from the date of return shipment by FLIR or for the remaining duration of the applicable Warranty Period, whichever is longer.
  • Page 31 FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. FLIR will pay for returning to Purchaser any Product that FLIR repairs or replaces under warranty.
  • Page 32 Technical Support Website http://support.flir.com Technical Support Email TMSupport@flir.com Service and Repair Email Repair@flir.com Customer Support Telephone +1 855-499-3662 option 3 (toll free) Publication Identification No.: DM6x-en-US Release Version: Release Date: January 2018 Language: en-US FLIR DM6x USER MANUAL Document Identifier: DM6x-en-US_AA...
