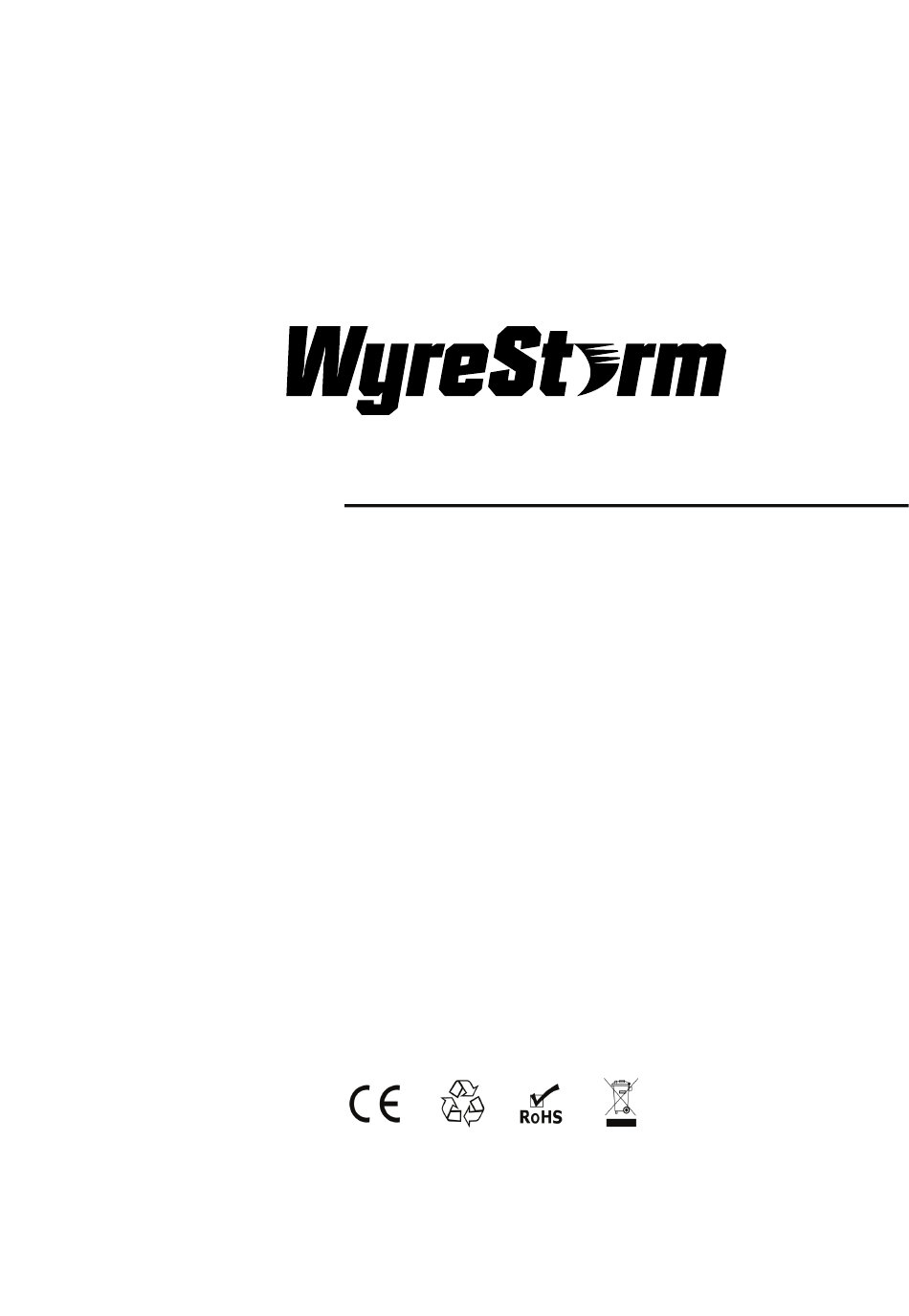

- Page 1 Model No SPL1T801 Operating Instructions Thanks for purchasing our product. Please be sure to read this instruction manual carefully before using our product.
- Page 3 HDMI signal to eight identical HDMI outputs. These eight outputs are synchronized. SPL1T801 has the ability of pre-emphasis and equalization. Series connection of SPL1T801 achieves long distance transmission of HDMI signal of more than 15 meters. SP0108 offers solutions for digital entertainment center, HDTV retail and show...
-
Page 4: Table Of Contents
Contents HDMI Splitter ......................1 Product Overview....................1 Features ........................1 Package Contents....................3 Connections and Operations ................3 Specifications ......................3 Panel Descriptions ....................4 Typical Application....................5 Maintenance......................6 Product Service .....................6 Provided Service ....................6 Mail-In Service.......................6 Warranty ........................7 Warranty Limits And Exclusions................7... -
Page 5: Hdmi Splitter
Easy to Use: Install in seconds, no need of setting. Distribution: Eight identical HDMI outputs. HDMI V1.3B. Notice Wyrestorm Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Page 1... - Page 6 Wyrestorm Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-
Page 7: Package Contents
Connect the HDMI output equipments into SPL1T801. ( Output cables are optional) Insert the DC side of 5v power supply into SPL1T801 and then connect the AC side of the power supply into the wall outlet. Turn on the power. -
Page 8: Panel Descriptions
Wyrestorm VGA : 640x480,800x600,1024x768,1280x1024 Video format supported DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p HDMI Output Video Vertical Frequency Range 60Hz Power Consumption 10 Watts (max.) Power Supply 5VDC Dimensions 235mmL x 132mmW x 32mmH Mass 0.8 Kgs Panel Descriptions ■ Front Panel Indicators of HDMI output. When a HDMI equipment is connected, the ①... -
Page 9: Typical Application
Wyrestorm Rear Panel Power input. ① HDMI output ports ② HDMI input port. ③ Typical Application ■ SPL1T80 Page 5... -
Page 10: Maintenance
Wyrestorm Maintenance ■ Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit. Product Service ■ ● Provided Service Damage Requiring service: The unit should be serviced by qualified service personnel if: The DC power supply cord or AC adaptor has been damaged;... -
Page 11: Warranty
Warranty If your product does not work properly because of a defect in materials or workmanship, Wyrestorm Company (referred to as “the warrantor”) will, for the length of the period indicated as below, （Parts (1) Year， Labor(90) Days） which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 12 Wyrestorm damage, modification, or service by anyone other than a Factory Service Center or other Authorized Service, or damage that is attributable to acts of God. There are no express warranties except as listed under “limited warranty coverage”. The warrantor is not liable for incidental or consequential damages resulting from the use of this product, or arising out of any breach of this warranty.
- Page 13 6755 Buckles Cove Memphis, TN 38133 1-877-HDMI WYRE – Toll Free 901-363-0111 – Office Phone 901-363-0115 – Office Fax Email: info@wyrestorm.com Website: www.WyreStorm.com...
