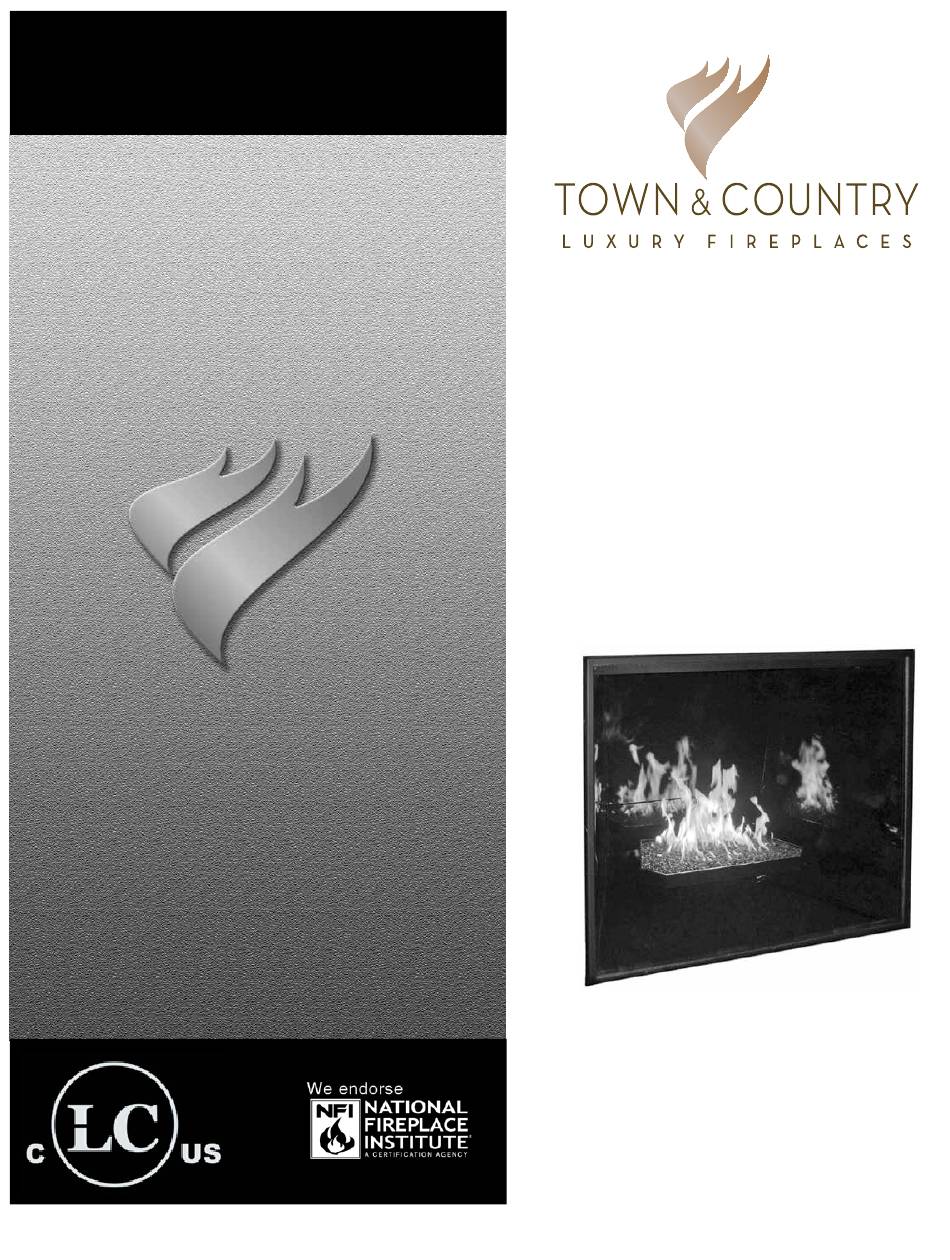

Town & Country Fireplaces TC54 Instructions Manual

Black diamond burner kit
Hide thumbs Also See for TC54:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fireplace and should
be kept together. Refer to the
Instructions for proper gas supply, safety requirements and
operating instructions.
270223-20
Installation and Operating

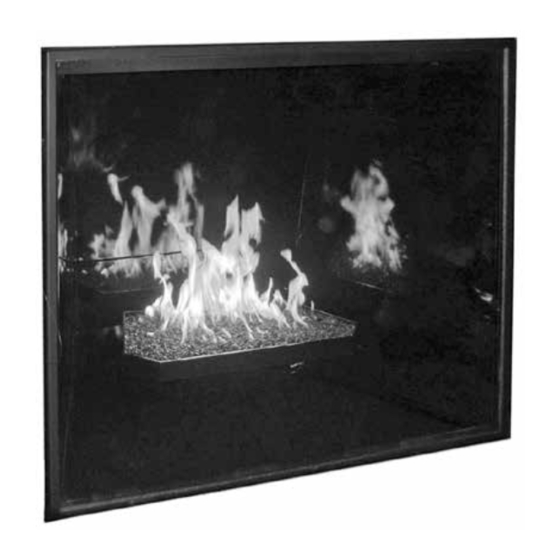

TC54
BLACK DIAMOND
BURNER KIT
INSTRUCTIONS
SKU# 22150048
For TC54 Series D
Fireplaces
SKU# 22150048
100005914

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC54 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC54

Summary of Contents for Town & Country Fireplaces TC54

  • Page 1 Operating Instructions supplied with the fireplace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TC54 BLACK DIAMOND BURNER KIT INSTRUCTIONS SKU# 22150048 For TC54 Series D Fireplaces 270223-20 SKU# 22150048 100005914...

  • Page 2: Package Contents

    Package Contents Figure 1: TC54 Black Diamond burner kit contents. MANIFOLD ASSEMBLY (Including supply tube) BURNER TUBE, FRONT BURNER TUBE, REAR BURNER SHIELD MEDIA SPACER, Rr Center MEDIA SPACER, Fr Center MEDIA SPACER, Front MEDIA SPACER, Rear MEDIA SPACER, Left...
  • Page 3 NOTE: Plug the 4 vacant holes in the bottom of the firebox with #8x1/2” screws. The holes are not required for this style of burner. Figure 2: TC54 Black Diamond burner kit contents. 1. Remove one screw from the center rear of the firebox and use it to attach the manifold assembly.
  • Page 4 Figure 5: Remove access panel. 4. Remove access cover to the valve control center from the right side of the fire box (Figure 5). 5. Attach the center supply tube from the “T” and the pilot gas supply tube to the bulk head fitting and tighten (Figure 6).
  • Page 5 Ignition and sensor wires Bulkhead plate Figure 7: Remove access panel. 6. Feed the ignition and sensor wires through the bulkhead plate to the interface module. (Figure 7). 7. Attach the ignition and sensor wires to the interface module as shown in (Figure 8). Flame sensor wire (white) Ignition wire (red)
  • Page 6 Figure 9: Replace access panel. 8. Re-install the access panel in the right side of the firebox (Figure 9). 9. Place burner shield into unit, flexing right shield leg slightly to clear manifold. Make sure the pilot protrudes through the center hole. (Figure 10). NOTE: The shield sits at an approximately 15 degree angle to the base of the firebox.
  • Page 7 Figure 11: Attach pilot. 10. Cover the glossy surface of the burner shield to prevent surface damage while connecting pilot to the underside of the burner tray. (Figure 11) NOTE: Start screws with fingers first to prevent cross-threading. 11. Place front media spacer into the front of the tray. (Figure 12) Figure 12: Install front media spacer.
  • Page 8 Figure 13: Installing front burner. 11. Install front burner tube by tilting it into the front tray hole until almost fully seated. (Figure 13) Set the air shutter to fully open for Propane or fully closed for Natural gas. 12. Guide tray and burner tube back until the burner tube engages the forward orifice. This can be seen through the rear burner hole.
  • Page 9 Figure 15: Attach tray to shield. 13. Attach burner tray to shield with four screws. (Figure 15) 14. The rear media spacer is now installed. (Figure 16) Figure 16: Rear media spacer. 100005914 SKU# 22150048 270223-20...
  • Page 10 Figure 17: Install Rear burner. 14. Install rear burner by tilting the inlet through the rear hole in the tray. Engage the inlet with the rear orifice. This can be seen from the back of the tray.(Figure 17) Set the air shutter to fully open for Propane or fully closed for Natural gas. 15.
  • Page 11 Figure 19: Left media spacer. 16. Install the left media spacer and secure to front and rear media spacers with two screws. (Figure 17. Install right media spacer and secure to front and rear media spacers with two screws. (Figure 20) Figure 20: Right media spacer.
  • Page 12 Figure 21: Glass media. 18. Apply just enough glass media to cover the burner assembly. (Figure 21 & 22) Use caution not to get any glass media into the pilot slot. NOTE: Too much tumbled glass over the burner will cause sooting with the use of propane gas. Figure 22: Glass media appearance.

  • Page 13: Propane Conversion

    Propane Conversion WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer's instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life.
  • Page 14 Figure 25: Band in NG position. Figure 26: Band in LP position. 6. Slide the pilot adjustment band over and ensure that the hole in the orifice band is showing. (Fig- ure 25 indicates NG position, Figure 26 indicates LP position) 7.

  • Page 15: Gas Pressure Check

    Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from the sup- ply pressure test port or manifold pressure test port. Verify gas pressures with the fireplace lit and on the highest setting. SUPPLY PRESSURE MANIFOLD...

  • Page 16: Burner Flame Adjustment

    Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air to the gas burner. The shutter should be set to fully closed for natural gas or fully open for propane. See Figure 29 for proper flame pattern.

  • Page 17: Parts Diagram

    Parts Diagram (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM.....DESCRIPTION ............PART NO. #1 TC54 BLACK DIAMOND BURNER KIT ......22150048 #2a BURNER TUBE ..............TC54. 50118305 #2b BURNER TUBE ..............TC42. 5011832.A #3 PILOT ASSEMBLY, CONVERTIBLE ........80000525 #4 ORIFICE, NG marked “ND”...
  • Page 18 100005914 SKU# 22150048_270223-20...
  • Page 19 100005914 SKU# 22150048 270223-20...
  • Page 20 © 2023 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer. Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
