INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING:
If the information in these
instructions is not followed exactly, a fire or
explosion may result causing property damage,
personal injury or death.
FOR YOUR SAFETY
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier call
the fire department.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Visit www.townandcountryfireplaces.com for the most recent version of this user manual
280423-24
OPERATOR MANUAL
TC54D.ver2
SERIAL #
TC54D - Version 2
OPERATOR
MANUAL

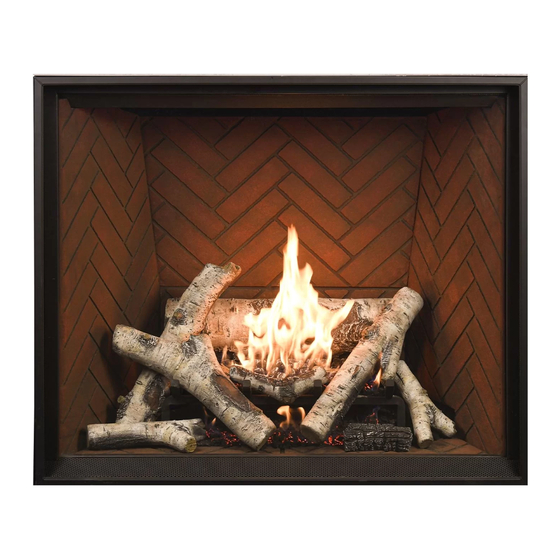

MODEL TC54
SERIES D
DIRECT VENTED
DECORATIVE GAS
APPLIANCE
100000826-50

Advertisement

loading
Need help?

Need help?

Do you have a question about the TC54 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC54 Series

Summary of Contents for Town & Country Fireplaces TC54 Series

  • Page 1 OPERATOR MANUAL INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. FOR YOUR SAFETY Installation and service must be performed by a qualified installer, service agency or the...
  • Page 2 Table of Contents Room Thermostat (Transmitter Operation) Canada Only ... 9 Congratulations on your Town & Country purchase ....2 Remote dimmer control (Light) ......... 10 Caution ..................3 Continuous Pilot/Intermittent Pilot (CPI/IPI) selection ..10 Safety ..................3 Key Lock ................10 Lighting Instructions ..............
  • Page 3 Caution FOR YOUR SAFETY - Do not install or operate your Town & Country fireplace without first reading and understanding this manual. Any installation or operational deviation from the following instructions voids the Town & Country Fireplaces Warranty and may prove hazardous. This appliance and its individual shut off valve must be disconnected from gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).
  • Page 4 Lighting Instructions FOR YOUR SAFETY READ BEFORE LIGHTING - Immediately call your gas supplier from a neighbour's phone. Follow WARNING: If you do not follow these instructions exactly, a the gas supplier's instructions. fire or explosion may result causing property damage, - If you cannot reach your gas supplier, call the fire department.
  • Page 5 First Fire When lit for the first time, the fireplace will emit a slight odor for a couple of hours. This is due to the curing of paints, sealants and lubricants used in the manufacturing process. This condition is temporary. Open doors and windows to ventilate area.
  • Page 6 TRANSMISSION KEY LOCK LOW BATTERY ALARM THERMOSTAT OFF/ ON/SMART ROOM TEMPERATURE * SEE NOTICE REGARDING THERMOSTAT USE SMART CPI MODE SET POINT: TEMPERATURE/LEVEL/STATE DIMMER ON DIMMER ON Figure 2: Proflame 2 LCD screen details. NOTICE: The thermostat function is disabled by default. Thermostat function is not permissible in the USA but is permissible in Canada.
  • Page 7 Fireplace Description The Proflame 2 Remote Control Fireplace consists of three elements: Proflame 2 Remote Control Transmitter. Proflame Integrated Fireplace Control (IFC Module) board and a wiring harness to connect the IFC to the gas valve and stepper motor. Wall mounted Remote Control Receiver (Figure 3). Transmitter (Remote Control with LCD Display) The Proflame 2 Transmitter uses a streamline design with a simple key layout and an informative LCD display (Figure 2).
  • Page 8 PROGRAM BUTTON Figure 3: Wall switch interface side. Figure 6: Proflame 2 remote battery compartment. Figure 5: Town and Country wall switch. Figure 4: Wall switch battery side. Using the Remote Control Transmitter Temperature indication Display With the remote control transmitter in the “OFF” position, press the thermostat and mode keys at the same time.
  • Page 9 Remote Flame Control The Proflame 2 has six (6) flame levels. With the fireplace turned on, and the flame level at maximum height, press the down arrow key once (Figure 9) to reduce the flame height by one step until the flame is turned off.
  • Page 10 Remote dimmer control (Light) The auxiliary function controls the AUX power outlet by the dimmable light control. To activate this function use the Mode Key (Figure 1) to index to the light bulb icon (Figure 13). The intensity of the output can be adjusted through six (6) levels. Use the Up/Down Arrow Keys adjust the output level.
  • Page 11 Linking Remote Handset and apple Device to Fireplace ® Town & Country Fireplaces can be operated remotely by using the remote handset that came with the fireplace, and by using an Blue Tooth enabled apple mobile device and the “TC Fire” app which can be ®...
  • Page 12 Step 2: Procedure for linking / pairing the wall switch to remote handset 1. Press and release Program button on the wall switch once (Figure 17). 2. You will hear 3 beeps from the wall switch. 3. Press and release the on/off button (Figure 18) on the remote handset (within 60 sec.) 4.
  • Page 13 Figure 19: Home screen. Figure 20: Wall switch Figure 21: Add-edit with PIN number. program fields. Using the TC Fire app The app controls two functions: Flame ON/OFF/Flame level and Lighting ON/OFF/Level. The toggle buttons (Figure 24) turn the functions ON and OFF while the sliders increase and decrease the flame and lighting levels.
  • Page 14 Linking Remote Handset and Android Device to Fireplace ® Town & Country Fireplaces can be operated remotely by using the remote handset that came with the fireplace, and by using a Blue Tooth enabled Android mobile device and the “TC Fire” app for Android which ®...
  • Page 15 Step 2: Procedure for linking / pairing the wall switch to remote handset 1. Press and release Program button on the wall switch once (Figure 25). 2. You will hear 3 beeps from the wall switch. 3. Press and release the on/off button (Figure 26) on the remote handset (within 60 sec.) 4.
  • Page 16 Stop Scanning Add/Edit Fireplace Drop Down Menu Stored Fireplace Note: You only see the saved fireplace when your phone is within range of the Bluetooth and someone else is not currently controlling it. Figure 28: Wall switch with Figure 27: Main Screen. PIN number.
  • Page 17 Maintenance CAUTION: Turn off gas and electrical power supply (if applicable) and allow ample time for unit to cool before servicing appliance. It is recommended that the fireplace and its venting should be inspected at least once a year by a qualified service person. Glass Panel: PILOT Warning: Do not operate fireplace with glass panel removed, cracked or...
  • Page 18 Replacing the Light Bulb Step 1: Removing the current light bulb. 1. Remove the screw securing the light cover into the upper heat shield assembly in the top of the fire- box, (Figure 33) then pull the light assembly down slightyly. Insert a small flat screwdriver between the glass lens and the light box.
  • Page 19 Step 2: Installing the new light bulb. 1. Use paper towel or a cloth to hold the new bulb. (Do not touch the bulb directly with your fingers. Oils from your skin can damage the bulb and cause it to fail prematurely.) (IF THE BULB IS TOUCHED ACCIDENTLY, CLEAN IT WITH ALCOHOL BEFORE USING) 2.
  • Page 20 Warranty TOWN & COUNTRY LIMITED LIFETIME WARRANTY GAS PRODUCTS Town & Country extends the following warranty coverage to the original registered purchaser of the product: Limited Lifetime Coverage Limited lifetime coverage is extended to the following components (parts only): • Glass (for thermal breakage only) •...
  • Page 21 TC54D2_280423-24 100000826...
  • Page 22 100000826 TC54D2_280423-24...
  • Page 23 TC54D2_280423-24 100000826...
  • Page 24 © 2023 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer Web site: www.townandcountryfireplaces.com 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
