Gas Pressure Check - Town & Country Fireplaces TC54 Instructions Manual

Note: To test the gas pressure, turn off the gas supply before removing the plug from the sup-
ply pressure test port or manifold pressure test port.
Verify gas pressures with the fireplace lit and on the highest setting.

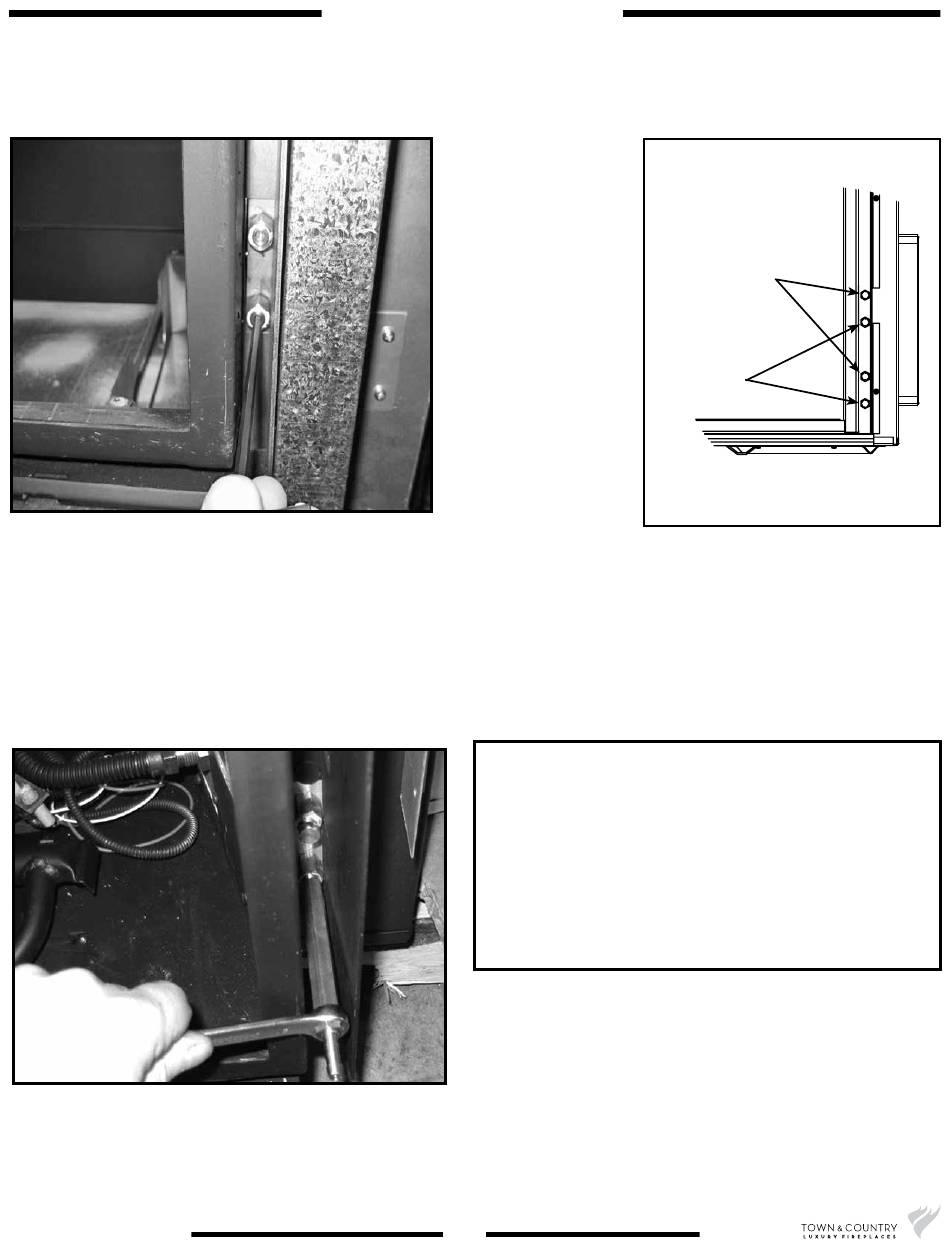

Figure 27: Remove plugs.
1. Remove the plug from the pressure test port. The plug is located between the right side lintel and
firebox side. (Figure 27)
2. Thread the extension test fitting into the open test port. (Figure 28)
3. Attach a pressure gauge onto the fitting.
4. When testing is complete remove the extension test fitting and replace the plug. Thread sealant will
be required to ensure a gas tight connection.
Figure 28: Pressure adjustment.
SKU# 22150048 270223-20

Gas Pressure Check

Supply Pressure
Min. Pressure
(For purpose of input adjustment)
Max. Pressure
Manifold Pressure
Maximum
Minimum
15
SUPPLY
PRESSURE
MANIFOLD
PRESSURE
Correct gas pressure requirement:
Natural Gas
5.0" WC
13.9" WC
3.5" WC
1.6" WC
100005914
Propane
12.5" WC
13.9" WC
10" WC
6.4" WC
