To Connect a GV-I/O USB Box to GV-AS200 Controller
After connecting the card reader to Wiegand A, connect the GV-I/O USB Box that is installed
on GV-LPR to the GV-AS200 Controller.

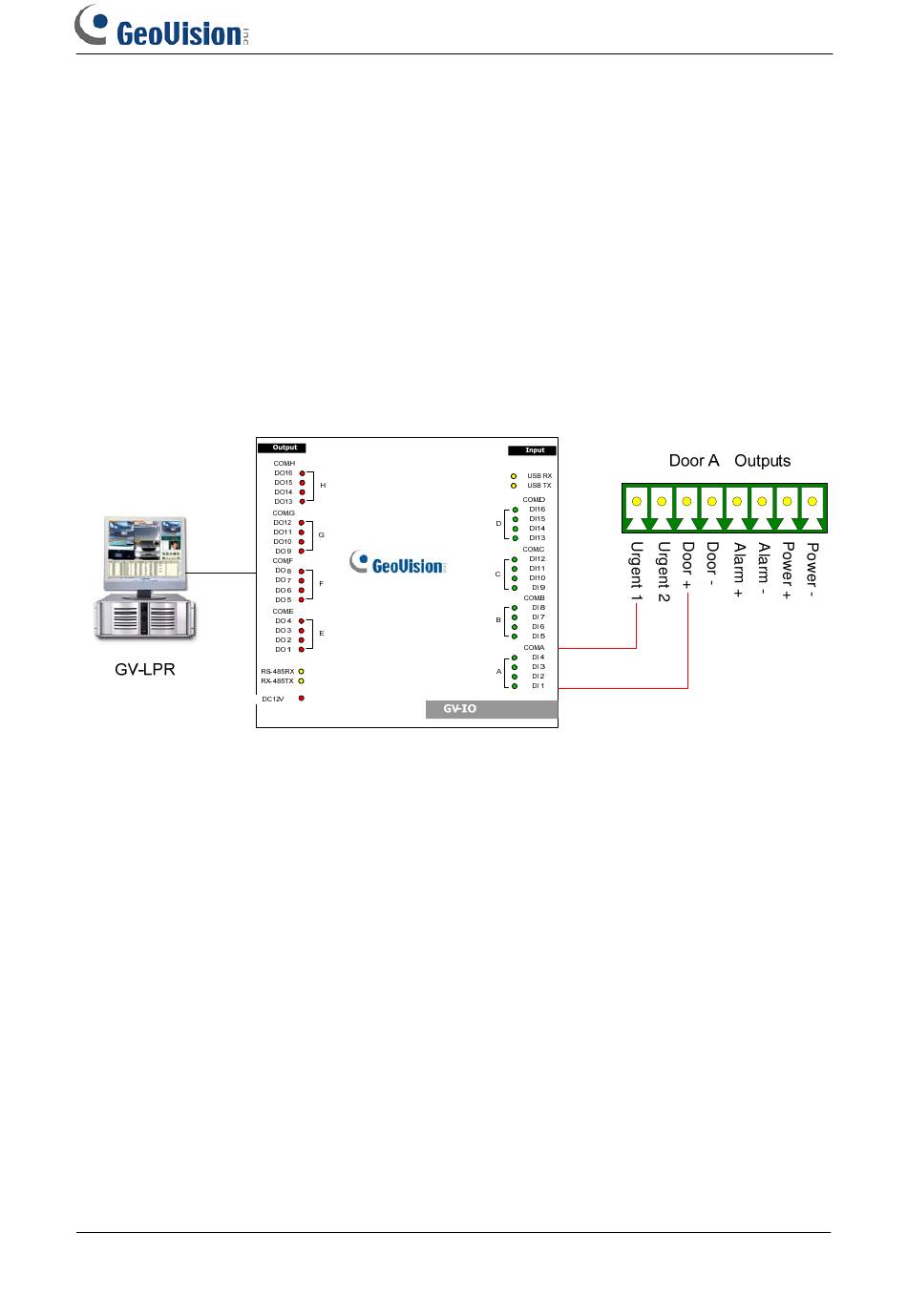

1. Connect the Door + pin of Door A outputs to the DI 1 pin of GV-I/O USB Box. Then
connect the Urgent 1 pin of Door A outputs to the COMA pin of GV-I/O USB Box, as
illustrated below.
Please note don't connect any power to the Door A outputs.
