Summary of Contents for Best Fitness BFLA250

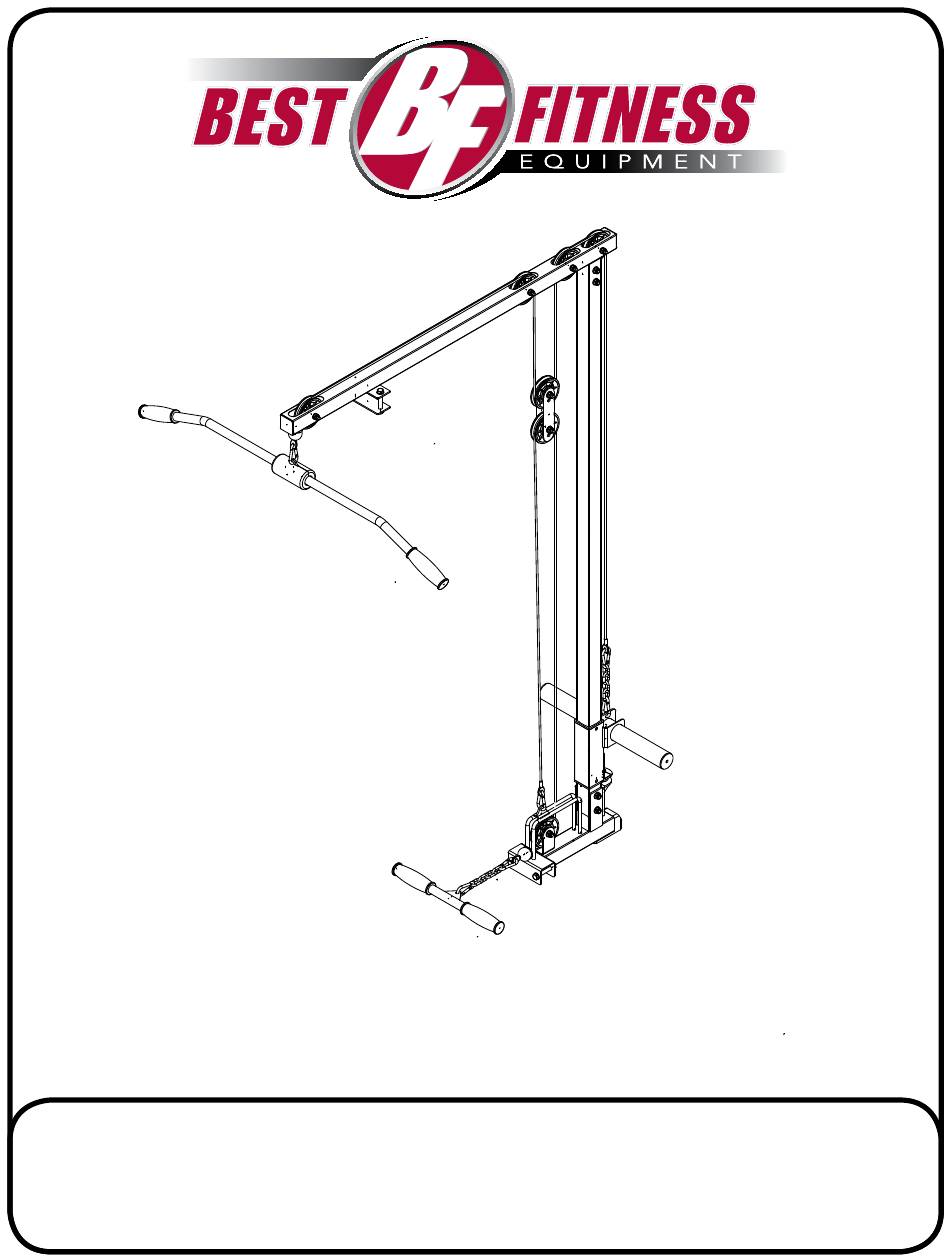

- Page 1 V. BFLA250-20220613 BFLA250 O w n e r ’ s M A n u A L...
- Page 2 Do not allow children or minors to play on or around this equipment. If unsure of proper use of equipment, call your local Best Fitness distributor or the Best It is recommended that you workout with a training partner.
-
Page 3: Table Of Contents
tABLe OF cOntents • sAFety instructiOns ......PAge 4 • PrePArAtiOn ........... PAge 5 • PArts List ..........PAge 6 • HArDwAre List ......... PAge 7 • HArDwAre iLLustrAtiOn ......PAge 8 • AsseMBLy instructiOns ......PAge 10 • eXPLODeD View .. -
Page 4: Safety Instructions
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen fisico con su doctor. When using exercise equipment, you The BFLA250 is designed for your enjoyment. By should always take basic precautions, following these precautions and using common... -
Page 5: Preparation
PrePArAtiOn Thank you for purchasing the BFLA250. This machine is part of the Best Fitness line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly. -
Page 6: Parts List
BFLA250 - PArt List PArt# DescriPtiOn QuAntity BAse FrAMe 1 Pcs. cHrOMe uPrigHt 1 Pcs. weigHt cArriAge 1 Pcs. tOP FrAMe 1 Pcs. steeL BrAcKet 2 Pcs. PuLLey BrAcKet 2 Pcs. LAt BAr 1 Pcs. strAigHt BAr 1 Pcs. sPAcer 8 Pcs. -
Page 7: Hardware List
BFLA250 - HArDwAre List PArt# siZe DescriPtiOn QuAntity M10X35mm ButtOn HeAD cAP screw 1 Pcs. (Pre-instALLeD) M10X50mm HeX HeAD BOLt 3 Pcs. M10X65mm HeX HeAD BOLt 2 Pcs. M10X70mm HeX HeAD BOLt 4 Pcs. M10X75mm HeX HeAD BOLt 6 Pcs. -
Page 8: Hardware Illustration
HArDwAre iLLustrAtiOn Part #1 ButtOn HeAD cAP screw M10X35mm Qty. 1 Part #2 HeX HeAD BOLt M10X50mm Qty. 3 Part #3 HeX HeAD BOLt M10X65mm Qty. 2 Part #4 HeX HeAD BOLt M10X70mm Qty. 4 ... - Page 9 HArDwAre iLLustrAtiOn Part #5 HeX HeAD BOLt M10X75mm Qty. 6 Part #5 reguLAr wAsHer M10 Qty. 23 Part #6 nyLOn LOcK nut M10 Qty. 16 ...
-
Page 10: Assembly Instructions
s t e P Be careful to assemble all components in the sequence they are presented. nOte: Finger tighten all hardware first in this step. wrench tighten ALL hardware at the end of steP 1e. some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on. - Page 11 s t e P note: the cutout of chrome upright needs to face up. Above shows steP 1 assembled and completed.
- Page 12 s t e P Be careful to assemble all components in the sequence they are presented. nOte: Finger tighten all hardware first in this step. wrench tighten ALL hardware at the end of steP 2D. some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 13 s t e P Above shows steP 2 assembled and completed.
- Page 14 s t e P Be careful to assemble all components in the sequence they are presented. nOte: some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on. Attach Lat Bar (g) to cable (#17) at the top.
- Page 15 s t e P Above shows steP 3 assembled and completed.
-
Page 16: Exploded View
eXPLODeD View DiAgrAM... - Page 17 nOte...
-
Page 18: Contact Page
BFLA250 PLeAse write yOur seriAL nuMBer in tHe BOXes BeLOw 017177-��-��-����-���� s/n # 1900 S. Des Plaines Ave. Forest Park, Il 60130 1 (800) 556-3113 Hours: M-F 8:30 - 5:00 CST www.BestFitness.com Copyright 2003. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product.
