Summary of Contents for Best Fitness BFSM250

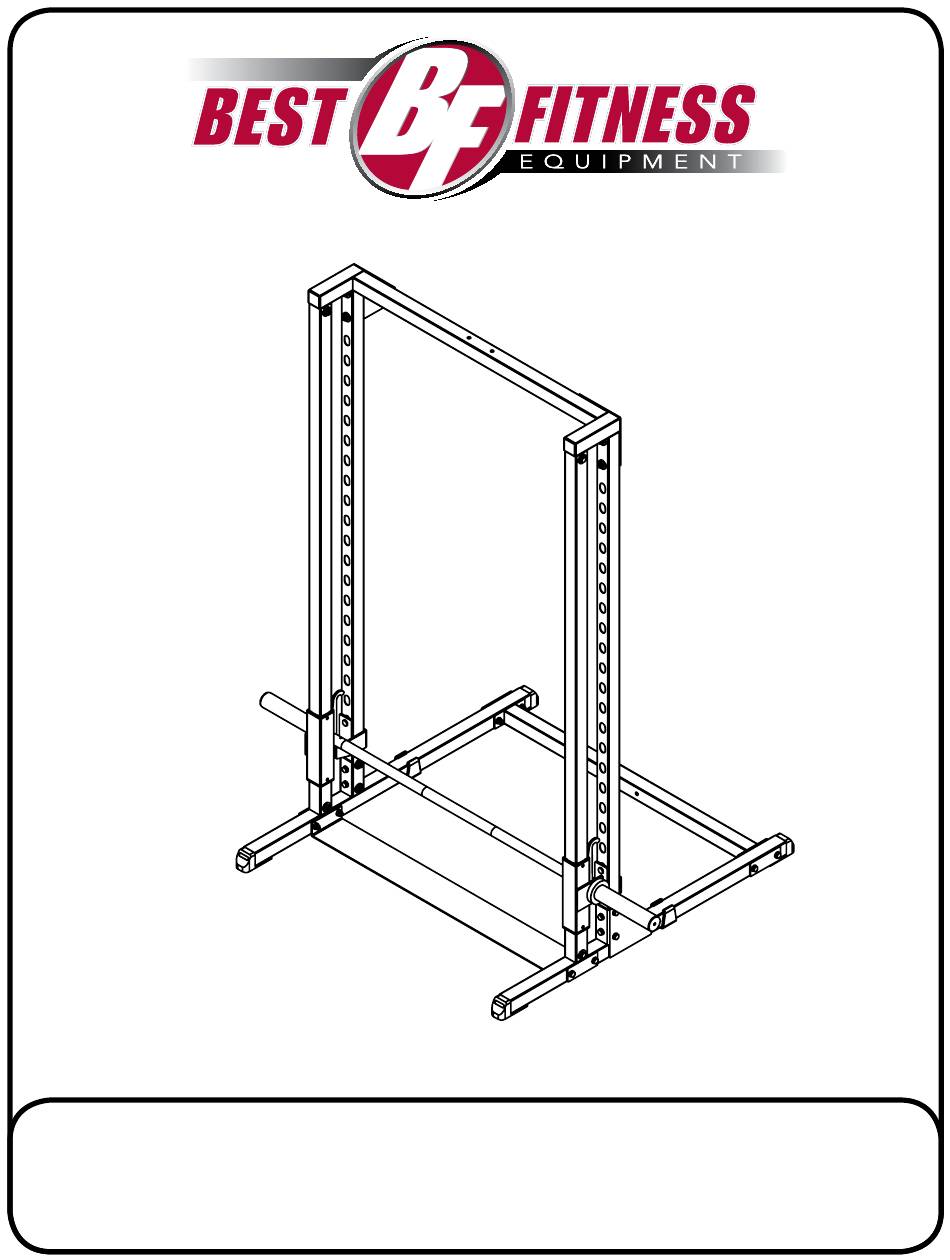

- Page 1 V. BFSM250-20220410 BFSM250 O w n e r ’ S M a n u a l...
- Page 2 It is recommended that you workout with a training partner. Do not allow children or minors to play on or around this equipment. If unsure of proper use of equipment, call your local Best Fitness distributor or the Best Fitness customer service center at 1-800-556-3113.
-
Page 3: Table Of Contents
taBle OF cOntentS • SaFety inStructiOnS ......Page 4 • PreParatiOn ........... Page 5 • PartS liSt ..........Page 6 • HarDware liSt ......... Page 7 • HarDware illuStratiOn ......Page 8 • aSSeMBly inStructiOnS ......Page 10 •... -
Page 4: Safety Instructions
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen fisico con su doctor. When using exercise equipment, you The BFSM250 is designed for your enjoyment. By should always take basic precautions, following these precautions and using common... -
Page 5: Preparation
PreParatiOn Thank you for purchasing the BFSM250. This machine is part of the Best Fitness line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly. -
Page 6: Parts List
BFSM250 - Part liSt Part# DeScriPtiOn Quantity rigHt BaSe FraMe 1 PcS. leFt BaSe FraMe 1 PcS. FOOtPlate 1 PcS. rear BaSe FraMe 1 PcS. cHrOMe uPrigHt 2 PcS. rear uPrigHt 2 PcS. Steel BracKet 4 PcS. leFt SaFety catcH 1 PcS. -
Page 7: Hardware List
BFSM250 - HarDware liSt Part# SiZe DeScriPtiOn Quantity M10X65mm HeX HeaD BOlt 4 PcS. M10X70mm HeX HeaD BOlt 12 PcS. M10X75mm HeX HeaD BOlt 8 PcS. regular waSHer 32 PcS. large waSHer 16 PcS. nylOn lOcK nut 24 PcS. Part numbers are required when ordering parts. -
Page 8: Hardware Illustration
HarDware illuStratiOn Part #1 HeX HeaD BOlt M10X65mm Qty. 4 Part #2 HeX HeaD BOlt M10X70mm Qty. 12 Part #3 HeX HeaD BOlt M10X75mm Qty. 8 ... - Page 9 HarDware illuStratiOn Part #5 large waSHer M10 Qty. 16 Part #6 nylOn lOcK nut M10 Qty. 24 ...
-
Page 10: Assembly Instructions
S t e P Be careful to assemble all components in the sequence they are presented. nOte: Finger tighten all hardware in this step. DO nOt wrench tighten until the last step. Some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on. - Page 11 S t e P above shows SteP 1 assembled and completed.
- Page 12 S t e P Be careful to assemble all components in the sequence they are presented. nOte: Finger tighten all hardware in this step. DO nOt wrench tighten until the last step. Some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 13 S t e P above shows SteP 2 assembled and completed.
- Page 14 S t e P Be careful to assemble all components in the sequence they are presented. nOte: Finger tighten all hardware first in this step. wrench tighten all hardware at the end of SteP 3a. Some components may be pre-assembled. nylon lock nuts will not fully screw onto bolts, they must be wrench tighten to fully go on.
- Page 15 S t e P above shows SteP 3 assembled and completed. iMPOrtant nOte #1: to make sure weight Bar (K) sliding up and down properly, please lubricate the chrome uprights (e) with silicone spray lubricant. iMPOrtant nOte #2: add lubrication oil inside the weight bar (K) if needed. lubricating Holes are located on both sides of the weight bar.
-
Page 16: Exploded View
eXPlODeD View DiagraM... - Page 17 nOte...
-
Page 18: Contact Page
BFSM250 PleaSe write yOur Serial nuMBer in tHe BOXeS BelOw 017184-��-��-����-���� S/n # 1900 S. Des Plaines Ave. Forest Park, Il 60130 1 (800) 556-3113 Hours: M-F 8:30 - 5:00 CST www.BestFitness.com Copyright 2003. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specifications when we feel it will improve the product.
