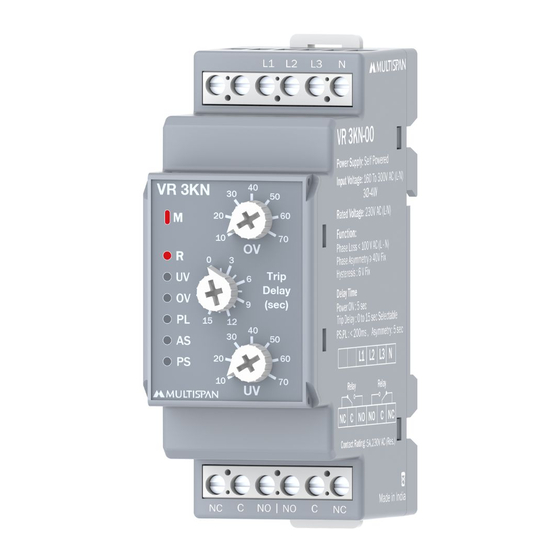

Voltage Protection Relay
VR-3KN
Power Supply :
Input Voltage :
Rated Voltage :
Output:
Tripping Parameters :
Reset Mode :
Self power
160 to 300V AC ( L- N ) 3Ø -4W
230V AC ( L- N )
1 Relay 2C/O ,5A 230V AC Resistive load
Auto

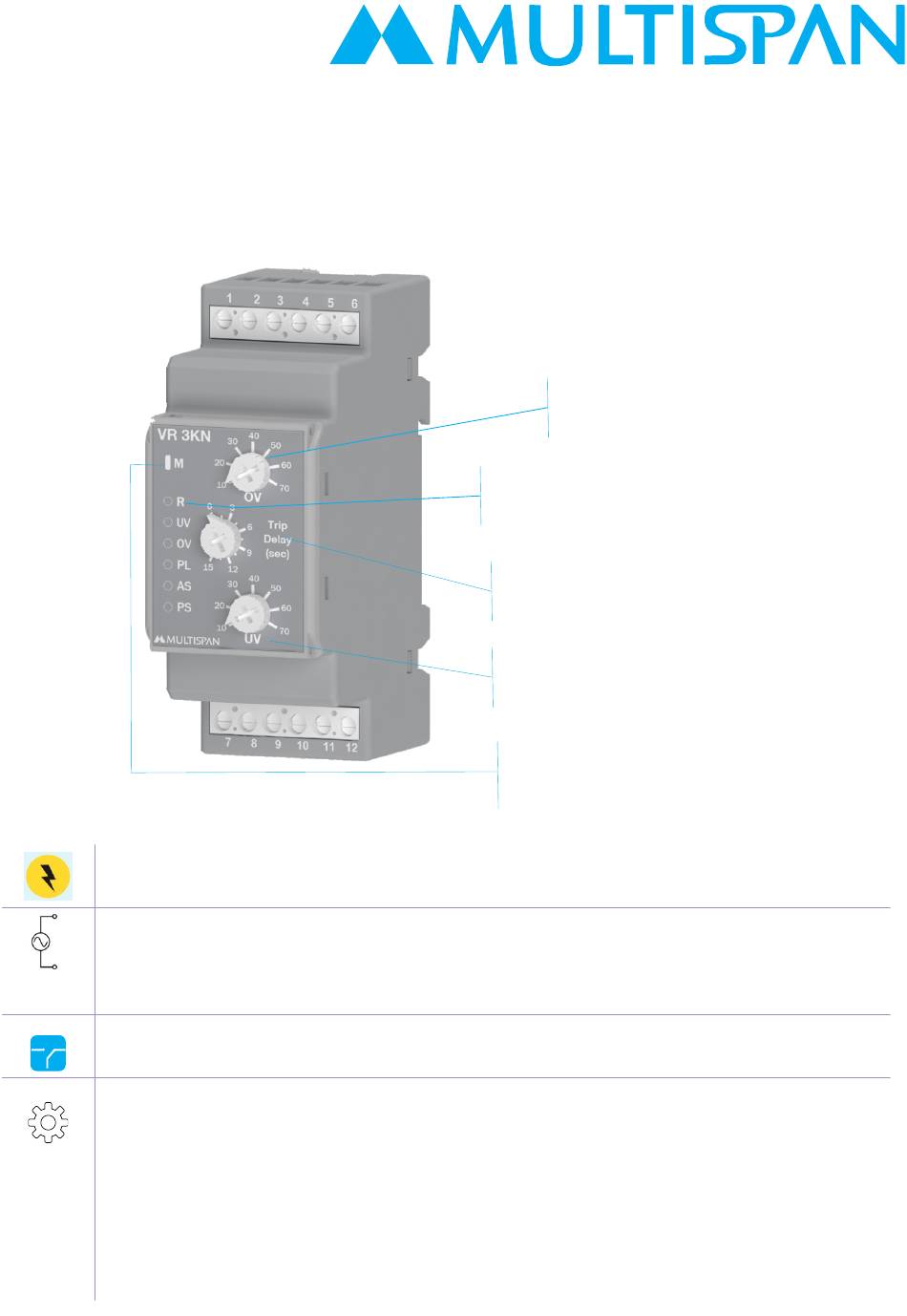

OVER VOLTAGE KNOB
RELAY STATUS LED
TRIP DELAY KNOB
UNDER VOLTGAE KNOB
MAIN LED
for visualisation of power
supply status
Under voltage
Over voltage
Phase asymmetry
Phase sequence
Phase loss
Advertisement
Related Manuals for MULTISPAN VR-3KN
Summary of Contents for MULTISPAN VR-3KN
- Page 1 Voltage Protection Relay VR-3KN OVER VOLTAGE KNOB RELAY STATUS LED TRIP DELAY KNOB UNDER VOLTGAE KNOB MAIN LED for visualisation of power supply status Power Supply : Self power Input Voltage : 160 to 300V AC ( L- N ) 3Ø -4W...
- Page 2 Terminal Connection: VR-3KN Delay Time : Power ON Delay: 5 Sec. 160 To 300V AC (L-N) Trip Delay : 0 to 15 Sec Selectable ø (For OV & UV) Trip Delay : <200ms (For PS & PL) 230V AC (L-N)
- Page 3 62.20 Dimension 35.00 59.20 SAFETY PRECAUTION All safety related codifications, symbols and instructions that appear in this operating manual or on the equipment must be strictly followed to ensure the safety of the operating personnel as well as the instrument. If all the equipment is not handled in a manner specified by the manufacturer, it might impair the protection provided by the equipment.
- Page 4 5) Do not connect anything to unused terminals. Multispan reserves the right to change specifications without prior notice.Printing and typographical errors reserved. Product improvement and upgrade is a constant procedure.
