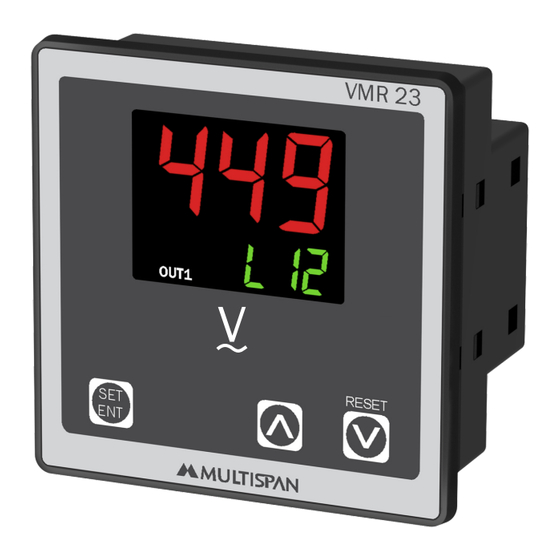

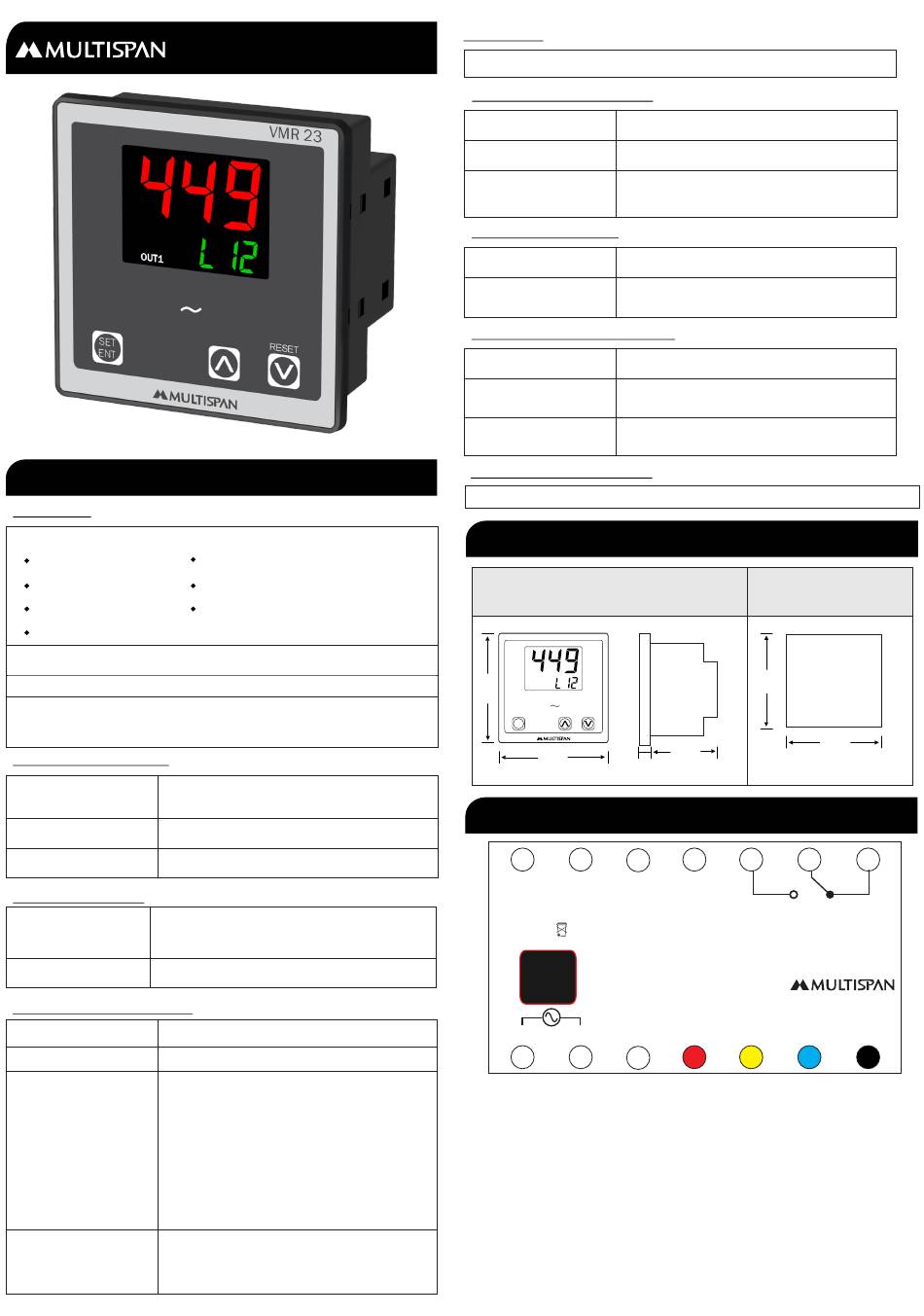

MULTISPAN VMR 23 Installation Manuallines

V
TECHNICAL SPECIFICATION
FEATURES :
Protection Available
Over Voltage
Under Voltage
Over Frequency
Under Frequency
4 digit bright LED display, Auto/ Manual/ ZVR Reset Option
Network Selection 3Ø-3W/3Ø-4W/1Ø-2W
Time parameter: Power on delay, Trip delay
Recovery time ( Auto Reset )
INPUT SPECIFICATION :
50 to 300V AC (L - N) 3Ø-4W/
Direct Voltage AC
85 to 520V AC (L - L) 3Ø-3W
45.0 Hz to 65.0 Hz
Frequency
1 Volt
Resolution
DISPLAY AND KEY :
Upper: 3 digit, 7 segment, 0.63"
Display
Lower: 3 digit, 7 segment, 0.30"
Keys SET/ENT, INC, DEC/RESET
GENERAL SPECIFICATION :
Dimension (mm) 72 (H) x 72 (W) x 45 (D) mm
Panel Cutout 68 (H) x 68 (W) mm
Under Voltage : 85-520V AC 3Ø-3W
Trip Setting
Over Voltage : 85-550V AC 3Ø-3W
Under Frequency : 45.0 Hz To 65.0 Hz
Over Frequency : 45.0 Hz To 65.0 Hz
Phase Asymmetry : 2-30%
Power ON Delay Time : 0 To 99 Sec.
Time Parameter
Trip delay Time : 0 To 999 Sec.
Recovery Time : 0 To 99 Sec.
VOLTAGE MONITORING RELAY
VMR 23
Asymmetry
Phase Loss
Phase Sequence
1Ø-2W
50-300V AC 3Ø-4W/1Ø-2W
50-330V AC 3Ø4W/1Ø2W
ACCURACY
Class 1.0 (Standard)
OUTPUT SPECIFICATION :
Relay 1 nos.
Relay Type 1 C/O (NO-C-NC)
Relay 10A, 230V AC
Rating
AUXILIARY SUPPLY :
Supply voltage
50 to 520V AC,50Hz
Power consumption
4VA
(VA RATING)
ENVIRONMENT CONDITION :
Operating Temp. 0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001
NETWORK CONNECTION :
3Ø-3W/3Ø-4W/1Ø-2W
MECHANICAL INSTALLATION
Outline Dimension (mm)
VMR 23
72
OUT1
V
RESET
SET
ENT
72
TERMINAL CONNECTION
14 13
12
Range
Voltage (L-L) : 50-520V AC
Made in India
~
50V
520V AC
50/60 Hz
4VA
A1 A2
1 2
3
Panel Cutout
Dimension (mm)
68
45
3
11 10 9
NO C
RELAY
System:
(L-N) : 30-300V AC
3Ph-4W/3Ph-3W/1P-2W
www.multispanindia.com
L1 L2 L3
4 5
6
68
8
NC
N
7
