FEATURES
1.5KV isolation between supply, input &
output
Linearized O/P
Zero & span correction facility through
trim port
Fast Response time <150ms
Din Rail Mounting
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
4- 20 mA DC
<100
Input Inpedance
CMRR
>120dp (Typical)
Temperature
<100
Co-efficient
DIMENSION:
76 X 27 X 85
Size (HxWxD) mm

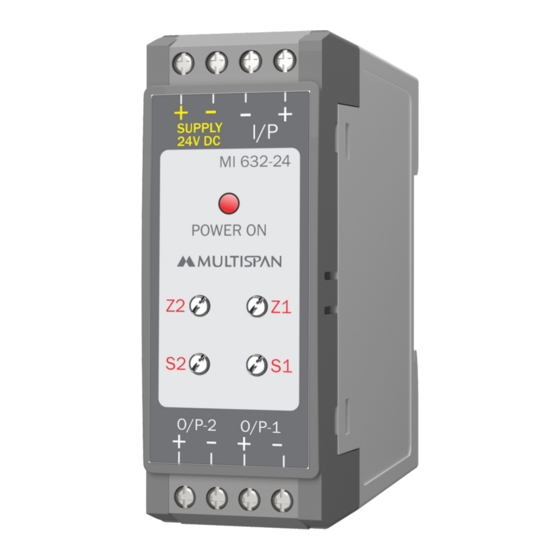

SIGNAL ISOLATOR
MI-632-24
Ω
PPM
OUTPUT SPECIFICATION:
Output 1 & 2
Response Type
Output Inpedance
POWER SUPPLY:
Auxiliary Voltage
Power Consumption
( VA Rating )
ISOLATION:
Isolation Type
Isolation between
supply, input & Output
MECHANICAL INSTALLATION
Front view (mm)
27
SUPPLY
I/P
24V DC
MI 632-24
76
Z2
Z1
S2
S1
O/P-2
O/P-1
TERMINAL CONNECTION
MI 632-24-A-AA
Supply
24V DC, 3VA
!
SUPPLY
24V DC
Z2
S2
O/P-2
Output 2
4 To 20mA DC
www.multispanindia.com
4 to 20mA DC
<150ms
Ω
<500
24 V DC
3VA
Optical - 3 way
At least 1.5KV AC for 1 min
Side view (mm)
85
76
Input
4 To 20mA DC
I/P
MI 632-24
Z1
S1
O/P-1
Output 1
4 To 20mA DC
Made in India
Advertisement
Related Manuals for MULTISPAN MI-632-24
Summary of Contents for MULTISPAN MI-632-24
- Page 1 OUTPUT SPECIFICATION: SIGNAL ISOLATOR MI-632-24 Output 1 & 2 4 to 20mA DC Response Type <150ms Output Inpedance Ω <500 POWER SUPPLY: Auxiliary Voltage 24 V DC Power Consumption ( VA Rating ) ISOLATION: Isolation Type Optical - 3 way Isolation between At least 1.5KV AC for 1 min...
- Page 2 SAFETY PRECAUTION MECHANICAL INSTALLATION GUIDELINES 1) To install the instrument on a DIN rail, raise the clamp at All safety related codifications, symbols and instructions the back of the instrument and place it on the rail. Now tha appear in this operating manual or on the equipment must release the clamp, so the instrument fits on the DIN rail.
