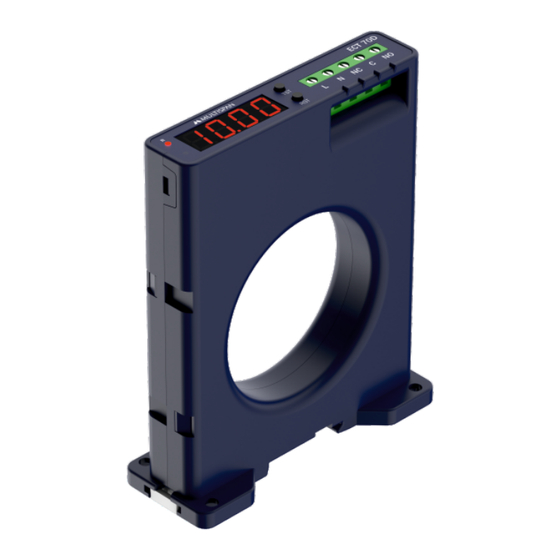

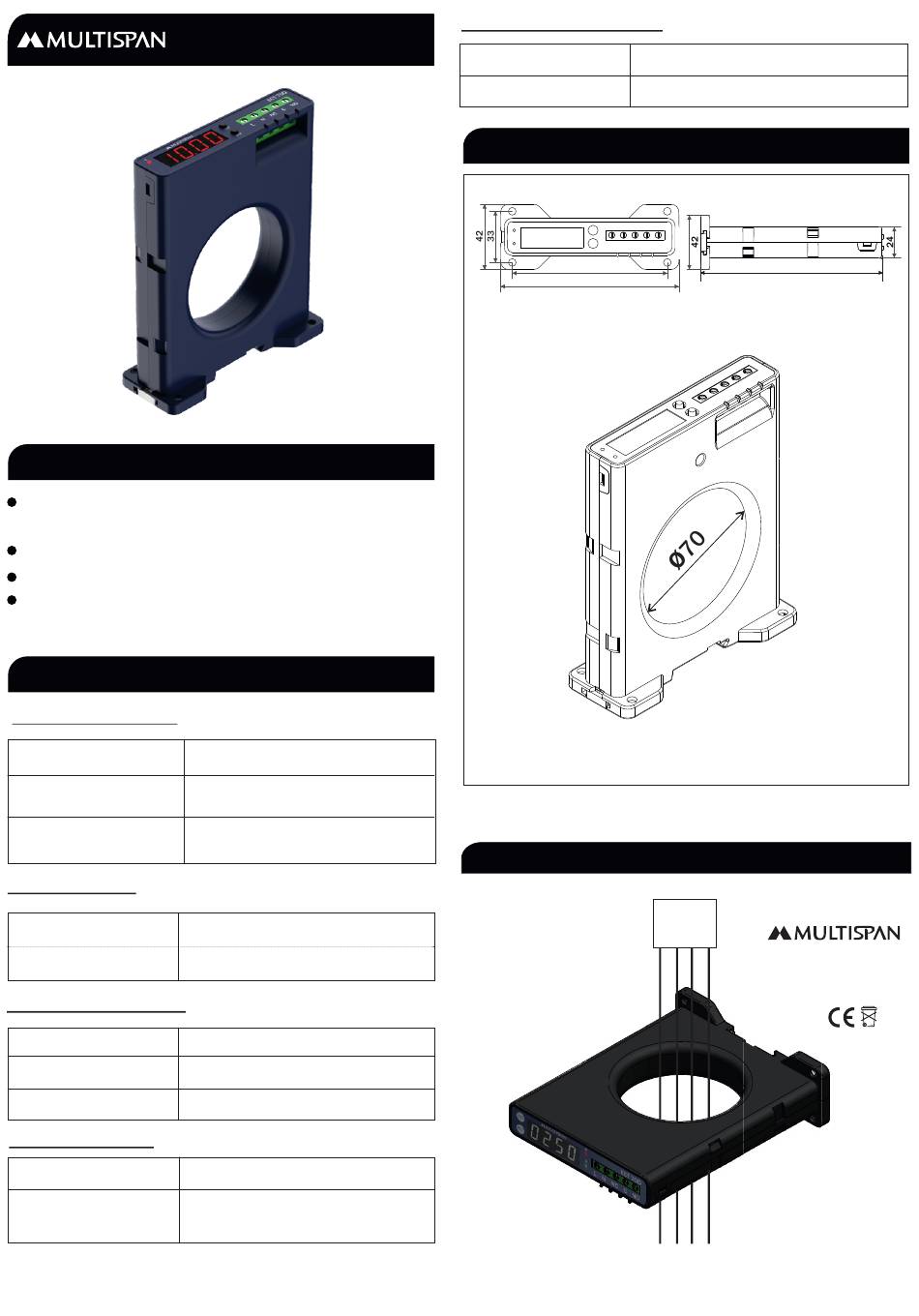

MULTISPAN ECT-70D Manual

Earth Leakage Current Monitoring In 1Ø - 2W, 3Ø-3W
And 3Ø-4W System
Test Mode Available.
Auto/Manual Tripping Reset Facility.
Test/Trip Reset Via Front Key
TECHNICAL SPECIFICATION
INPUT SPECIFICATION :
Input Current
Display Current Range
Resolution
DISPLAY & KEYS :
Display
Keys
OUTPUT SPECIFICATION :
Relay
Relay Type
Rating
AUXILIARY SUPPLY :
Supply Voltage
Power Consumption
(VA Rating)
Earth Leakage Relay
FEATURE
0.030 To 30.00 A AC in CBCT
0.030A To 30.00 Amp
If Current in mA = 0.001 mA
If Current in 10 Amp Above = 0.01A
4 Digit, 7 Seg., 0.34", Red.
Test , Rst
1 Nos.
NO - C- NC
5A,230V AC Resistive Load
100 To 270V AC/DC
3VA @ 250V AC MAX
ENVIRONMENT CONDITION :
ECT-70D
Operating Temp.
Relative Humidity
FRONT VIEW
All dimensions are in mm
ISOMETRIC VIEW
0 - 55°C
95% RH
MECHANICAL DIMENSION
100
115
TERMINAL CONNECTION
TO
LOAD
141
RIGHT SIDE VIEW
www.multispanindia.com
Made in India
