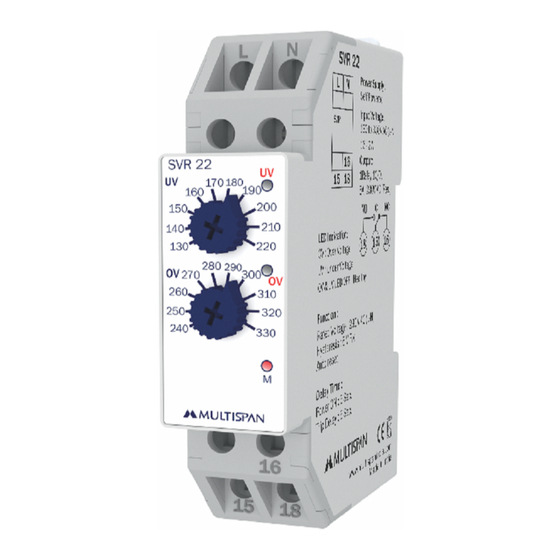

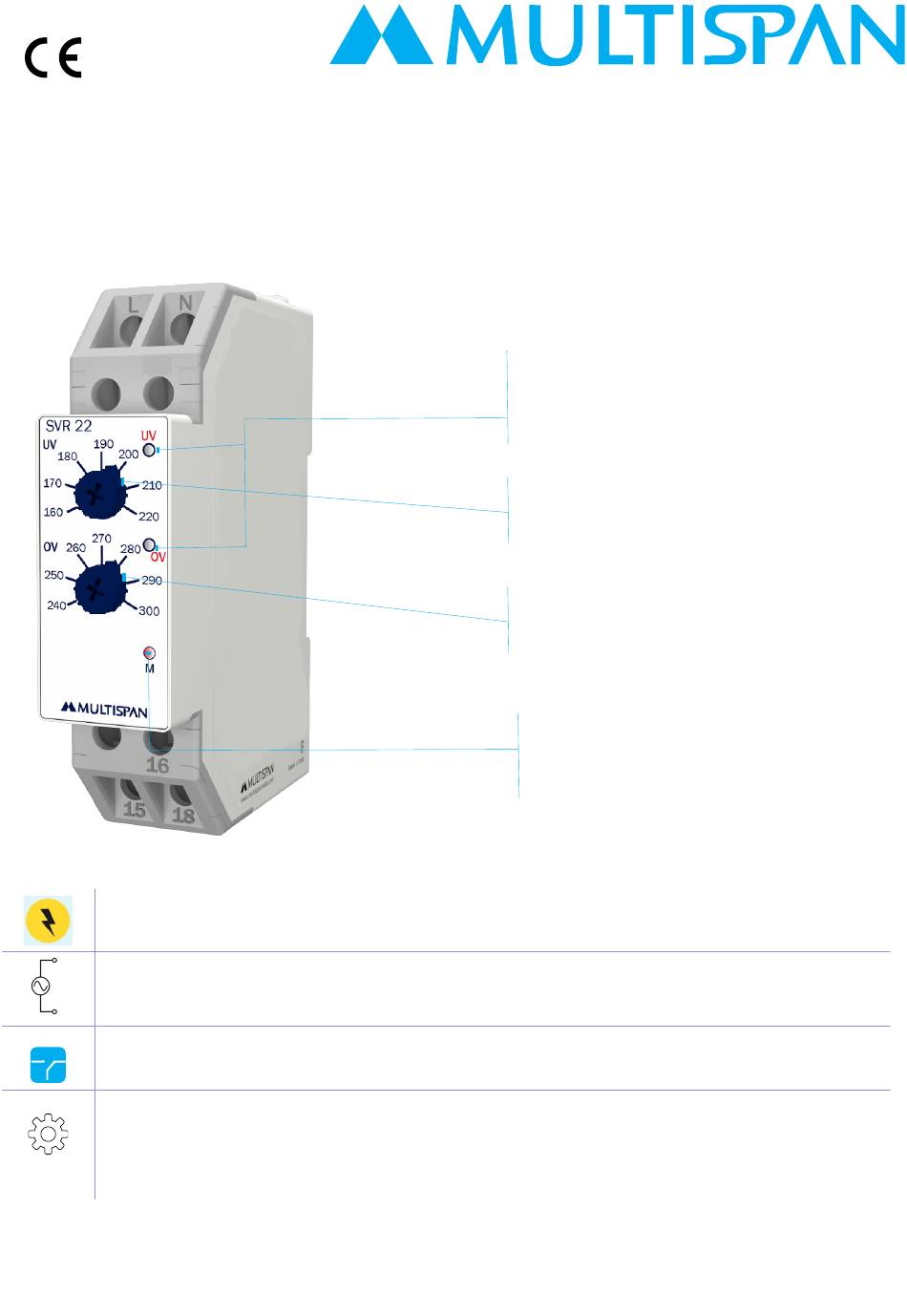

Single Phase Voltage Relay
SVR-22
Power Supply :
Input Voltage :
Output:
Tripping Parameters :
Self powered
160 to 300V AC ( L- N ) 1Ø -2W,50/60Hz
1 Relay 1C/O ,5A, 230V AC Resistive load
FAULT INDICATION LED
for under voltage, over voltage,
UNDER VOLTAGE KNOB
OVER VOLTAGE KNOB
MAIN LED
for visualisation of power
supply status
Under voltage
Over voltage
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MULTISPAN SVR-22
Summary of Contents for MULTISPAN SVR-22
- Page 1 Single Phase Voltage Relay SVR-22 FAULT INDICATION LED for under voltage, over voltage, UNDER VOLTAGE KNOB OVER VOLTAGE KNOB MAIN LED for visualisation of power supply status Power Supply : Self powered Input Voltage : 160 to 300V AC ( L- N ) 1Ø -2W,50/60Hz...
- Page 2 Terminal Connection: Power Supply : Delay Time : Trip Delay: 5 Sec. Self Powered Power ON Delay: 5 Sec. Input Voltage: 160 to 300V AC (L-N) 1Ø - 2W, 50/60Hz Output : 1 Relay 1C/O , 5A, 230V AC (Res.) LED Indication: OV - Over Voltage UV - Under Voltage...
- Page 3 Dimension 22.5 NOTE: All dimension are in mm. 66.35 SAFETY PRECAUTION All safety related codifications, symbols and instructions that appear in this operating manual or on the equipment must be strictly followed to ensure the safety of the operating personnel as well as the instrument. If all the equipment is not handled in a manner specified by the manufacturer, it might impair the protection provided by the equipment.
- Page 4 5) Do not connect anything to unused terminals. Multispan reserves the right to change specifications without prior notice.Printing and typographical errors reserved. Product improvement and upgrade is a constant procedure.
