MULTISPAN VMR 13 Manual

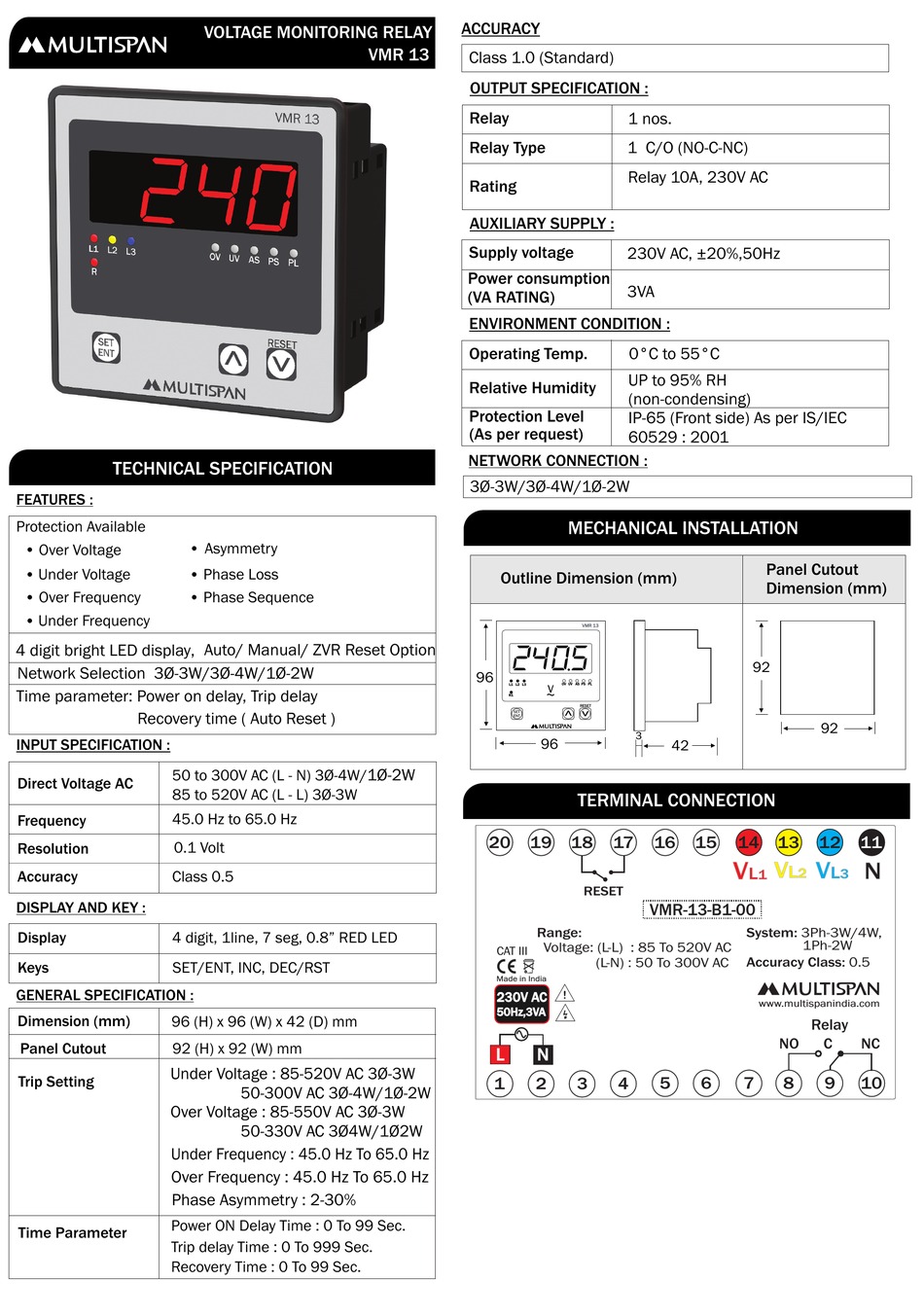

TECHNICAL SPECIFICATION
FEATURES :
Protection Available
Over Voltage
Under Voltage
Over Frequency
Under Frequency
4 digit bright LED display, Auto/ Manual/ ZVR Reset Option
Network Selection 3Ø-3W/3Ø-4W/1Ø-2W
Time parameter: Power on delay, Trip delay
Recovery time ( Auto Reset )
INPUT SPECIFICATION :
50 to 300V AC (L - N) 3Ø-4W/
Direct Voltage AC
85 to 520V AC (L - L) 3Ø-3W
45.0 Hz to 65.0 Hz
Frequency
0.1 Volt
Resolution
Accuracy
Class 0.5
DISPLAY AND KEY :
Display 4 digit, 1line, 7 seg, 0.8" RED LED
Keys SET/ENT, INC, DEC/RST
GENERAL SPECIFICATION :
Dimension (mm)
96 (H) x 96 (W) x 42 (D) mm
Panel Cutout 92 (H) x 92 (W) mm
Under Voltage : 85-520V AC 3Ø-3W
Trip Setting
Over Voltage : 85-550V AC 3Ø-3W
Under Frequency : 45.0 Hz To 65.0 Hz
Over Frequency : 45.0 Hz To 65.0 Hz
Phase Asymmetry : 2-30%
Power ON Delay Time : 0 To 99 Sec.
Time Parameter
Trip delay Time : 0 To 999 Sec.
Recovery Time : 0 To 99 Sec.

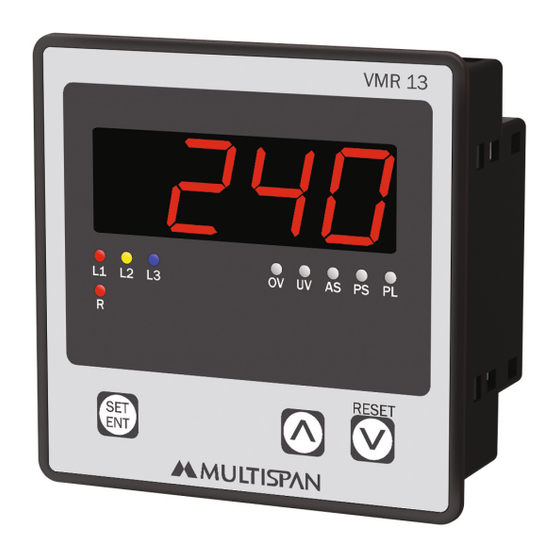

VOLTAGE MONITORING RELAY
VMR 13
Asymmetry
Phase Loss
Phase Sequence
1Ø-2W
50-300V AC 3Ø-4W/1Ø-2W
50-330V AC 3Ø4W/1Ø2W
ACCURACY
Class 1.0 (Standard)
OUTPUT SPECIFICATION :
Relay 1 nos.
Relay Type 1 C/O (NO-C-NC)
Relay 10A, 230V AC
Rating
AUXILIARY SUPPLY :
Supply voltage
230V AC, ±20%,50Hz
Power consumption
3VA
(VA RATING)
ENVIRONMENT CONDITION :
Operating Temp. 0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001
NETWORK CONNECTION :
3Ø-3W/3Ø-4W/1Ø-2W
MECHANICAL INSTALLATION
Outline Dimension (mm)
VMR 13
2405
96
OV UV AS PS PL
L1 L2 L3
R1
RESET
3
96
TERMINAL CONNECTION
20 19 18 17
RESET
Range:
Voltage: (L-L) : 85 To 520V AC
CAT III
(L-N) : 50 To 300V AC
Made in India
!
230V AC
50Hz,3VA
L N
1 2 3 4
Panel Cutout
Dimension (mm)
92
92
42
16 15 14 13 12
V
V V
L
L 2
1
VMR-13-B1-00
System: 3Ph-3W/4W,
1Ph-2W
Accuracy Class: 0.5
www.multispanindia.com
Relay
NO C
5 6 7 8
11
N
L
3
NC
9
10
