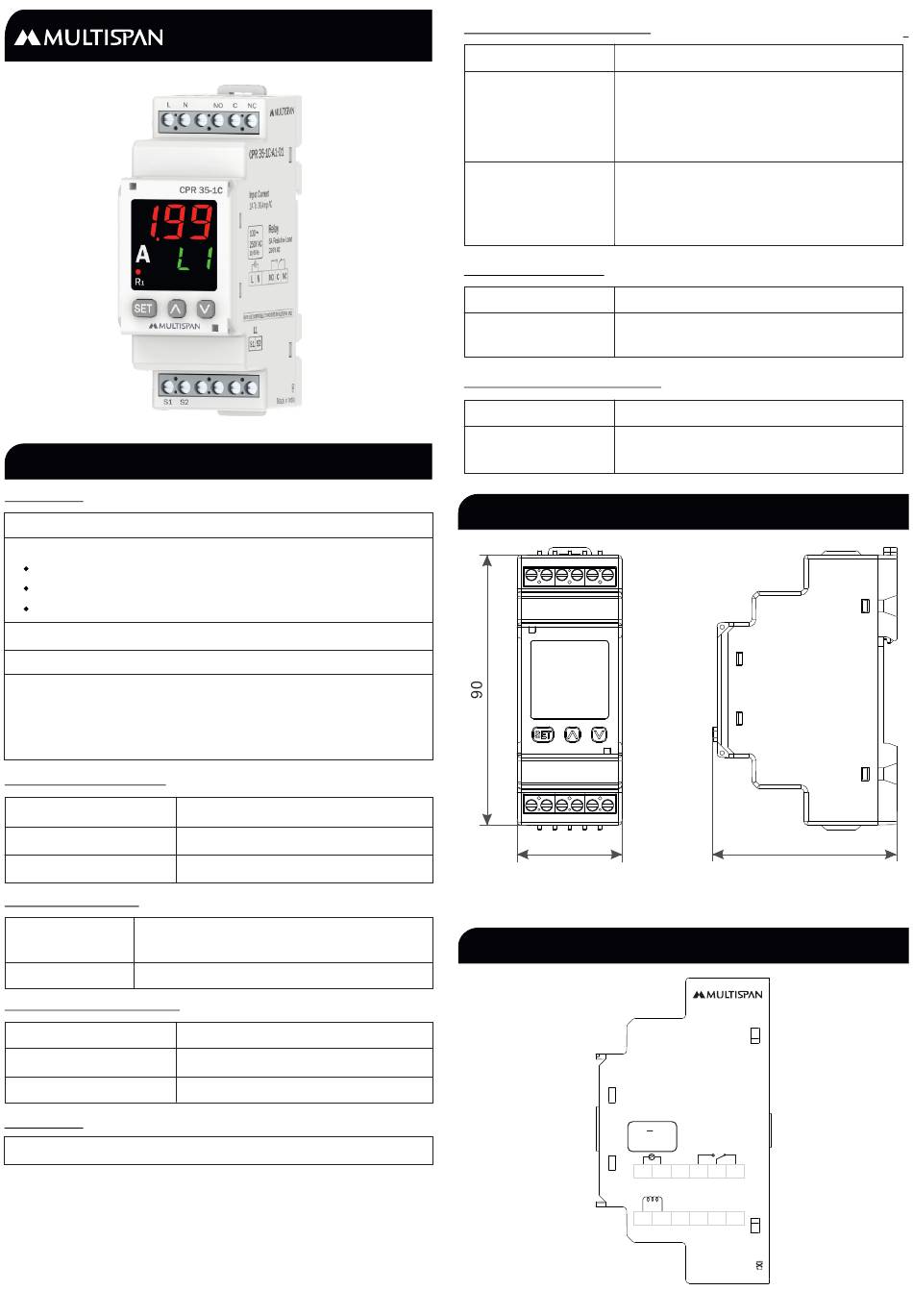

MULTISPAN CPR 35-1C Quick Start Manual

TECHNICAL SPECIFICATION
FEATURES:
True RMS Measurement
Protection available
Over Current
Under Current
Phase Loss
Auto/Manual /ZVR (Zero Value Reset) reset option
Auto save out feature
Time parameter : Power on delay
Trip delay
Initial time delay
Recovery time (Auto reset / ZVR)
INPUT SPECIFICATION:
Primary CT value
Secondary current AC
Resolution
DISPLAY AND KEY:
UPPER : 3 Digit 7 Seg 0.4"
Display
LOWER : 3 Digit 7 Seg 0.28"
Keys SET, INC, DEC/ RST
OUTPUT SPECIFICATION:
Relay
Relay Type
Rating
ACCURACY
Class 1.0 (Standard)
CURRENT PROTECTION RELAY
CPR 35-1C
5 to 999 Selectable
0.05 to 5 Amp AC
0.01A, 0.1A, 1A
1 nos.
1 C/O (NO-C-NC)
5A, 250V AC/30 V DC
GENERAL SPECIFICATION:
Dimension (mm)
90 (H) x 35 (W) x 61.5 (D) mm
Under current : 0.00 to 100% of
primary C.T value
Trip Setting
Over current : 0.00 - 120% of
primary C.T value
Trip delay time : 0 to 999 sec
Power on time : 0 to 99 sec
Time parameter
Initial time delay : 0 to 99 sec
Recovery time : 0 to 99 sec
AUXILIARY SUPPLY:
Supply voltage 100 to 270V AC/DC, 50-60Hz
Power consumption
3 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION:
Operating Temp. 0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
MECHANICAL INSTALLATION
CPR-35-1C
35
FRONT VIEW
All dimensions are in mm
TERMINAL CONNECTION
CPR 35 1C E3 00
Input Current
50mA To 5Amp AC
CT Primary: 5 To 999 Amp AC
CT Secondary: 5 Amp AC
100
270V AC/DC
50/60 Hz
61.5
RIGHT SIDE VIEW
- - -
Selectable
Relay
~
5A Resistive Load
230V AC
L N NO C NC
L1
S1 S2
Made in India
