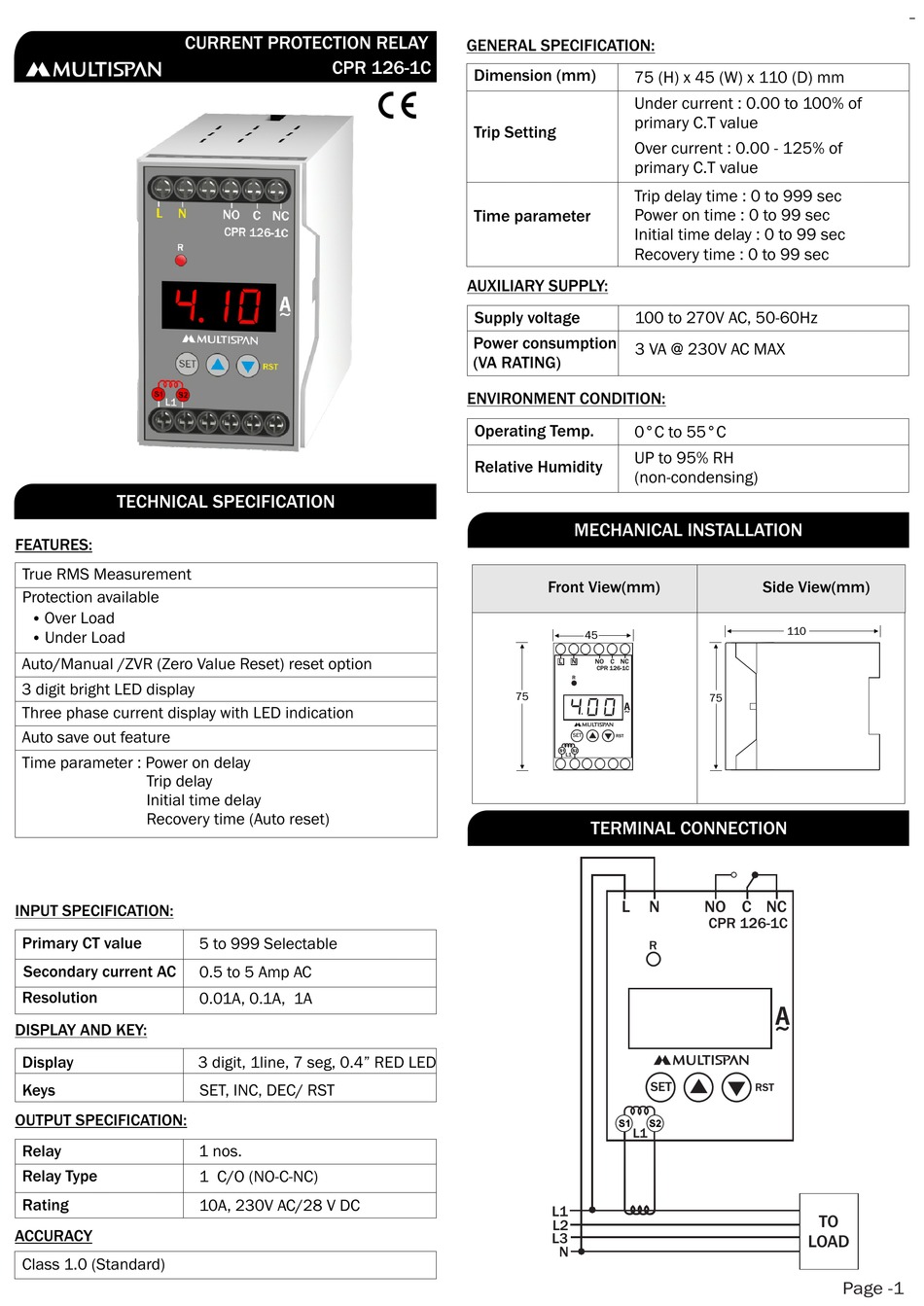

MULTISPAN CPR 126-1C Manual

CURRENT PROTECTION RELAY
TECHNICAL SPECIFICATION
FEATURES:
True RMS Measurement
Protection available
Over Load
Under Load
Auto/Manual /ZVR (Zero Value Reset) reset option
3 digit bright LED display
Three phase current display with LED indication
Auto save out feature
Time parameter : Power on delay
Trip delay
Initial time delay
Recovery time (Auto reset)
INPUT SPECIFICATION:
Primary CT value
Secondary current AC
Resolution
DISPLAY AND KEY:
Display
Keys
OUTPUT SPECIFICATION:
Relay
Relay Type
Rating
ACCURACY
Class 1.0 (Standard)

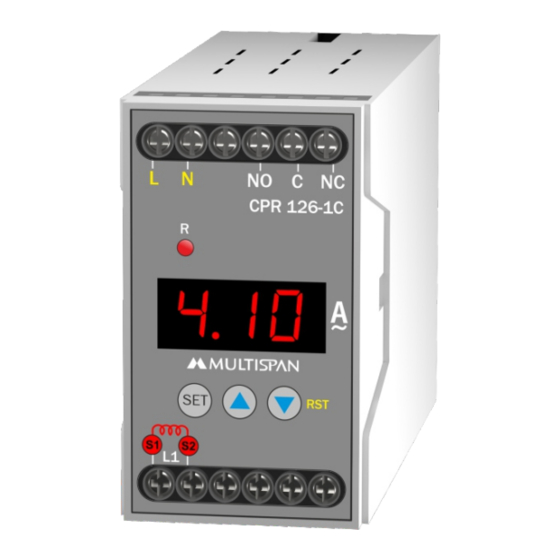

CPR 126-1C
5 to 999 Selectable
0.5 to 5 Amp AC
0.01A, 0.1A, 1A
3 digit, 1line, 7 seg, 0.4" RED LED
SET, INC, DEC/ RST
1 nos.
1 C/O (NO-C-NC)
10A, 230V AC/28 V DC
GENERAL SPECIFICATION:
Dimension (mm)
75 (H) x 45 (W) x 110 (D) mm
Under current : 0.00 to 100% of
primary C.T value
Trip Setting
Over current : 0.00 - 125% of
primary C.T value
Trip delay time : 0 to 999 sec
Power on time : 0 to 99 sec
Time parameter
Initial time delay : 0 to 99 sec
Recovery time : 0 to 99 sec
AUXILIARY SUPPLY:
Supply voltage 100 to 270V AC, 50-60Hz
Power consumption
3 VA @ 230V AC MAX
(VA RATING)
ENVIRONMENT CONDITION:
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
MECHANICAL INSTALLATION
Front View(mm)
45
L N C NC
NO
CPR 126-1C
R
75
4 0 0
A
SET
TERMINAL CONNECTION
L
L1
L2
L3
N
Side View(mm)
110
75
N NO C NC
CPR 126-1C
R
A
SET
TO
LOAD
Page -1
