CrimeStopper SP-500 Installation Handbook

Alarm combo system
Hide thumbs Also See for SP-500:
Table of Contents

Advertisement

Quick Links

SP-500 Alarm Combo System

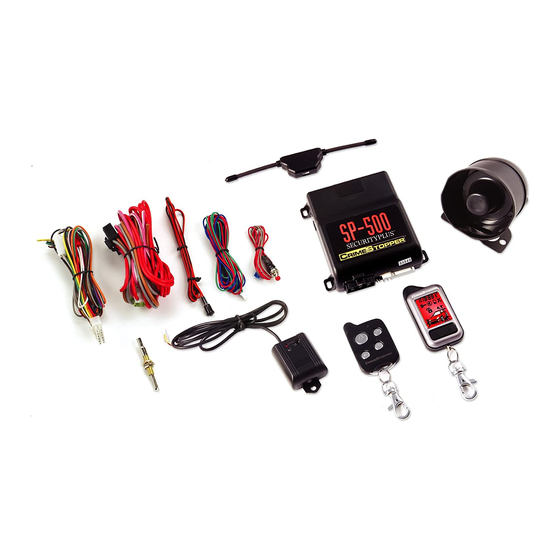

Congratulations on your choice of a Crimestopper combination alarm & remote engine starter with Data Port
Technology
This installation book is designed for the installer or individual with an existing understanding of
automotive electrical systems, along with the ability to test and connect wires for proper operation. To ease
installation, we suggest that you READ THIS MANUAL before beginning your installation. This book is
provided as a GENERAL GUIDELINE and the information contained herein may differ from your vehicle.
DISCLAIMER:
Crimestopper Security Products, Inc. and its vendors shall not be liable for any accident resulting from the
use of this product. This system is designed to be professionally installed into a vehicle in which all
systems and associated components are in perfect working condition.
TECHNICAL SUPPORT (800)-998-6880
Monday - Friday 8:00am - 4:30pm Pacific Time
Website: www.crimestopper.com
CRIMESTOPPER SECURITY PRODUCTS, INC.
1770 S. TAPO STREET
SIMI VALLEY, CA. 93063
REV 12.2008
INSTALLATION HANDBOOK:
INTRODUCTION
This device complies with FCC Rules part 15. Operation is
subject to the following two conditions: 1) This device may not
cause interference, and (2) this device must accept any
interference that may be received, including interference that
may cause undesired operation.
responsible for any radio or TV interference caused by
unauthorized
modification
modification could void the user's authority to operate the
equipment.
The manufacturer is not
to
this
equipment.
Such
