CrimeStopper SP-302 Operating Instructions Manual

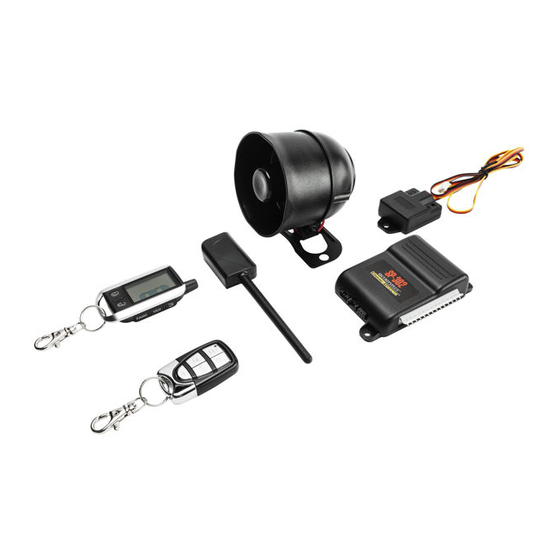

2-way paging alarm system
Hide thumbs Also See for SP-302:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
CONGRATULATIONS on your choice of a Remote Alarm System by Crimestopper Security Products Inc. This
booklet contains the information necessary for installing, using, and maintaining your alarm system. If any
questions arise, contact your installation dealer or Crimestopper Security Products Inc. at the Tech Support
number below.
*IMPORTANT INFORMATION: Primary and Optional Features:
-PRIMARY: These are features that must be connected in order for the system to operate properly; i.e. the
Siren, L.E.D., +12V Power, Ground, Door pin, Flashing lights Override/Program/Valet Button etc.
-OPTIONAL: These are features to be connected if desired or agreed upon by the installing dealer. These
features may also require additional parts and/or labor fees. Consult with your installer beforehand; i.e. Door
Locks, Starter disable, Hood/Trunk trigger, and Auxiliary Remote Outputs etc.
This installation book is designed for the installer or individual with an existing understanding of automotive
electrical systems, along with the ability to test and connect wires for proper operation. To ease installation, we
suggest that you READ THIS MANUAL before beginning your installation. This book is provided as a GENERAL
GUIDLINE and the information contained herein may differ from your vehicle.
TECH SUPPORT
Mon-Fri 8:00 AM-4:30 PM Pacific Time
(800) 998-6880
REV.
10-2012
SP-302
2-WAY PAGING ALARM SYSTEM

OPERATING INSTRUCTIONS

INTRODUCTION
This device complies with FCC Rules part 15. Operation is subject to
the following two conditions: 1) This device may not cause interference,
and (2) this device must accept any interference that may be received,
including interference that may cause undesired operation.
manufacturer is not responsible for any radio or TV interference caused
by unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
The

Advertisement

Table of Contents
loading

Related Manuals for CrimeStopper SP-302

Summary of Contents for CrimeStopper SP-302

  • Page 1: Operating Instructions

    OPERATING INSTRUCTIONS INTRODUCTION CONGRATULATIONS on your choice of a Remote Alarm System by Crimestopper Security Products Inc. This booklet contains the information necessary for installing, using, and maintaining your alarm system. If any questions arise, contact your installation dealer or Crimestopper Security Products Inc. at the Tech Support number below.

  • Page 2: Table Of Contents

    Data Port Interface…………………………………………………………………………………………………..…16 OPERATION CAUTIONS & WARNINGS CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting from the use of this equipment. This system is designed to be professionally installed into a car or vehicle in good running order.

  • Page 3: Using The 2-Way

    USING THE 2-WAY PAGER TRANSMITTER SIDE BUTTONS LCD SCREEN ICONS Valet Mode (Tools) Transmit Signal Battery Life TRUNK Hood Open Ignition ON RELEASE Sensor Warning Lock/Unlock (Small Hammer) (Arm/Disarm) Sensor Trigger VEHICLE (Big Hammer) Silent no beeps SELECT Door Open CLOCK / Trunk Open Run Count Down...

  • Page 4: Setting The Clock And Beep Or Vibrate Selection

    USING THE 2-WAY PAGER TRANSMITTER The 2-Way LCD Pager remote transceiver is used to send and receive information from the vehicle. The Control Module transmits High Frequency FM signals from the vehicle to your pager over long distances. Your range will vary depending on location, terrain, and local RF noise/interference.
  • Page 5 REMOTE BEEP & VIBRATE SELECTION The LCD pager remote BEEPS and VIBRATES when it receives a signal from the vehicle. The Beeps and Vibration are selectable (on/off). To enter program mode, 1. Press VEH Button on the side of the remote control 5 times. 2.

  • Page 6: 1-Way Sidekick And Battery Replacement

    1-WAY SIDEKICK The 1-Way sidekick remote adds flexibility to your system. You can have the convenience of operating your system without needing to carry the larger pager remote. The Sidekick remote has less range and offers all of the same operation features except for page-back confirmation. The 1-Way Sidekick Remote uses three CR- 2016 Lithium 3 Volt Batteries.

  • Page 7: Quick Chart Button Functions

    QUICK CHART BUTTON FUNCTIONS Button Button Button Options Button Button Functions Button Options Functions Selects between Press and Hold for Lock Doors & Arm Press Twice for Horn Vehicle #1 and 2 seconds. LED System Honk Confirmation Vehicle #2 Changes Color Press Twice for Press and Hold for Unlock Doors &...
  • Page 8 OPERATION INSTRUCTIONS ARMING To arm the alarm and lock the doors, press the Lock button on the transmitter. You will hear a single siren chirp and the lights will flash once. The system will arm, the doors will lock and the starter will be disabled if these optional features are installed.

  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS REMOTE PANIC PROTECTION To sound the alarm upon command (panic), press and hold the Panic Button for at least 2 seconds until the siren sounds. Press the Unlock Button to reset panic mode. IGNITION-CONTROLLED DOOR LOCKS: (Programmable Option # 13) The doors will automatically lock when the ignition is turned on and will unlock when the ignition is turned off.
  • Page 10 OPERATING INSTRUCTIONS EMERGENCY OVERRIDE / DISARM If you have lost the transmitter or it stops working for any reason and the Alarm is armed, you will have to open the door with the key, which will activate the alarm. Turn the ignition on and press the override/program button for about 5 seconds (until siren stops).
  • Page 11 OPERATING INSTRUCTIONS ARM / DISARM using OEM REMOTE (Requires databus module) This option allows the OEM factory remote to Arm and Disarm the alarm system when you lock and unlock the doors. This feature only works on newer CANBUS vehicle using a Data Module that supports this feature. Default = Off.

  • Page 12: Alarm Trigger Diagnostics

    ALARM TRIGGER DIAGNOSTICS PRIOR INTRUSION ALERT If the system was triggered in your absence, the dash LED will be flashing rapidly. When the system is disarmed you will hear 3 chirps and 3 light flashes. Carefully inspect your vehicle to see if there is any damage or a theft has occurred.

  • Page 13: Carjack Protection

    CARJACK PROTECTION ACTIVE CARJACK: Option 17-1 Active Carjack is armed only thru the remote. While the Ignition is on, press and hold the Panic button for 3 seconds. The parking lights will flash 2 times and the LED will begin to flash rapidly to confirm the beginning of a Carjack countdown.

  • Page 14: Transmitter Programming

    TRANSMITTER PROGRAMMING NOTE: All transmitters must be learned at the time of programming. This system can learn up to 4 remotes. 1. Turn key to the ON position and press program button 4 times. 2. After a short delay, the unit will flash the parking lights 4 times, Siren 4 times, Horn 4 times and status LED will be on solid.

  • Page 15: Vehicle Programming

    2 VEHICLE OPERATION 2 VEHICLE CONTROL Your remotes have the ability to control a second vehicle with a Crimestopper system installed. To set up the 2-Vehicle operation you must first program your remotes to Vehicle #2. Follow the “Transmitter Programming” steps (Pg. 17) at the second vehicle and learn YOUR remote, along with vehicle #2’s existing remotes.

  • Page 16: Data Port Interface

    Databus modules are used to communicate with the vehicles computer at the OBD2 Data connector or Canbus wires. This reduces installation error. Crimestopper Systems with DP Series have a direct Data Port Plug-In for the Databus bypass module. This eliminates conventional wiring between the Alarm/Remote Starter and the bypass interface module.
