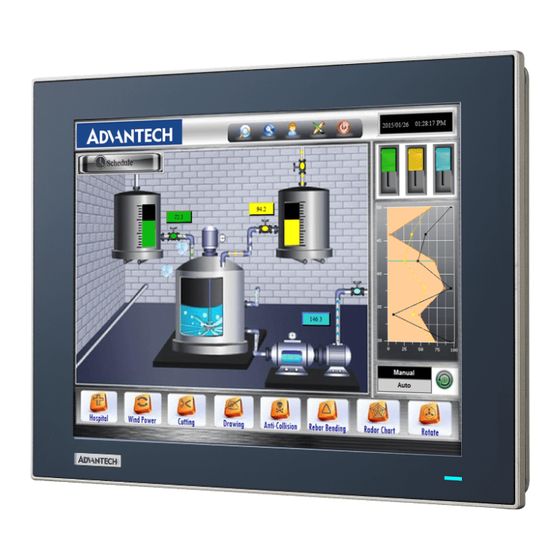

Advantech TPC-300 Elkhart Lake Series User Manual

Industrial touch panel computer with intel® elkhart lake atom™/ celeron® processor

Advertisement

Quick Links

User Manual
TPC-300 Elkhart Lake
Series
Industrial Touch Panel Computer with
®
®
Intel
Elkhart Lake Atom™/ Celeron
Processor

Advertisement

Table of Contents
loading

Summary of Contents for Advantech TPC-300 Elkhart Lake Series

  • Page 1 User Manual TPC-300 Elkhart Lake Series Industrial Touch Panel Computer with ® ® Intel Elkhart Lake Atom™/ Celeron Processor...
  • Page 2 Note 2: "○" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝-〞係指該項限用物質為排除項目。 Note 3: The "?" indicates that the restricted substance corresponds to the exemption. TPC-300 Elkhart Lake Series User Manual...
  • Page 3 Note 2: "○" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝-〞係指該項限用物質為排除項目。 Note 3: The "?" indicates that the restricted substance corresponds to the exemption. TPC-300 Elkhart Lake Series User Manual...
  • Page 4 Note 2: "○" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝-〞係指該項限用物質為排除項目。 Note 3: The "?" indicates that the restricted substance corresponds to the exemption. TPC-300 Elkhart Lake Series User Manual...
  • Page 5 Note 2: "○" indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考3.〝-〞係指該項限用物質為排除項目。 Note 3: The "?" indicates that the restricted substance corresponds to the exemption. TPC-300 Elkhart Lake Series User Manual...
  • Page 6 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 7 Product Warranty (2 years) Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or that have been sub- ject to misuse, abuse, accident, or improper installation.
  • Page 8 甲類警語 警告使用者:此為甲類資訊技術設備,於居住環境中使用時,可能會造成射頻擾動, 在此種情況下,使用者會被要求採取某些適當的對策。 Technical Support and Assistance Visit the Advantech website at www.advantech.com/support to obtain the latest product information. Contact your distributor, sales representative, or Advantech customer service center for technical support if you need additional assistance. Please have the following information ready before calling: –...
  • Page 9 In accordance with the IEC 704-1:1982 specifications, the sound pressure level at the operator’s position does not exceed 70 dB (A). TPC-300 Elkhart Lake Series User Manual...
  • Page 10 DISCLAIMER: These instructions are provided in accordance with IEC 704-1 specifications. Advantech disclaims all responsibility for the accuracy of any statements contained herein. Document Feedback To assist us with improving this manual, we welcome all comments and constructive criticism. Please send all feedback in writing to support@advantech.com.
  • Page 11: Table Of Contents

    Figure A.2 Board Placement - Bottom ........20 Table A.1: Connectors and Jumpers ......... 21 Jumper Settings, and Descriptions ............22 A.2.1 CMOS Clear Function (JCMOS1)..........22 Table A.2: CMOS Clear Function ..........22 A.2.2 AT/ATX Jumper Setting (PSON1)..........22 TPC-300 Elkhart Lake Series User Manual...
  • Page 12 A2001WV2-4P-6T-5E..........32 A.3.14 M.2 E key slot (M2E1 PCIE/USB2.0).......... 33 Table A.20:1654012663-01 NGFF 75P/0.5mm/(F)/LCP/RA/GFL/ S/BK/H8.5mm/E-key ..........33 Switch Setting ..................34 A.4.1 B-Key 5G Setting (SW3)............. 34 Table A.21:1654013260-01 Nano SIM Card 6P/1.27mm/(F)/LCP/ RA/GFL/S/BK/H1.5........... 34 TPC-300 Elkhart Lake Series User Manual...
  • Page 13: Chapter 1 General Information

    Chapter General Information...
  • Page 14: Introduction

    Introduction The TPC-300 Elkhart Lake series touch panel computers are human machine inter- ® faces (HMIs) equipped with an Intel Atom™ 6425E 2.00 GHz, quad core / Celeron J6412 2.00 GHz, quad core processor and feature displays that range from 12" to 23.8"...
  • Page 15: System Hardware

    3 x USB 3.2 – 1 x USB 2.0 – 1 x iDoor slot – 1 x Displayport (Video output) – 1 x Audio line out/ mic in – 1 x Remote Power Buttom TPC-300 Elkhart Lake Series User Manual...
  • Page 16: Lcd Panel

    Display Type: FHD TFT LED LCD  Display Size: 23.8” (16:9)  Max. Resolution: 1920x1080  Max. Color: 16.7M  Luminance (cd/m ): 350  Viewing Angle (H°/V°): 178°/178°  Backlight Life: 30,000 hrs  Contrast Ratio: 1000:1  TPC-300 Elkhart Lake Series User Manual...
  • Page 17: Touchscreen

    Operating Temperature: -20 ~ 60 °C/-4 ~ 140 °F (without airflow)  Storage Temperature: -30 ~ 70 °C/-22 ~ 158 °F  Vibration Protection: With SSD: 1 Grms (5 ~ 500 Hz) (operating, random)  TPC-300 Elkhart Lake Series User Manual...
  • Page 18: Operating Systems

    Windows 10  Android  AdvLinux  I/O Layout The I/O the layout for TPC-300 Elkhart Lake Series is shown in Figure 1.1. A. Default HDD/SSD Bay F. Display Port B. iDoor slot G. USB 3.2/2.0 C. RS-232/422/485 H. LAN (10/100/1000) D.
  • Page 19: Dimensions And Cutouts

    Dimensions (W x H x D): 311.8 x 238 x 67 mm/ 12.28 x 9.37 x 2.64 in  Cutout Dimensions (L x H): 303 x 229 mm/ 11.93 x 9.02 in  311.8 247.2 301.56 Figure 1.2 TPC-312 EHL Dimensions TPC-300 Elkhart Lake Series User Manual...
  • Page 20: Tpc-315 Ehl

    Dimensions (W x H x D): 383.2 x 307.3 x 67 mm/ 15.09 x 12.10 x 2.64 in  Cutout Dimensions (L x H): 374.5 x 298.5 mm/ 14.74 x 11.75 in  383.2 306.1 372.89 Figure 1.3 TPC-315 EHL Dimensions TPC-300 Elkhart Lake Series User Manual...
  • Page 21: Tpc-317 Ehl

    Dimensions (L x W x H): 410.4 x 343.4 x 68 mm/ 16.16 x 13.52 x 2.68 in  Cutout Dimensions (L x H): 401.3 x 334.8 mm/ 15.80 x 13.18 in  410.4 339.9 399.2 Figure 1.4 TPC-317 EHL Dimensions TPC-300 Elkhart Lake Series User Manual...
  • Page 22: Tpc-324W Ehl

    Dimensions (L x W x H): 595.9 x 374.1 x 70 mm/ 23.46 x 14.73 x 2.76 in  Cutout Dimensions (L x W): 587 x 365.3 mm/ 23.11 x 14.38 in  595.87 528.64 585.55 Figure 1.5 TPC-324W EHL Dimensions TPC-300 Elkhart Lake Series User Manual...
  • Page 23: Chapter 2 Installation

    Chapter Installation...
  • Page 24: Transport And Unpacking

    2.1.2 Unpacking Unpack the TPC device. Connect the power connector to the 24 V power lines of a power adapter or in-house power source. Figure 2.1 Power Connector and Power Lines TPC-300 Elkhart Lake Series User Manual...
  • Page 25: Panel Mounting

    Figure 2.2 Power Connector Plug the power lines into the system power receptor. Power on the system. Calibrate the touchscreen. Panel Mounting Position the TPC panel computer against the panel mount. Figure 2.3 Panel Mounting – Positioning TPC-300 Elkhart Lake Series User Manual...
  • Page 26 Secure the clamps in place using following suggested screws provided in the accessory box. TPC-312: M4*25L, Qty.8 PCS TPC-315: M4*25L, Qty.10 PCS TPC-317: M5*25L, Qty.10 PCS TPC-324W: M5*20L, Qty.14 PCS Torque: 5 kgf-cm (0.5 Nm) Figure 2.5 Panel Mounting – Clamp Fixing TPC-300 Elkhart Lake Series User Manual...
  • Page 27: Vesa Mounting

    VESA Mounting TPC-300 Elkhart Lake series support VESA mounting (100x100). M4 x 10L screws provided in the accessory box are recommended for attaching the TPC devices to the VESA mount bracket. Affix the VESA mount bracket at the top of the rear of the TPC device and fasten in place using following screws: TPC-312: M4*25L, Qty.8 PCS...
  • Page 28: Cabinet Installation

    Connect the ground pin of TPC device to the cabinet. Connect the I/O to the controller if needed. Connect the V+ and V- of the power supply to the TPC device. After completing the above steps, activate the power supply. TPC-300 Elkhart Lake Series User Manual...
  • Page 29 If a USB device or mini PCIe card is installed in the TPC device, double check the voltage between V- and earth/ground. If the voltage is not equal, short the V- and earth/ground wires. TPC-300 Elkhart Lake Series User Manual...
  • Page 30: Power/Digital Ground And Earth/Ground

    Use of a third-party device or cable can disrupt Level 1 isolation. In such circum- stances, users should short all grounds (Power GND/Digital GND/Earth GND) and ensure adequate earth/ground connection. TPC-300 Elkhart Lake Series User Manual...
  • Page 31: Appendix A Serial Port Settings

    Appendix Serial Port Settings...
  • Page 32: Jumper, Dip Switch, And Connector

    Jumper, Dip Switch, and Connector A.1.1 Board Layout Figure A.1 Board Placement - Top Figure A.2 Board Placement - Bottom TPC-300 Elkhart Lake Series User Manual...
  • Page 33 Connector COM1 COM2- RS232 COM3- RS232 reserved Connector COM2 (Reserved) COM4- RS232 reserved USB1 USB connector USB2 USB connector DIMMB1 DDR4 SODIMM PCN1 i-Door Power 24V M2E1 M.2 E key slot B-Key 5G Setting TPC-300 Elkhart Lake Series User Manual...
  • Page 34: Jumper Settings, And Descriptions

    Normal (1-2) Normal (2-3) Enable (Clear CMOS) A.2.2 AT/ATX Jumper Setting (PSON1) Table A.3: AT/ATX Function Description This jumper is used to select CMOS Clear Enable/Disable. Default (1-2) (2-3) (1-2) (1-2) AT (2-3) ATX TPC-300 Elkhart Lake Series User Manual...
  • Page 35: Connector Pin Definition

    Table A.4: 1654006275 DisplayPort Conn. 20P 1.40mm 90D DIP 3VD11203 Signal DP_TX 0(p) DP_TX 0(n) DP_TX 1(p) DP_TX 1(n) DP_TX 2(p) DP_TX 2(n) DP_TX 3(p) DP_TX 3(n) AUX_EN DP_config AUX_CH(p) AUX_CH(n) Hot Plug DP_PWR TPC-300 Elkhart Lake Series User Manual...
  • Page 36: Sata Power Connector (Cn8)

    +V5SATA SATA power output 5V/1A +V12SATA SATA power output 12V/0.5A A.3.3 SATA Connector (CN9) Table A.6: 1654013471-01 SATA 7P/1.27mm/(F)/NY46/VA/G15u/D/BK/ H8.45mm Signal Description Signal Pair A : TX+/- (Transmit) Signal Pair B : RX+/ (Receive) TPC-300 Elkhart Lake Series User Manual...
  • Page 37: Sim Connector (Cn10)

    A.3.4 SIM connector (CN10) Table A.7: 1654013260-01 Nano SIM Card 6P/1.27mm/(F)/LCP/RA/GFL/S/ BK/H1.5 Signal RESET DATA TPC-300 Elkhart Lake Series User Manual...
  • Page 38: M.2 B Key Slot (Cn11 Usb3.0/Sata)

    A.3.5 M.2 B key slot (CN11 USB3.0/SATA) Table A.8: 1654011348-01 NGFF 75P/0.5mm/(F)/LCP/RA/GFL/S/BK/ H8.50/B-key TPC-300 Elkhart Lake Series User Manual...
  • Page 39: Mini Pcie Slot (Cn12)

    Open Drain active Low signal. This signal is used to request that the system +3.3Vaux / PCI1.1 was +3.3V, WAKE# return from a sleep/sus- +3.3V PCI1.2 was +3.3Vaux pended state to service a function initiated wake event. TPC-300 Elkhart Lake Series User Manual...
  • Page 40: Lan Rj45 Connector (Cn13)

    In MDI and in MDI-X configuration, MDI[2]+/- corresponds to BI_DC+/- and MDI[3]+/- corresponds to BI_DD+/-. MDI3- 100BASE-TX: Unused. 10BASE-T: Unused. Table A.11: LED Left LED Right LED 10 Link 100 Link 1000 Link Active Orange Green Green TPC-300 Elkhart Lake Series User Manual...
  • Page 41: Audio Connectors (Cn14)

    Power IN V– (GND) The GND_EARTH to connect a Screw hole for GND_EARTH short with the chassis GND A.3.10Remote key connector (CN19) Table A.14: 1652000055 Terminal BLOCK 2P 3.5mm 90D(M) DIP Signal POWER BUTTON TPC-300 Elkhart Lake Series User Manual...
  • Page 42: Com2 Rs-232 Connector (Com2)

    COM2 RS-232 Connector (COM2) Table A.15: COM1 RS232/422/485 1653210260 BOX HEADER 10*2P 180D(M) 2.0mm SMD W/O Pb RS232 RS422 RS485 Data- Data+ Table A.16: COM2 RS232 1653210260 BOX HEADER 10*2P 180D(M) 2.0mm SMD W/O Pb RS232 RS232 TPC-300 Elkhart Lake Series User Manual...
  • Page 43: Usb Connector (Usb1, Usb2)

    USB Power output, USB3.0 5V/0.9A 2, 11 USB_P- USB2.0 date- 3, 12 USB_P+ USB2.0 date+ 4, 13 Ground for Power return SSRX- USB3.0 RX- SSRX+ USB3.0 RX+ GND_DRAIN Ground for signal return SSTX- USB3.0 TX- SSTX+ USB3.0 TX+ TPC-300 Elkhart Lake Series User Manual...
  • Page 44: I-Door Power 24V (Pcn1)

    A.3.13i-Door Power 24V (PCN1) Table A.19: 1653006812-01 WTB Con. 4P 2.0mm 180D(M) DIP A2001WV2-4P-6T-5E Description TPC-300 Elkhart Lake Series User Manual...
  • Page 45: M.2 E Key Slot (M2E1 Pcie/Usb2.0)

    A.3.14M.2 E key slot (M2E1 PCIE/USB2.0) Table A.20: 1654012663-01 NGFF 75P/0.5mm/(F)/LCP/RA/GFL/S/BK/ H8.5mm/E-key TPC-300 Elkhart Lake Series User Manual...
  • Page 46: Switch Setting

    Switch Setting A.4.1 B-Key 5G Setting (SW3) Table A.21: 1654013260-01 Nano SIM Card 6P/1.27mm/(F)/LCP/RA/GFL/ S/BK/H1.5 SIERA EM9190/9191 OFF(left) ON(right) PCIE PCIE AIW-315 5G model(USB3.0) Download mode 5G model(USB3.0) Download mode TPC-300 Elkhart Lake Series User Manual...
  • Page 47 TPC-300 Elkhart Lake Series User Manual...
  • Page 48 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
